Description
Description:

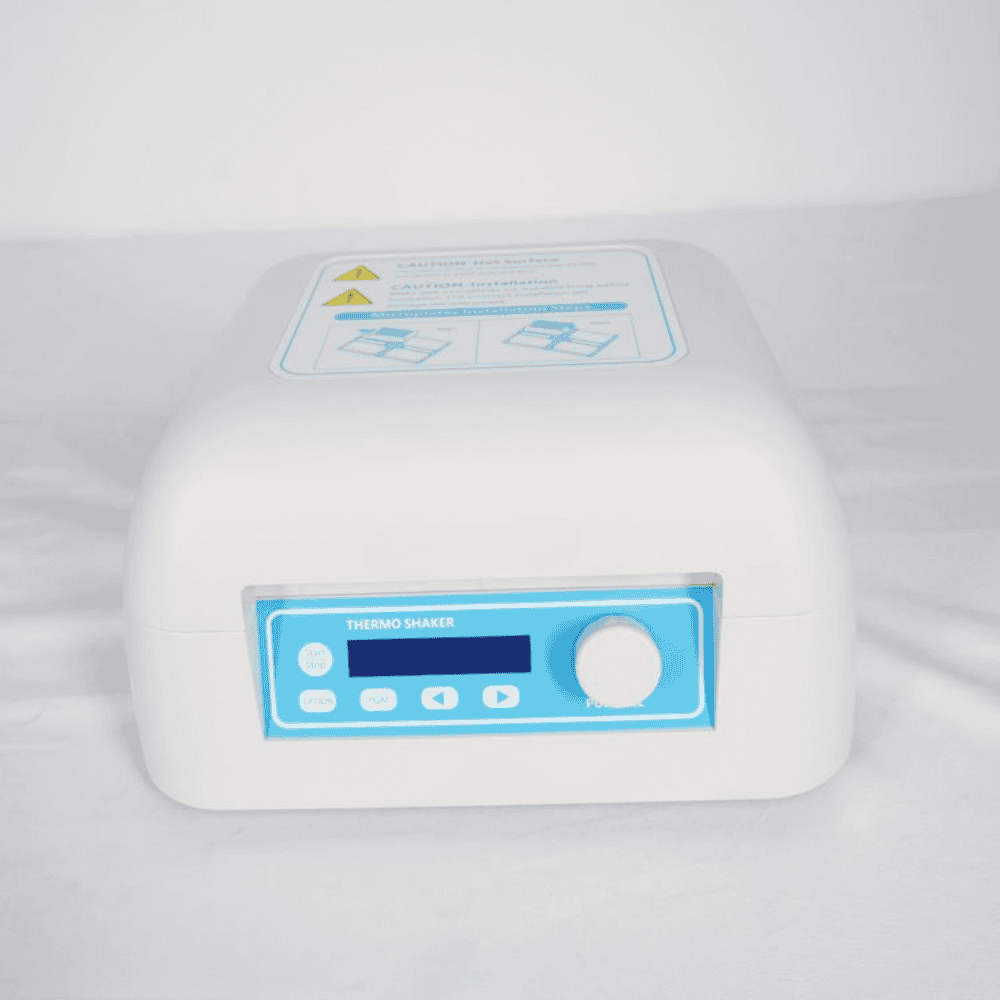

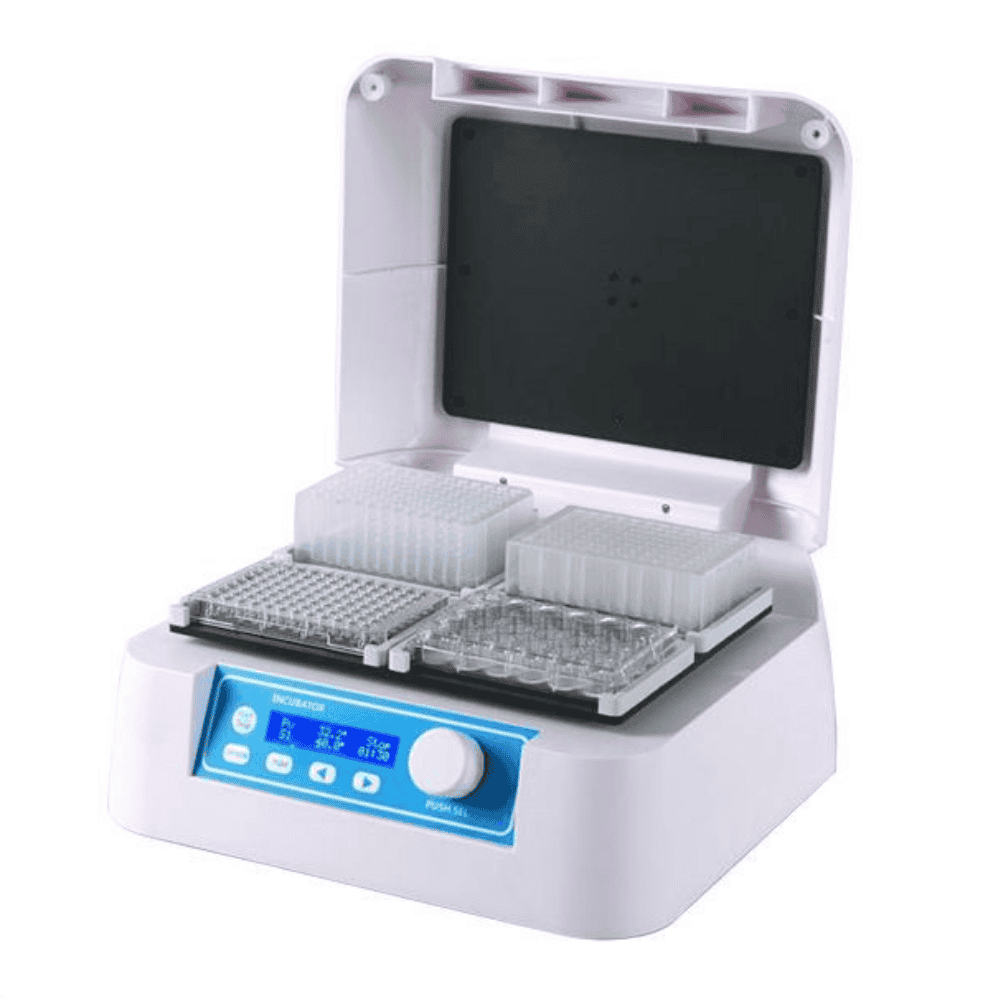

DBI-PR80-4 thermo shaker for microplates is a multipurpose thermostatic shaker controlled by a brushless DC motor and PID intelligent temperature control technology. Which PID fuzzy control technology can accurately ensure that the temperature control precision and automatically adjust the heating rate, reducing waiting time? DBI-PR80-4 combines constant temperature and oscillation perfectly together, greatly shortening the experimental operation time, which is the ideal automation tool for sample hatching, catalytic reaction process of preserving, blending, saving, etc.
Features:
1. Easy to set up and use, all information is displayed in a real-time display, showing setup operation, making it convenient to observe the equipment running status.
2. Support standard microplates and deep well plates.
3. Brushless DC motor, low noise, small interference, free maintenance.
4. Automatic preheating function.
5. Automatic power recovery function.
6. Temperature calibration function.
7. Built-in software and hardware over temperature protection device, will be more reliable.
SPECIFICATIONS
| Model | CA-DBI-PR80-4 |
| Temp. display range | 0℃~80℃ |
| Temp. control range | RT+5℃~80℃ |
| Time range | 1min ~ 99h59min/∞ |
| Temp. accuracy | ≤±0.5℃ |
| Display accuracy | 0.1℃ |
| Temp. uniformity | ≤±0.5℃ |
| Speed range | 200~1350rpm |
| Orbit | 3mm |
| Heating time | ≤10min(from 25℃ to 80℃) |
| Auto preheating | Yes |
| Auto resume to run | Yes |
| Capacity | 4 Microplates or Deepwell plates |
| Power consumption | 300W |
| Electricity | 220V or 110V AC /50-60HZ |
| Fuse | 250V 3A Ф5×20 |
| External dimension(mm)（W*D*H） | 320x340x200 |
| Net weight | 9.5kg |
