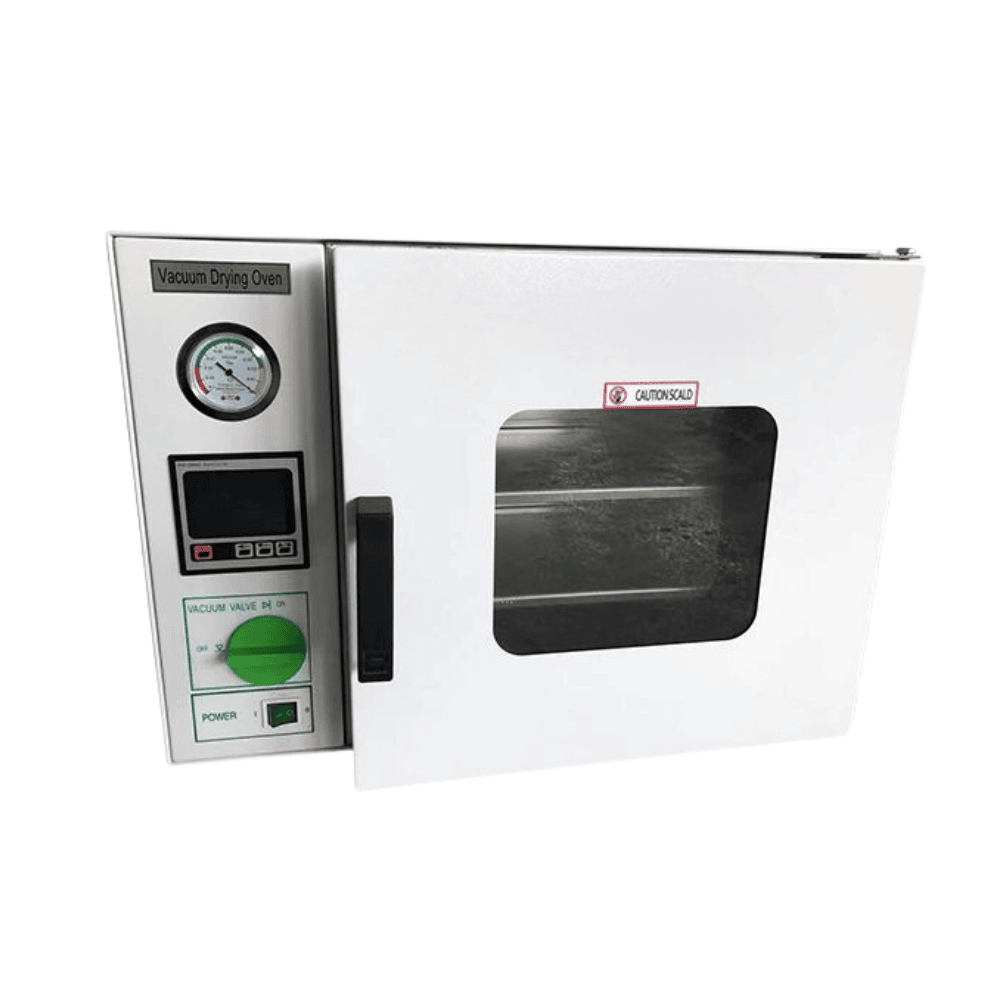

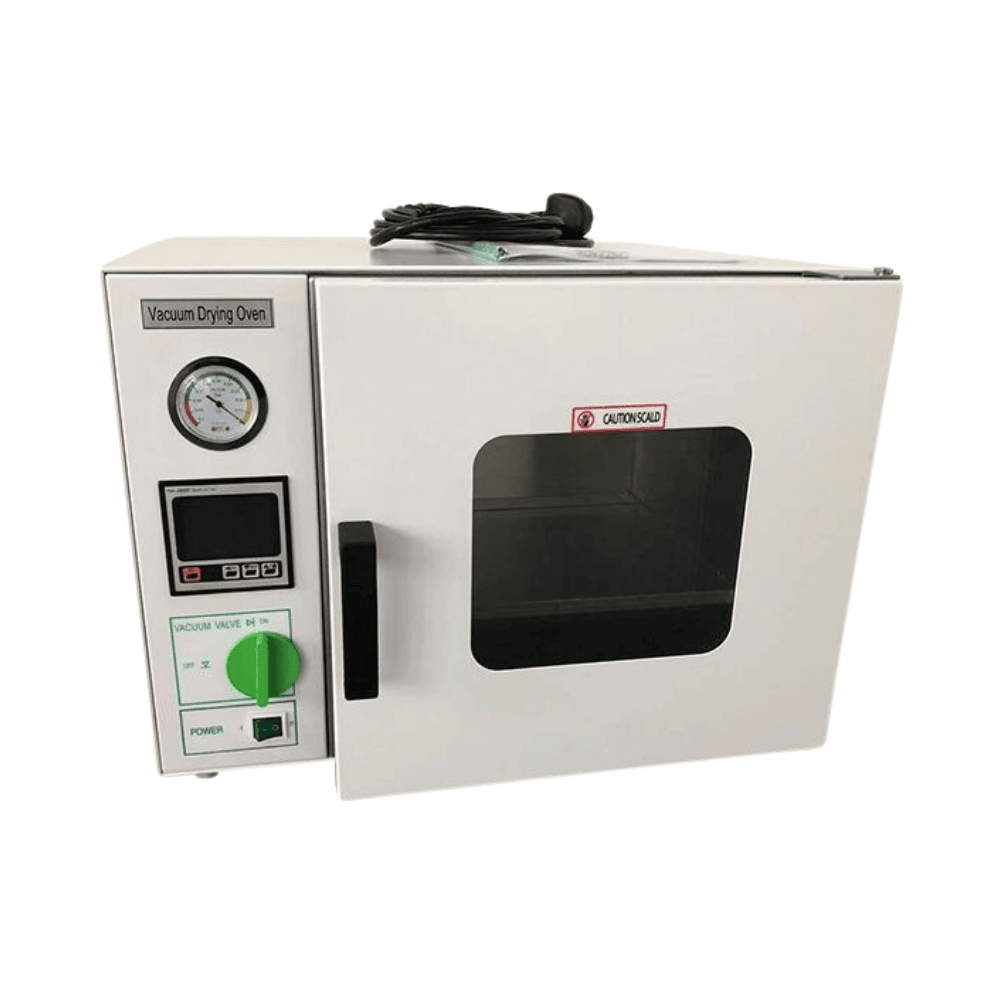

Vacuum Oven, CA-DOV-E II Series

  • Volume: 54L, 25L, 91L, 215L
  • Temperature Range(℃): RT+10~250, RT+10~200℃
  • Tempered, bullet-proof double glass door
  • Microprocessor controller with LCD display
SKU: CA-DOV-E II Series Category:

Description

1. Microprocessor controller with LCD display, more accurate and reliable.

2. Polished stainless steel chamber, durable and easy to clean.

3. Tempered, bullet-proof double glass door ensures the safety of the operator and clear observation of the chamber.

4. Door tightness can be adjusted, silicon sealing. To keep vacuum states in the chamber, the working chamber fills with inert gas (inflation pressure≦ 0.1 MPa).

5. Storage, heating, testing, and drying can be performed in an environment without oxygen or in an inert atmosphere. It will not cause oxidation.

6. Equipped with leakage protection.

Options:
1. Programmable temperature controller
2. RS485 Connector
3. Inert gas inlet valve
4. Small vacuum pump (CA-DOV-25E II, CA-DOV-55E II)

drying oven drying oven drying oven
Axillary temp. control 1. Polished stainless steel chamber, durable and easy to clean

2.Door tightness can be adjusted, silicon sealing. To keep vacuum states in the chamber, working chamber fill with inert gas (inflation pressure≤ 0.1 MPa)

Microprocessor controller with LCD display, more accurate and reliable

SPECIFICATIONS

Model CA-DOV-55E II CA-DOV-25E II CA-DOV-90E II CA-DOV-215E II
Volume 54L 25L 91L 215L
Temperature Fluctuation ±1℃
Display Resolution 0.1℃
Vacuum Degree <133 Pa
Consumption 1400W 500W 1600W 2200W
Power Supply AC110/220V±10%, 50/60Hz
Temperature Range RT+10~250℃ RT+10~200℃
Internal Size(W*D*H) 420*350*370mm 300*300*280mm 450*450*450mm 560*600*640mm
External Size(W*D*H) 710*590*530mm 580*570*450mm 610*660*1450mm 720*820*1750mm
Package Size(W*D*H) 820*700*690mm 700*640*600mm 780*760*1630mm 890*920*1930mm
Net/Gross Weight 75/106kg 35/50kg 90/145kg 145/195kg
