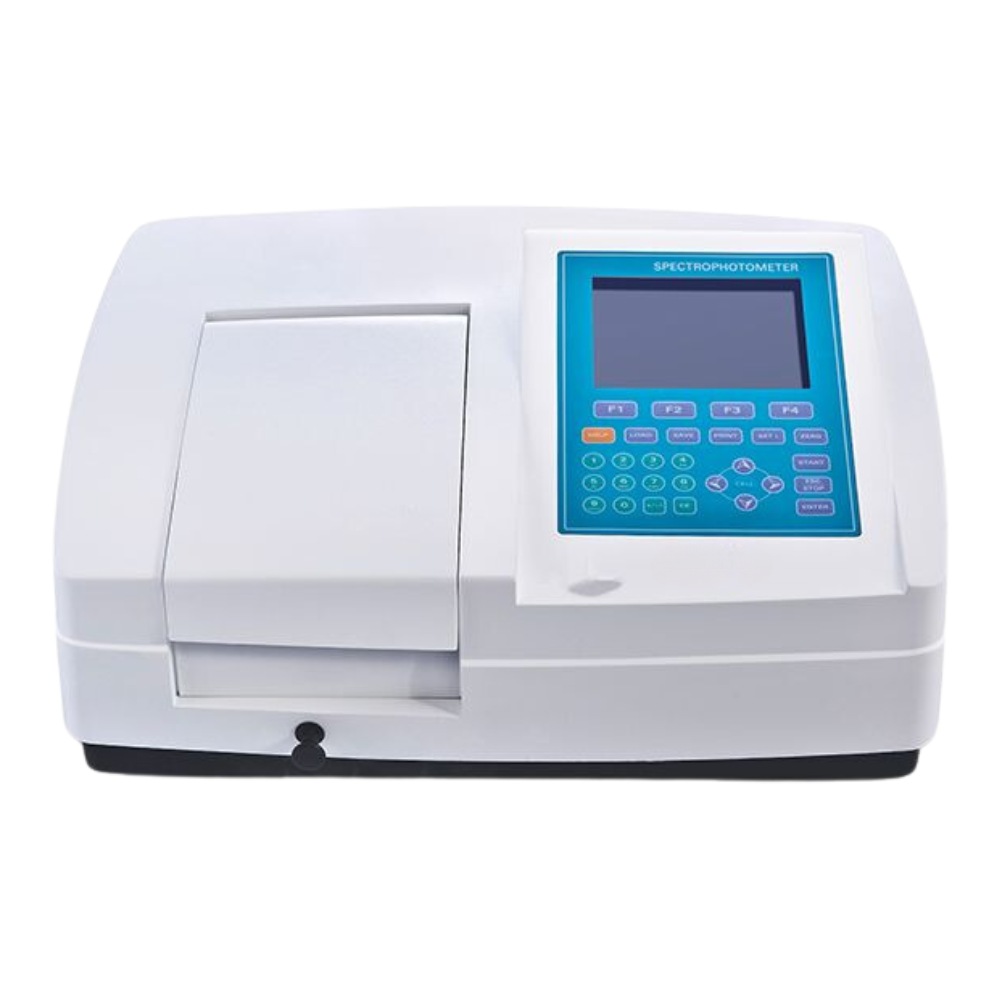

UV VIS Spectrophotometer, Single Beam

1 customer review

  • Monochromator Type: Czerny-Turner
  • Wavelength Range: 200-1000nm
  • Wavelength Accuracy: ±2nm
  • Sample compartment for 5-50mm cuvettes
SKU: CA-SP-IUV752N Plus Categories:

Description

Spectrophotometer

1. Sample compartment for 5-50mm cuvettes

2. Precise automatic T/A changeover

3. Automatic zero and full scale adjustment

4. 7-inch multi color touch-screen (SP-IUV752N Plus and SP-IV722N)

5. Equipped with USB port

6. Direct concentration read-out and concentration factor setting function

7. Automatic light gate technology to protect photoelectric sensors

8. Standard software

Common Features

1. The holographic blazed grating monochromator has the advantages of high wavelength accuracy, good monochromaticity and low stray light.

2. 7-inch multi color touch-screen, good human-computer interface. (SP-IUV752N Plus and SP-IV722N)

3. Linear regression method and coefficient method are added to the concentration test method.

4. USB interface is added, and large capacity memory can store 30 concentration curves.

5. Adopt microcomputer measurement system, with high conversion accuracy of T-A, automatic adjustment of 0% T and 100% T, concentration factor setting and concentration direct reading.

6. High accuracy, Good Reproducibility and Stability of Measurement Readings.

7. Automatic light gate technology, No need blackbody, to protect the photoelectric sensor.

SPECIFICATIONS


ModelSP-IUV752N Plus
PhotometrySingle Beam
Monochromator TypeCzerny-Turner
Focal Length160mm
Grating1200 lines/mm
DetectorSilicon Photocell
Wavelength SettingManual Turn Knob
Wavelength Range200-1000nm
Wavelength Accuracy±2nm
Wavelength Repeatability≤1nm
Spectrum Bandwidth2nm
Stray Light≤0.1%T (at 220nm NaI, 360nm NaNo2)
Photometric Range0-100.0%T
0-1.999A
0-1999C
Photometric Accuracy±0.5%T
Photometric Repeatability≤0.2%T
Noise100%(T)noise≤0.3%(T), 0%(T)noise≤0.2%(T)
Cuvette Holder Size10mm
Package Dimension (W*D*H) (mm)600*490*350
PowerAC220V±22V 50Hz±1Hz,120W
G.W.(kg)13.5

Standard Accessories

1. User manual 1pc

2. Glass cuvette 1cm 4pcs

3. Quartz cuvette 1cm 2pcs (SP-IUV752N Plus only)

4. Power cable 1pc

5. Fuse 2pcs

Optional Accessories

Cuvette holder 50mm
