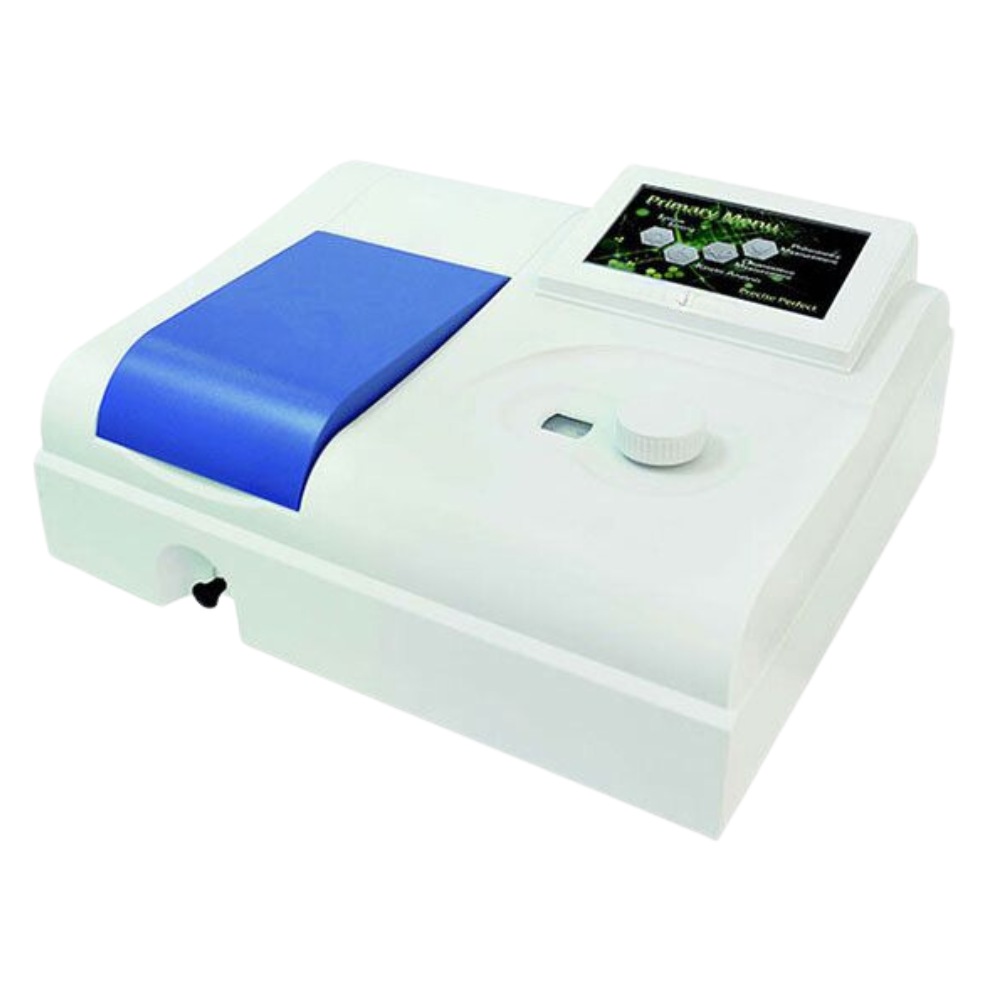

UV VIS Spectrophotometer, Single beam

1 customer review

  • Wavelength Range: 190-1100nm
  • Wavelength Accuracy: ±0.5nm
  • 8mm thick optical base
  • Powerful functions
SKU: CA-SP-MUV6000 Categories:

Description

Spectrophotometer

SP-MUV6000 spectrophotometer equipped with 6 inches LCD display, is an ideal and advanced analytical instrument for laboratory to realize wavelength scanning,Kinetics test, multi wavelengh functions. All functions can be operated on spectrophotometer and can be read directly on the display.

1. 6 inches LCD display

SP-MUV6000 series has a 6 inches LCD display to show results and curves directly on the screen.

2. 8mm thick optical base

SP-MUV6000 uses a rigid 8mm die-case aluminum base as its optical mount to ensure instrumentstability and reliability.

3. Powerful functions

Multi functions like spectrum scanning, standard curve, kinetics,multi wavelength, DNA/RNA/Protein testing can be operated directly on the spectrophotometer and all corresponding curves and data can be displayed directly.

4. Data output

UV-6000 is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen. The sofeware is optional.

SPECIFICATIONS


 ModelSP-MUV6000
 Wavelength Range190-1100nm
 Bandwidth1.8nm
 Wavelength Accuracy±0.5nm
 Wavelength Repeatability≤0.2nm
 Photometric Accuracy±0.3%T
 Photometric Repeatability≤0.15%T
 Photometric Range-0.3-3A,0-200%T,0-9999C
 Stability± 0.002A/h @ 500nm
 Baseline Flatness± 0.002A/h
 Noise± 0.0005A
 Stray Light≤0.05%T @ 220nm,360nm
 Data Output PortUSB
 Printer PortParallel Port
 Display320*240 Dots LCD
 LampsTungsten  Lamp&Deuterium Lamp
 DetectorSilicon Photodiode
 Power RequirementsAC  220V/50Hz or  110V/60Hz
 Dimension460*380*180mm
 Weight20kg

Standard Accessories

ItemDescriptionQuantityUnit
1Spectrophotometer1set
21cm Glass cuvette4pcs
3Power cord1pcs
4User’s Manual1pcs
51 cm quartz cuvette2pcs
6Dust Cover1pcs
