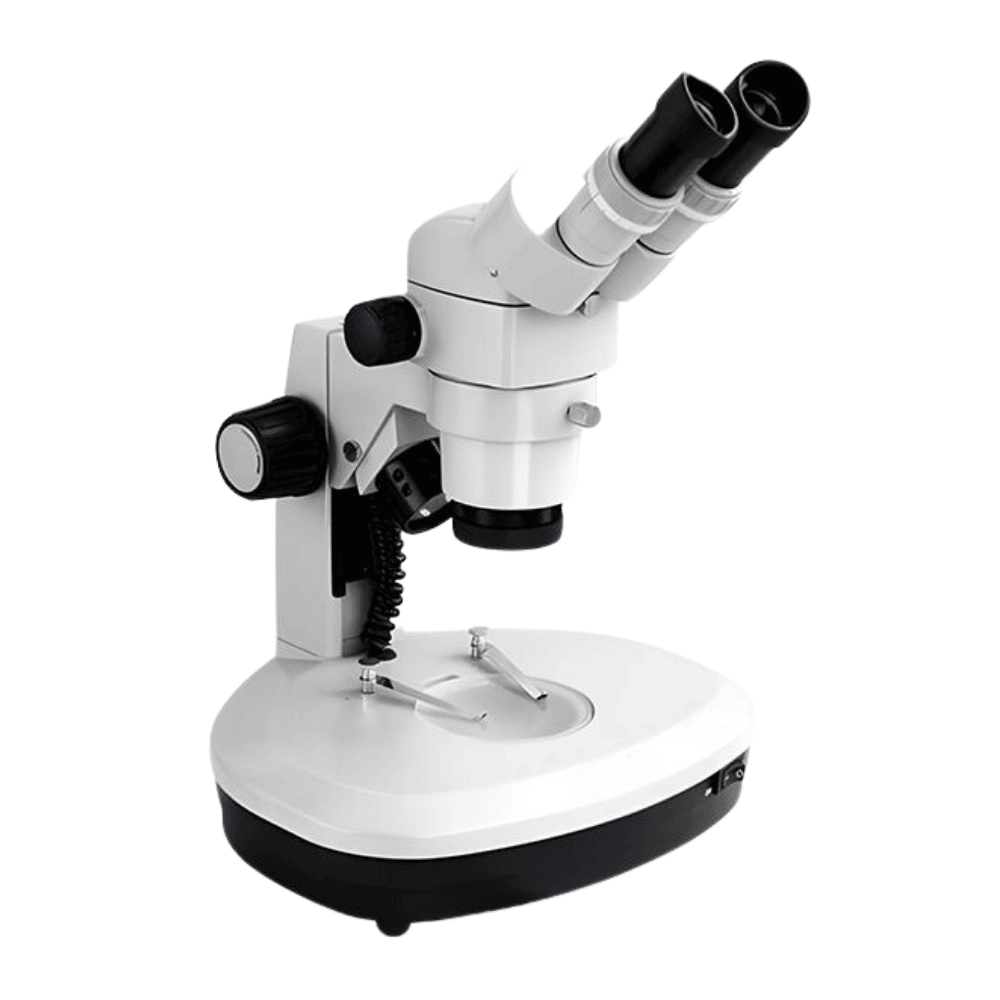

Stereoscopic Microscope, CA-MSC-ST830
- Magnification:Zoom objective 6X-50X
- Seidentopf binocularhead, inclined at 45°
- Interpupillary distance adjustment:48-75mm
- Working distance:95mm
Description
It can be widely used in medical and health care, agriculture and forestry geology, electronic precision. machinery and other industries and departments.
Features
- High performance continuous haploid visual microscope with doubling ratio of 1:8.3.
- The whole machine adopts modular structure, can easily access to photography, camera, coaxial lighting and other functions in the optical road, support the series of accessories, but also connect digital camera, facilitate on-site shooting.
- Non-coaxial image technique improves the edge clarity of the field and strong three-dimensional sense, which has good clear effect on observing bright background objects.
- Comfortable to use, large working platform, convenient operation and reliable performance.
Specifications
| Model | MSC-ST830 |
| Magnification | Zoom objective 6X-50X |
| Observation Tubes | Tilting Binocular, 360° rotatable, can be locked in any position desired;
Interpupillary distance adjustment:48-75mm; Diopter adjustment:±5diopters |
| Viewing Head | Seidentopf head, Inclined at 45° |
| Eyepiece | WF10X/22mm high-eye point, wide-field; Convenient for observers wearing glasses |
| Objective | 0.6X-5X stereo zoom; Zoom Ratio1:8.3 |
| Focusing | Focusing track mount with vertical working distance 104mm |
| Working Distance | 95mm |
| Illumination | Upper light source: halogen lamp;
Lower light source:5W fluorescent lamp. |
| C-Mount | Three vision road annex |
| SZM 1X C-Mount;
*SZM 0.5X C-Mount; *SZM 0.3X C-Mount |
|
| Package Dimension (W*D*H) (mm) | 390*350*500 |
| G.W.(kg) | 6.6 |
*Optional configuration
