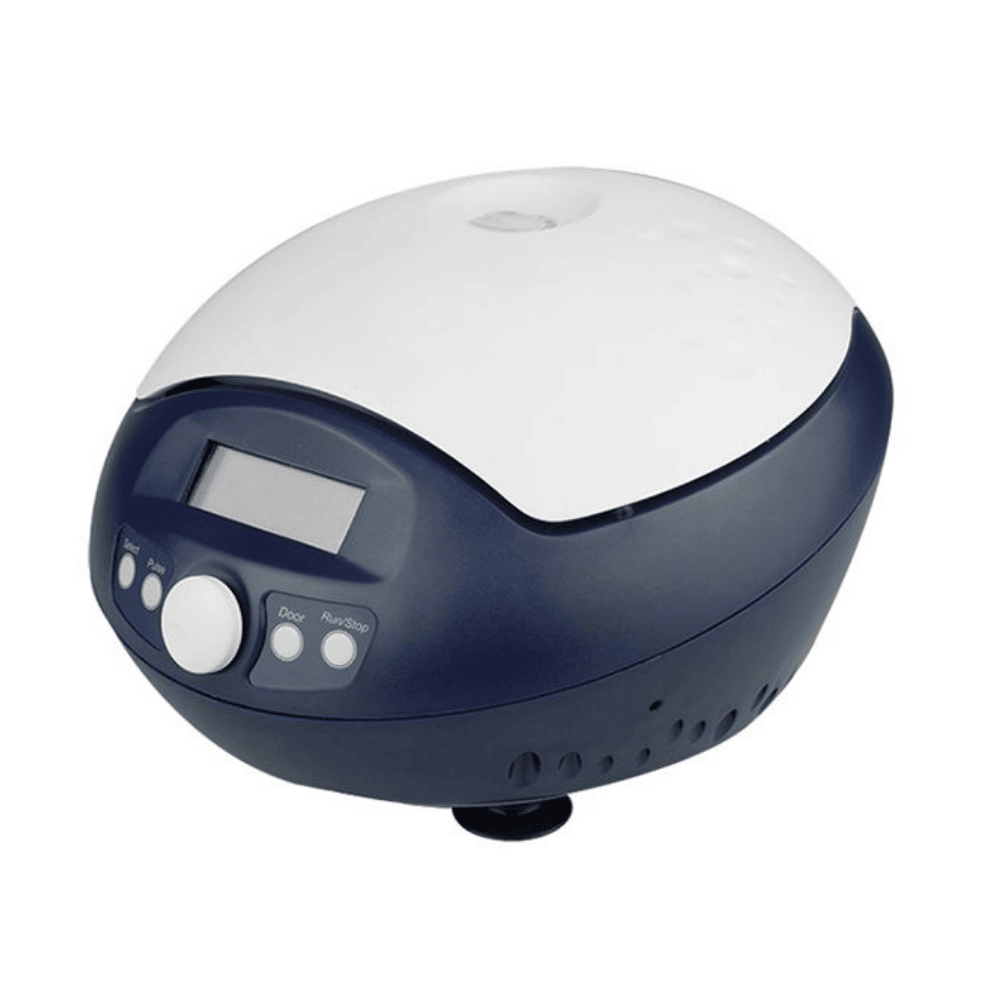

Mini Centrifuge, High Speed, CA-CFG-Mini15D
- Max. Speed: 15000rpm
- Max. RCF: 15100×g
- Rotor Capacity: 0.2mL/0.5mL/1.5mL/2mL×12
Description
- Speed up to 15000rpm (15100×g)
- Brush-less DC motor drive quickly to the target speed
- Quiet working, Low noise ≤54dB
- CFG-Mini15D is proven by IEC/EN 61010-1
- CFG-Mini15D passed the rigorous explosion-proof test according to IEC/ E/V 61010-2-20.
Specifications
| Specifications | CFG-Mini15D |
| Max. Speed | 15000rpm(500-15000rpm), increment: 100rpm |
| Max. RCF | 15100×g, increment: 100×g |
| Speed Accuracy | ±20rpm |
| Rotor Capacity | 0.2mL/0.5mL/1.5mL/2mL×12 |
| Run Time | 30sec-99min/Continuous |
| Acceleration/Braking time | 11s↑/9s↓ |
| Driving Motor | Brushless DC motor |
| Safety Devices | Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis |
| Power | Single-phase, AC100V-240V, 50Hz/60Hz, 3A 100W |
| Noise level | ≤54dB |
| Dimension[D×W×H] | 255mm×245mm×140mm |
| Weight | 6kg |
| Other functions | Speed/RCF switch, Short-time run function, sound-alert function |
Available rotors
 |
| Cat. No.19400010
for CFG-Mini15D only Max. speed: 15000rpm Max. RCF: 15100×g Rotor capacity: 2mL/1.5mL×12,0.2mL×12,0.5mL×12 Rotor material: High strength plastic Available rotor adapters: A02P2, A05P2 |
Available adapters
 |
| Cat. No.19500001
0.2mL rotor adapter 24 pcs/pk |
| Cat. No.19500002
0.5mL rotor adapter 24 pcs/pk |
