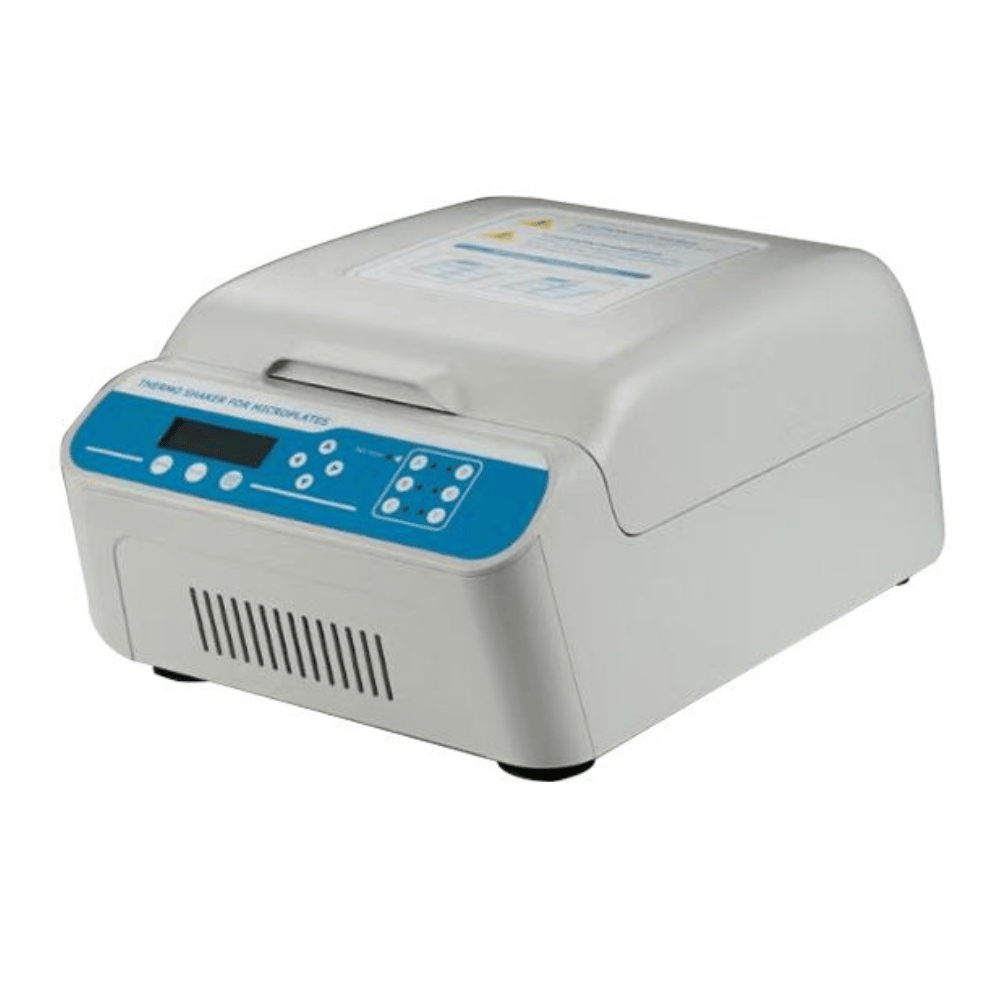

Microplate Incubator Thermo Shaker for Microplates, CA-DBI-PR80-5

  • Speed range:200~1600rpm
  • Temp accuracy:≤±0.5℃@37℃
  • Temp display range: 0℃~100℃
  • Orbit:3mm
SKU: 10601 Category:

Description



CA-DBI-PR80-5 Thermo Shaker for Microplates is a multipurpose thermostatic shaker controlled by a brushless DC motor. It can be used to store enzymes or DNA libraries at your workstation, transport samples from the field at the exact right temperature, heat samples in the field, run enzyme reactions, perform deactivation, and prepare PCR samples.

Features:
● Structural features
1. LCD display, easy to set up and use.
2. Brushless DC motor, low noise, small interference, free maintenance.
3. Built-in software and hardware over-temperature protection devices will be more reliable.
4. Wrap-around heating lid design reduces thermal edge effects. It is the ideal automation tool for sample incubation, catalysis, blending, and preservation. With a wrap-around heating lid design, two options for heating lid temperature control: automatic or manual.

● Functional features
5. Support 6 standard microplates and deep well plates.
6. Automatic preheating function.
7. Automatic power recovery function.
8. Automatic fan function.
9. Temperature calibration function.
10. Support 6 plates timing independently. An independent timing function allows timing a single plate, which increases flexibility in processing multiple batches.
Its PID intelligent temperature control technology ensures temperature accuracy, automatically adjusts the heating rate, and reduces waiting time.

Specifications

Model CA-DBI-PR80-5
Temp display range 0℃~100℃
Temp control range RT+5℃~100℃
Time range 1min ~ 99h59min/∞
Speed range 200~1600rpm
Orbit 3mm
Temp accuracy ≤±0.5℃@37℃*
Display accuracy 0.1℃
Temp uniformity ≤±0.5℃@37℃*
Heating time 1 <5min(from 25℃ to 60℃)*
Heating time 2 ≤20min(from 25℃ to 100℃)*
Auto preheating Yes
Preheating setting range 37℃~100℃
Pause function Yes
Auto resume to run Yes
Auto fan function Yes
Independent timing function Yes
Heating lid temp. control mode Automatic / Manual
Multi-point running Yes(Max 5points)
Multi cycle Yes(Max 99times)
Capacity 6 Microplates or Deepwell plates



Power 480W
Electricity AC220V or AC110V /50-60HZ
Dimension 481*346*228(mm)
Weight 15kg
