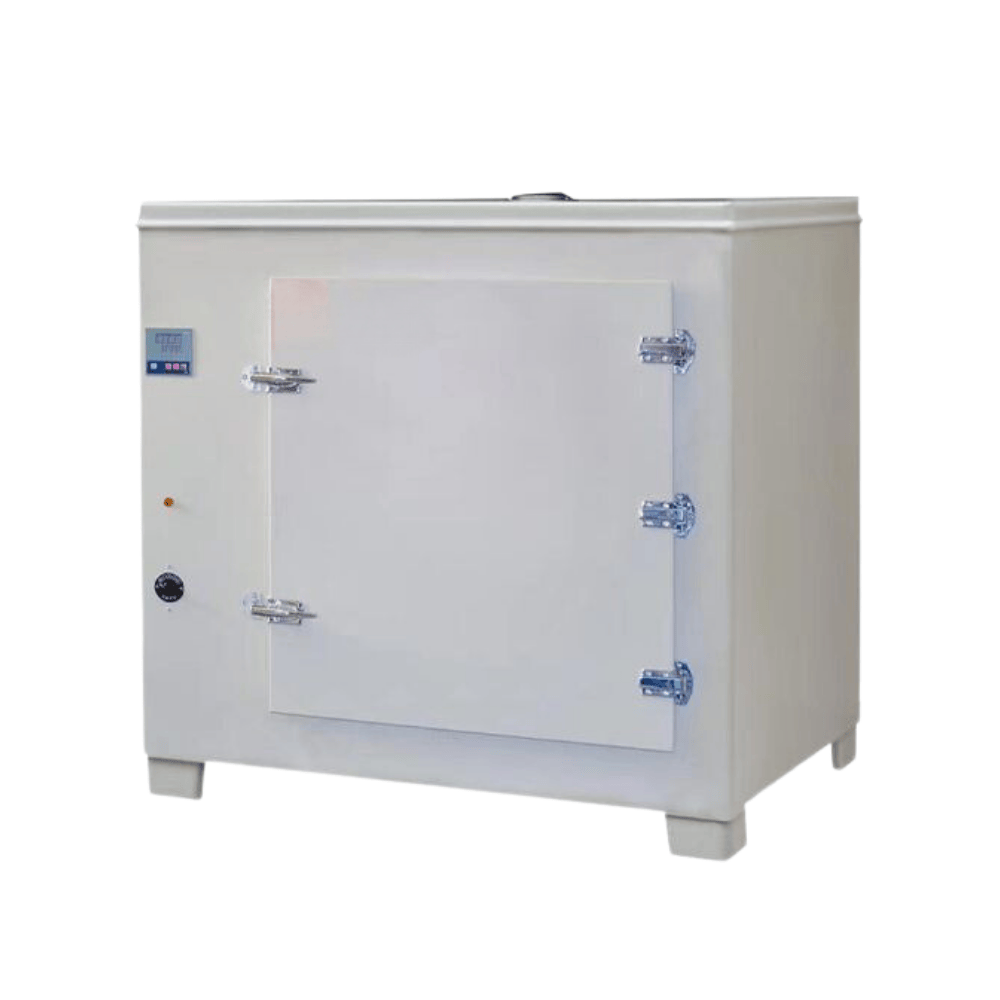

High Temperature Oven, CA-DON-H130, H220, H640

  • Temp. range: 50℃- 500℃
  • Top-mounted air outlet
  • LED digital tube display
  • Pull-out movable shelf
SKU: CA-DON-H130, H220, H640 Category:

Description

This product is used for drying, baking, wax melting, and sterilization in industrial and mining enterprises, laboratories and scientific research units. This drying oven is suitable for heating, drying or heat treatment below 500 °C, and is not suitable for baking volatile items and flammable and explosive items.

Features

  1. Outer box material: cold-rolled steel surface sprayed with plastic; inner material: SUS stainless steel plate.
  2. Top-mounted air outlet, easy to switch.
  3. The resistance wire at the bottom can be heated, and there is a temperature switch. Suitable heating power can be selected according to different temperatures.
  4. LED digital tube display P.I.D temperature controller, precise temperature control.
  5. Continuous operation or timed operation: 0 ~ 9999min; with parameter memory function, it will automatically resume operation after incoming calls.
  6. Pull-out movable shelf

Specifications

Model CA-DON-H130 CA-DON-H220 CA-DON-H640
Temp. range 50℃- 500℃
Temp.uniformity ≤Max. working temperature ±3.5%
Temp.fluctuation ±1℃
Circulation in the chamber Natural convection
Alarm type Over temperature alarm, temperature probe damage alarm
Internal dimensions W*D*H(mm) 552*450*553 602*500*753 803*803*1003
Internal volume (L) 137 226 646
External dimensions W*D*H(mm) 1020*720*922 1070*770*1122 1270*1070*1372
Packing dimensions W*D*H(mm) 1170*840*1080 1220*890*1280 1470*1190*1530
Shelf 2 3 3
Power (W) 6000 8000 12000
Electricity 3Ø 380V 50Hz
Remarks External depth (D) includes 3.5cm accessories, height (H) includes 1.2cm accessories
