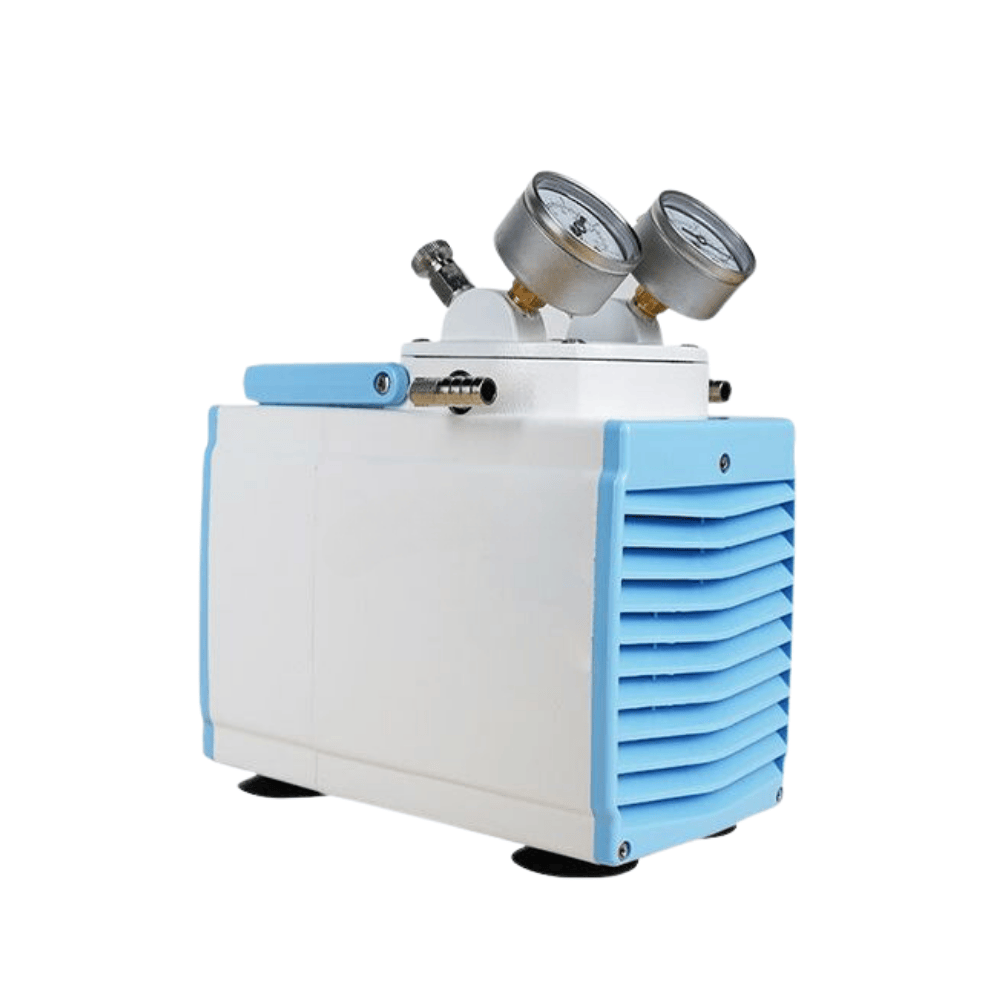

Name: Diaphragm Vacuum Pump, CA-VACP-D51
SKU: CA-VACP-D51
Availability: InStock

Description

No need for any working medium (no oil),no pollution. The air exchange chamber is equipped with filter materials to ensure the air
Adopt new technology and new materials in the production process. Easy to move and work smoothly, thus ensuring an ideal vacuum degree and a high air flow rate.
The special electricitymotor is provided by the expert motor manufacturer ODM. Reasonable rotation design, equipped with an overheating power-off protector, will automatically power off when the pump body temperature reaches 130°C, and protect the motor from damage during long-term operation.
Adoptfrictionless film movement, no heat generation, no friction loss. The diaphragm is made of imported rubber, which is corrosion resistant and has a long service life.
Automatic cooling and exhaust system, which ensurescontinuous operation for 24 hours.
The pressure adjustable design can meet the vacuum degree and gas flow rate within a certain range.
The bearing adopts imported classic bearings, with stable operation, low noise and high working efficiency.
The parts of the anti-corrosion pump in contact with gas are treated with Teflon surface treatment, which isresistant to chemical corrosion.
Small size, light weight, easy to move, saving laboratory space, convenient for repair and maintenance.

SPECIFICATIONS

CA-VACP-D51
Pumping Speed (L/Min)	30	Pump Head	1
Ultimate Vacuum	200mbar	Pump body Temperature (°C)	<55
Voltage	220Vac,50Hz	Dimension(L×W×H) (mm)	230x180x265
Power	160W	Weight(Kg)	7.5
Positive Pressure	≥30Psi	Diaphragm	Imported Rubber
Air Inlet (mm)	φ6	Valve Plate	Imported Rubber
Air Outlet (mm)	φ6	Noise(BD)	<60
Operating Ambient Temperature (°C)	7-40	Note	Positive-negative pressure dual purpose
Optional accessory	Retention bottle
