Description

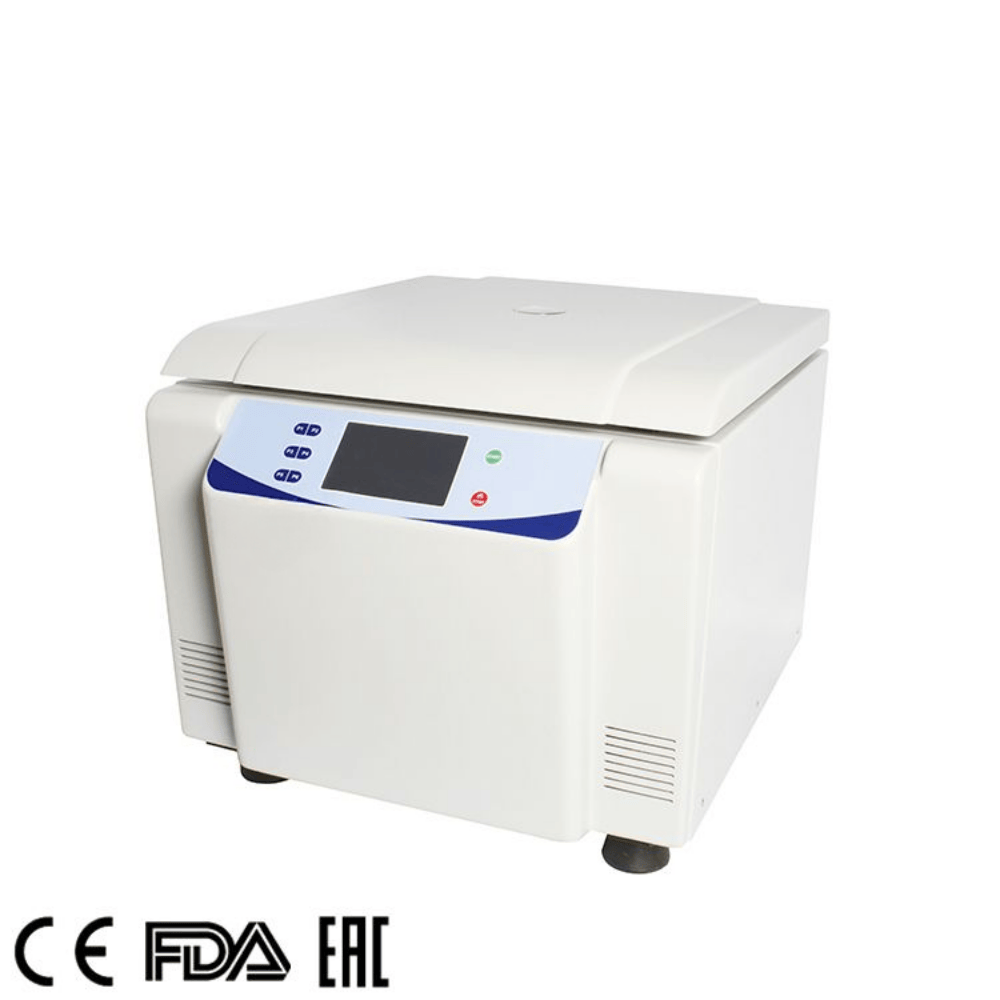

- CA-CFG-580 is a multi-purpose low-speed and large-capacity centrifuge, an intelligent centrifuge with internationally advanced technology.
- Microcomputer control, high-definition large-screen LCD display, intuitive controls simplify operation, humanized operation interface, providing detailed information on various operating parameters and ideal performance processing status, simple and easy to use.
- It has 9 levels of acceleration/10levels of deceleration, enabling reading conversion and setting between rpm/RCF, which is convenient and fast, and simultaneously displays acceleration and deceleration curve images to achieve ideal centrifugation effects.
- It has multiple protection functions, such as overspeed, imbalance, and door cover, to ensure the safety and reliability of the
- Novel electronically controlled door lock, easily closes and securely locks the centrifuge.
- The space-saving design of the large-capacity centrifugal chamber and the rich rotor specifications enable one machine to be used for multiple purposes.
Specifications Accessories Center
| Model | CA-CFG-580 | |||
| Max speed | 5800r/min | |||
| Max RCF | 5060×g | |||
| Max capacity | 4×750ml | |||
| Speed accuracy | ±10r/min | |||
| Time setting | 1min~99min59s | |||
| Noise | <65db(A) | |||
| Power supply | AC220V 50Hz 15A 750W | |||
| Dimension(L×W×H) | 495mm×620mm×445mm | |||
| Net weight | 60kg | |||
| Rotor Type | Max Speed(rpm) | Max RCF(g) | Max Capacity | Adapters |
| Angle Rotor | 5800r/min | 5060×g | 6×50ml | 15ml |
| 20ml | ||||
| Swing Rotor | 4000r/min | 3780×g | 4×750ml | 4×24×5/7ml
Vacuum Tube |
| 4×14×15ml | ||||
| 4×12×20ml | ||||
| 4×5×50ml | ||||
| 4×3×100ml | ||||
| 4×250ml | ||||
| 4×500ml | ||||
| Swing Rotor | 4000r/min | 3220×g | 4×500ml | 4×19×5/7ml
Vacuum Tube |
| 4×9×15ml | ||||
| 4×7×20ml | ||||
| 4×3×50ml | ||||
| 4×100ml | ||||
| 4×250ml | ||||
| Swing Rotor | 4300r/min | 3582×g | 4×250ml | 4×9×5/7ml
Vacuum Tube |
| 4×9×1.5ml | ||||
| 4×7×5ml | ||||
| 4×5×15ml | ||||
| 4×4×20ml | ||||
| 4×50ml | ||||
| 4×100ml | ||||
| Swing Rotor | 4000r/min | 3500×g | 6×250ml | 6×9×5/7ml
Vacuum Tube |
| 6×9×1.5ml | ||||
| 6×7×5ml | ||||
| 6×5×15ml | ||||
| 6×4×20ml | ||||
| 6×50ml | ||||
| 6×100ml | ||||
| Swing Rotor
(microplate) |
4000r/min | 2200×g | 2×2×96 well |
