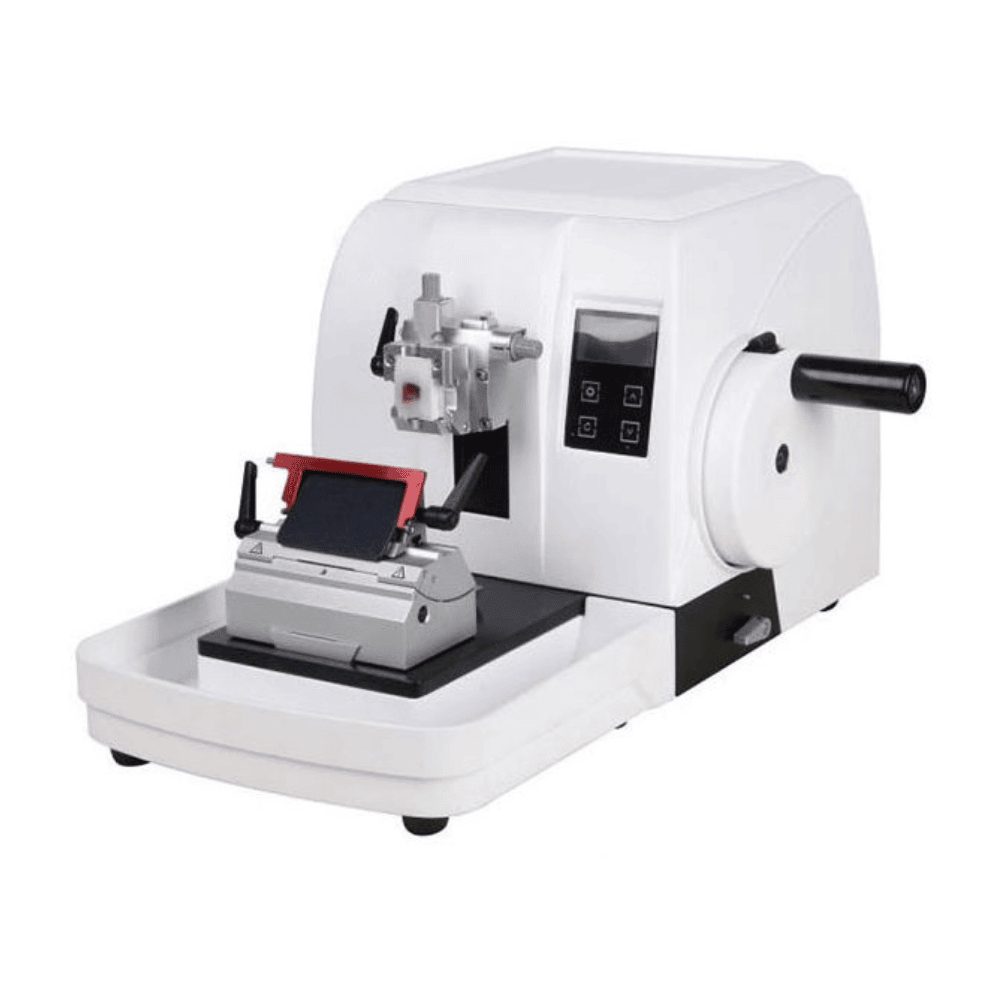

Description
- This model utilizes a human-oriented design, is easy to switch between cutting and trimming, has advanced technology and stable performance, and is user-friendly.
- The specimen feeding drive utilizes an intelligent control system, which has three modes: Conventional mode, Intelligent sensing mode, and whole layer cutting mode.
- Advanced drive systems including multiple functions, sectioning, trimming, fast forward, fast backward, and quick conversion;
- Uses imported cross-roller guide rails and a screw motion mechanism to ensure precision, resulting in superior sectioning performance;
- LED screen shows the section and trimming thickness, as well as the number of sections.
- With a safety and emergency braking system, security alarm system, driver overload protection, and auto-sleep protection system;
- Easy and fast switching between different specimen clamps (two options: paraffin block clamp and cassette clamp);
- Hand-wheel balance is precisely adjusted and can be locked at any position to ensure the safety of the slicing operation.
- The blade holder can be laterally moved to avoid direct contact with the blade direct contact, thereby utilizing the entire length of the blade (three different segments).
- The red bar on the blade holder covers the whole length of the blade to protect the user, and the push bar enables easy change of the blade.
- Hand-wheel balance is precisely adjusted and can be locked at any position to ensure the safety and convenience of sectioning.
- Large-volume waste tray is easy to remove and clean, and items such as disposable blades can be stored on the top of the housing.
Specifications
| Model | CA-RMT-SA390 |
| Section Thickness Setting Range | 0.25- 100μm 0.25 – 2.5μm increment 0.25μm 2.5 – 5μm increment 0.5μm 5.0 – 10μm increment 1μm 10 – 30μm increment 2μm 30 – 60μm increment 5μm 60 – 100μm increment 10μm |
| Trimming Thickness Setting Range | 1– 600μm 1 – 10μm increment 1μm 10 – 20μm increment 2μm 20 – 50μm increment 5μm 50 – 150μm increment 10μm 150 – 600μm increment 50μm |
| Retraction Setting Range | 0—100μm ( 0 is off ) 5-10-15—50 (optional) |
| Whole layer clearance distance Range | 10 – 6000μm 10-12-15-20-25~5000~6000μm |
| Minimum Setting of Sectioning Thickness | 0.25μm |
| Total Horizontal Specimen Feed | 28mm |
| Vertical Specimen Stroke | 70mm |
| Movement Range of the Base of the Blade Holder Base | 0-60mm (front to back) |
| Movement Range of the Blade Press plate | 0-23mm |
| Specimen Clamp Rotation | at any angle within 360 degrees. |
| Specimen Orientation | XY – 8° |
| Maximum Specimen Size | Standard wax block clip 39mm×40mm (Other sizes available) |
| Feed speed adjust | 1500μm/s ~ 3500μm/s |
| Precision Error | ±1% |
| Working Voltage | AC 220V±10% 50Hz (standard model) / AC110V±10% 60HZ |
| Power | 100W |
| Dimensions | 575×420×330 mm (W×D×H) |
| Net weight | 37kg |
