Water Purifier, CA-LWP-G3 Series

  • Water Outlet: 2PCS. for RO water, Dl water
  • Resistivity: 16-18.2MΩ.cm@25℃
  • Water Yield (25°C): 10/20/30/40L/H
SKU: CA-LWP-G3 Series Category:

Description



  • It is an integrated system that produces pure water and high-pure water using tap water;
  • Two lines of LCD display, three touch keys, and one-key operation;
  • Online monitoring of quality and temperature of pure water and high-pure water;
  • Protection from misoperation such as cleaning and circulation;
  • Early warning and protection from leakage and low pressure;
  • American DOW RO film imported with original packaging ensures long life of RO film and high water quality;
  • Resistance constant of conductivity meter: 0.01cm-1, temperature sensitivity: ±0.1°C, automatic temperature compensation;
  • The main power supply is 24VDC (low voltage) which conforms to the safety code. ABS engineering plastic housing and water-power separated structure adapt to humid environment, avoid damaging human body and produce lower radiation. The system adopts advanced EMC design and features strong interference immunity and low noise.
  • 160*80*390mm integrated two-column purified module and 160*80*390mm integrated two-column UP module.
  • The whole column is made of edible PP. Hot melt machine enables once forming and no adhesives and impurities will be separated out. The system is internally installed with 3L American Dow purified precise resin imported with original packaging. The effluent quality reaches up to 16-18.2MΩ.cm.

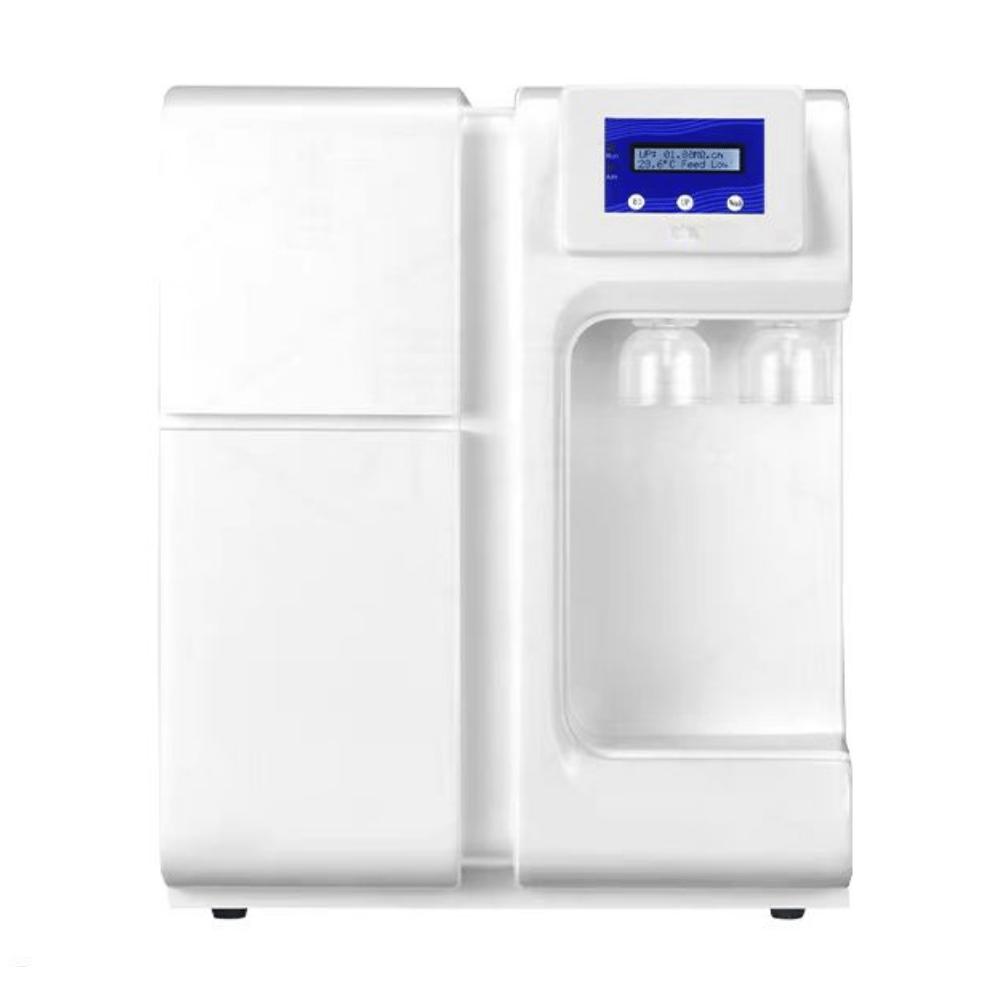

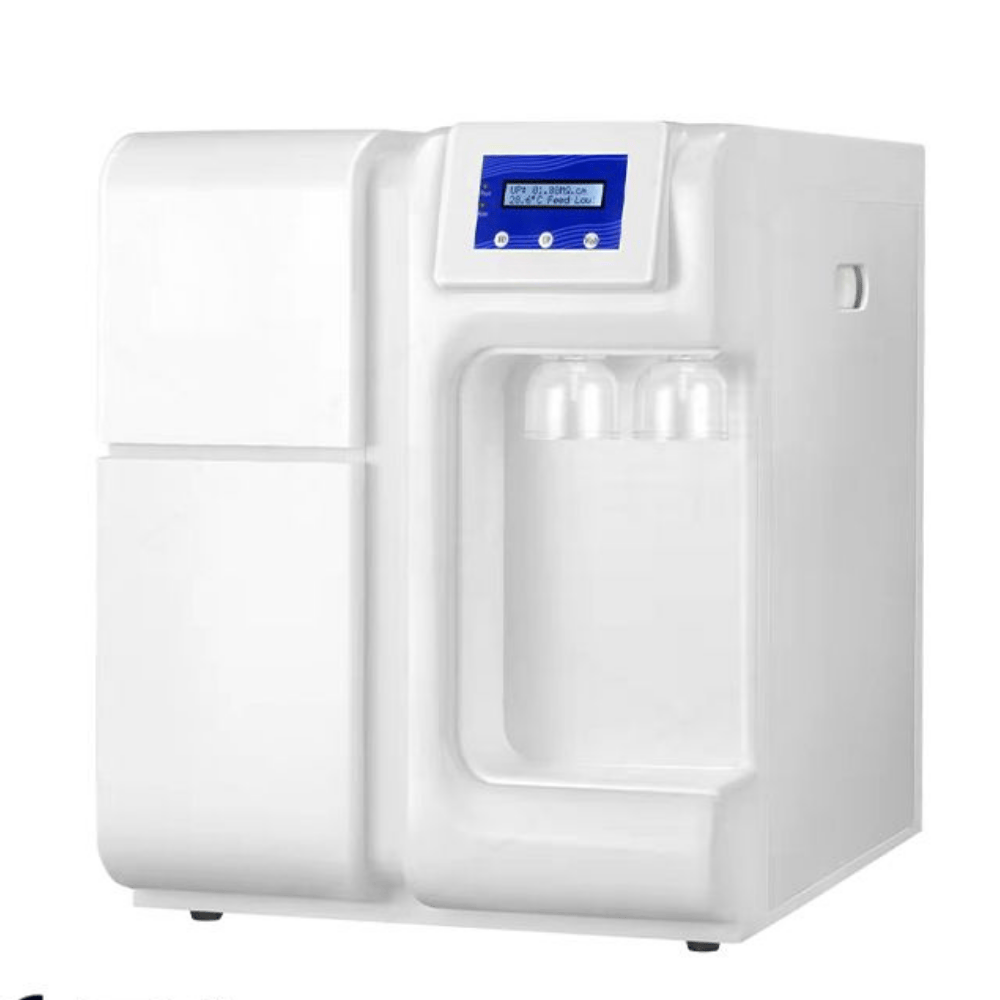

LWP-G3 Series display
  • Two lines of LCD display
  • Three touch keys
  • One-key operation
LWP-G3 Series Water Outlet

Water Outlet

  • 2PCS. for RO water, Dl water

SPECIFICATIONS

Product Type LWP-G3
Model LWP-G3-10 LWP-G3-20 LWP-G3-30 LWP-G3-40
Influent Requirement Urban tap water: TDS<200ppm,5-45°℃,1.0-4.0Kgf/cm³(if influent TDS>200ppm, external softener is recommended)
System Process*t PF+PP+RO+DI
Indexes of DI Water
Resistivity 16-18.2MΩ.cm@25℃
Heavy Metal lon <0.1ppb
PM (>0.2um) <1/ml
RO Indexes
lon Rejection Rate 96%-99% (when new RO film is used)
Organic Rejection Rate >99% (when MV>200 Dalton)
PM and Bacteria Rejection Rate >99%
Water Yield (25°C) 10L/H 20L/H 30L/H 40L/H
Instantaneous Water Yield 1.5-2.0L/min (pressure barrel is needed)
Water Outlet 2PCS.: RO water,Dl water
Size/Weight(W*D*H) 410×490×510mm/ about 25Kg
Package Dimension/G.W.(W*D*H) 760*660*1070mm/67kg 750*650*820mm/57kg
Power Supply/Power/Noise 220V50HZ/50-80W/<50db
Standard Configuration Host (including 1 set of purified column)+Built-in 12L pressure barrel+ accessory bag

ACCESSORIES

LWP-G3-Series-accessories
