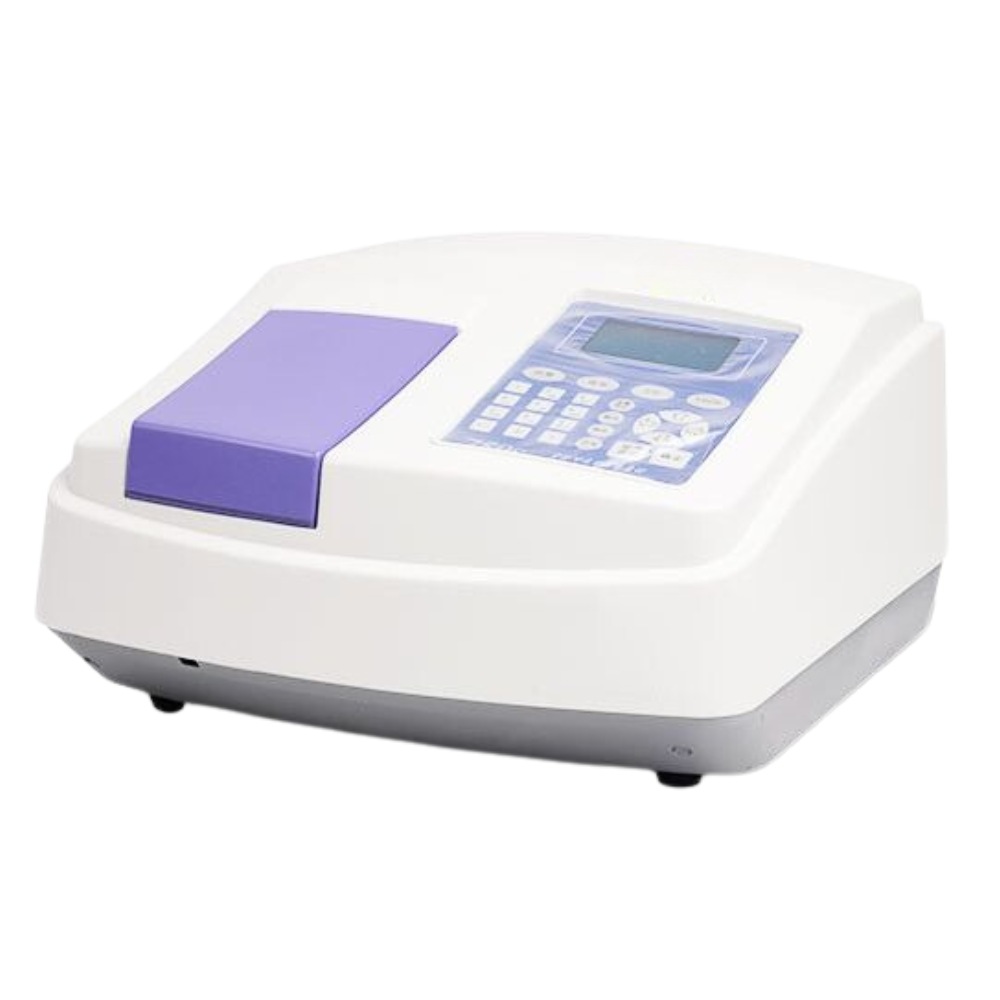

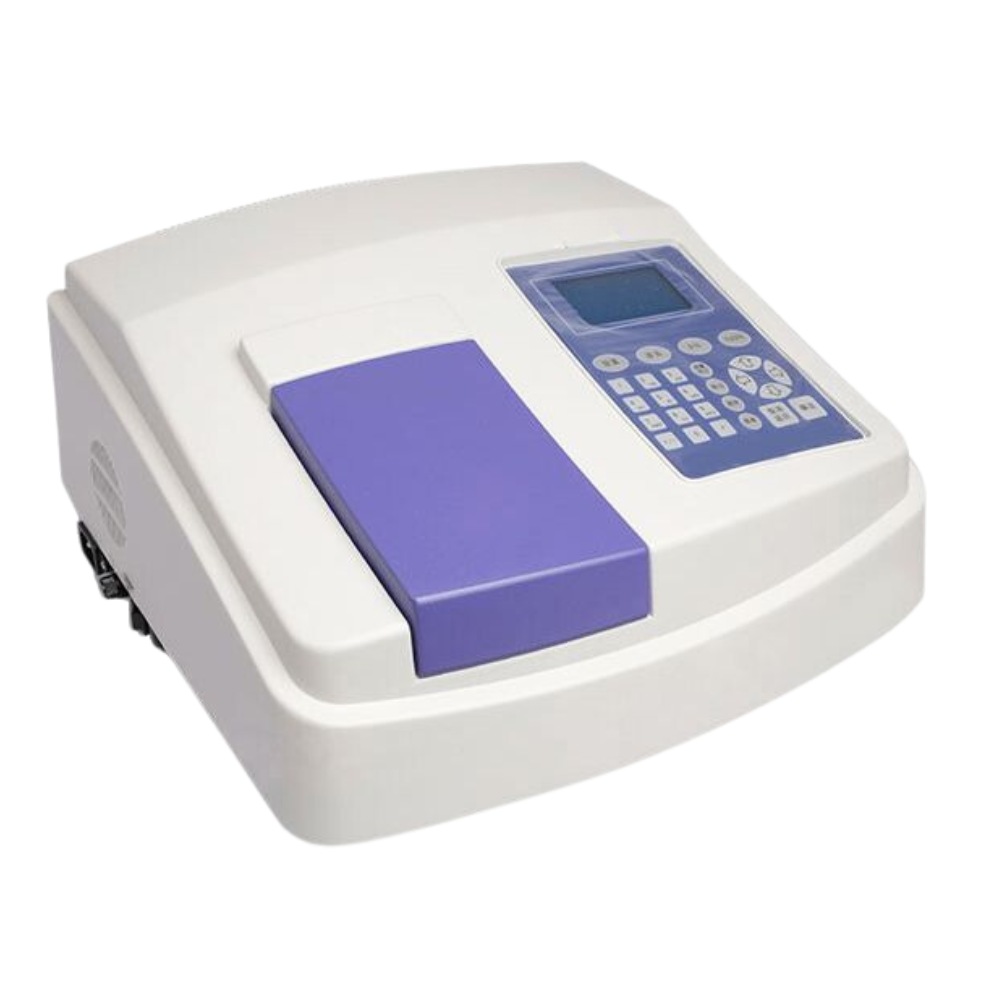

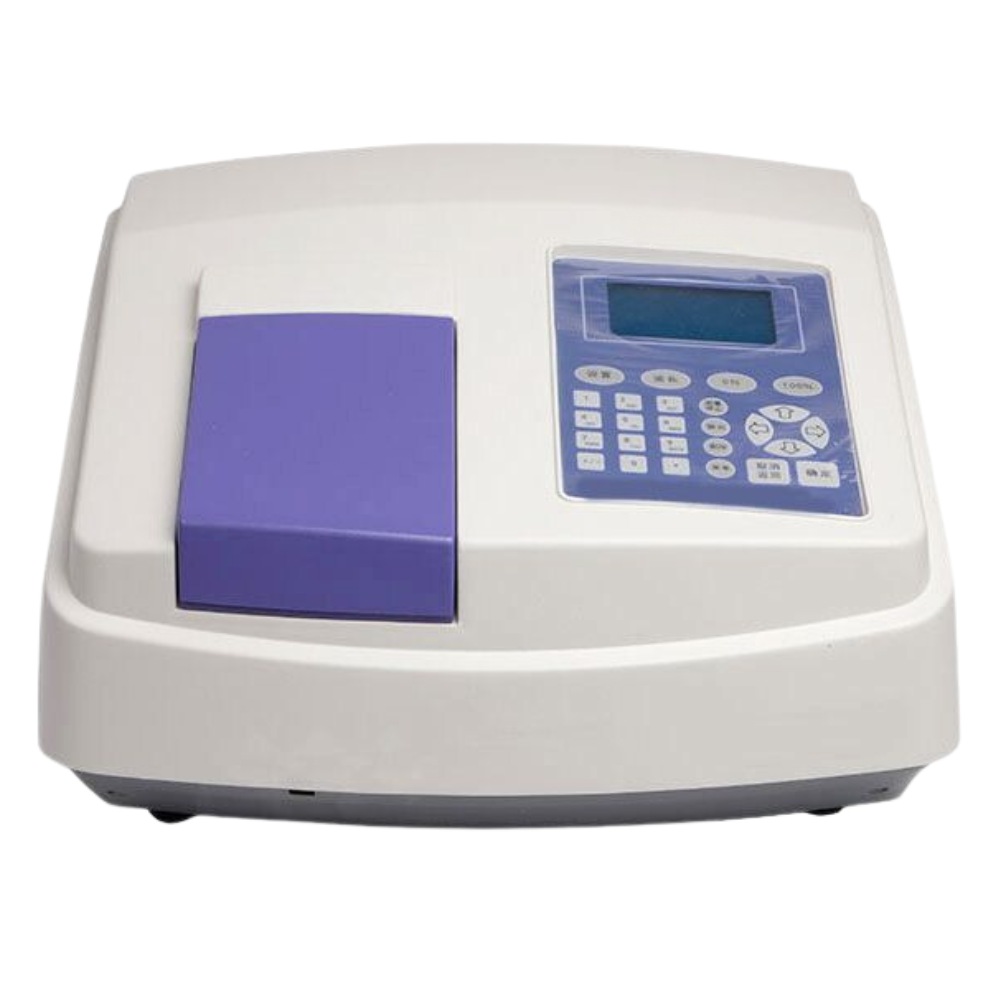

UV VIS Spectrophotometer, Single Beam

1 customer review

  • Wavelength Range: 190-1000nm
  • Wavelength Accuracy: ±2nm
  • Data Output Port: USB & Parallel Port(Printer)
  • 2.5 inches LCD screen
  • Multiple results readout
SKU: CA-SP-MUV5100 Categories:

Description



Spectrophotometer

1.  2.5 inches LCD screen

Equipped with a 2.5 inches LCD screen to give a clear display of standard curves and groups of results.

2. Standard curve

Can set up various standard curves according to customer ‘s solutions and find the concentration of unknown solutions.

3. Imported deuterium lamp

SP-MUV5100 is equipped with an imported deuterium lamp which ensures low stray light, photometric accuracy and is easy to replace.

4. Data output

Equipped with a USB port to connect with a PC to display spectrum scanning, kinetics, and Multi-wavelength testing results on the screen. The software is

optional

5. Multiple results readout

Can display wavelength,absorption and transmittance with 5 results per screen.It also has a memory store of up to 200 results.

6. Auto setting wavelength

Users set wavelength automatically through arrow keys to avoid operation errors.



SPECIFICATIONS


 ModelSP-MUV5100
 Optical SystemSingle beam, Grating 1200 lines/mm
 Wavelength Range190-1000nm
 Bandwidth2nm
 Wavelength Accuracy±2nm
 Wavelength Repeatability0.5nm
 Wavelength SettingAuto
 Photometric Accuracy±0.5%T
 Photometric Repeatability≤0.2%T
 Photometric Range-0.3-3A,0-200%T,0-9999C
Photometric  ModeT,A,C,F
 Stray Light≤0.1%T
 Stability± 0.002A/h @ 500nm
 Display128*64  LCD
 DetectorSilicon Photodiode
 Light SourceTungsten  Lamp&Deuterium Lamp
 OutputUSB & Parallel Port(Printer)
 Power RequirementsAC 85~250V
 Dimension420*280*180mm
 Weight12kg

Standard Accessories

ItemDescriptionQuantityUnit
1Spectrophotometer1set
21cm Glass cuvette4pcs
3Power cord1pcs
4User’s Manual1pcs
51cm quartz cuvette2pcs
6Dust Cover1pcs
