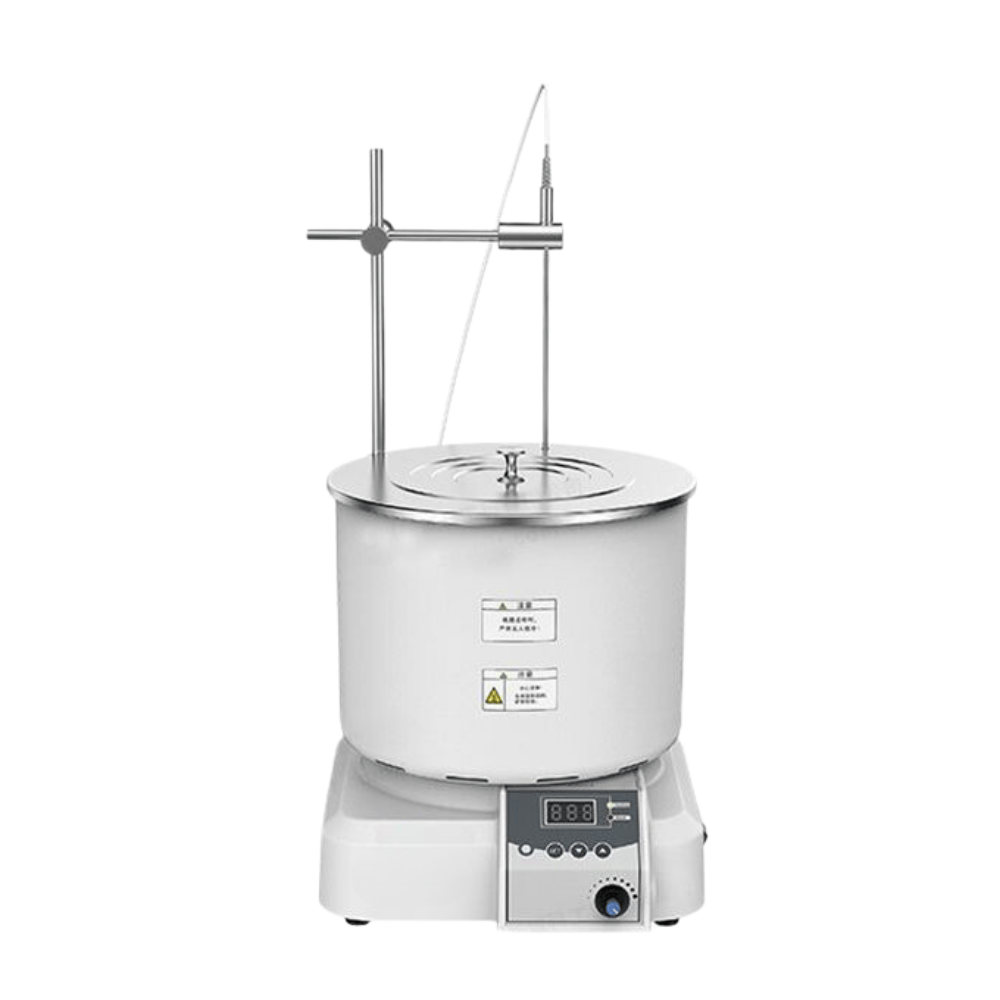

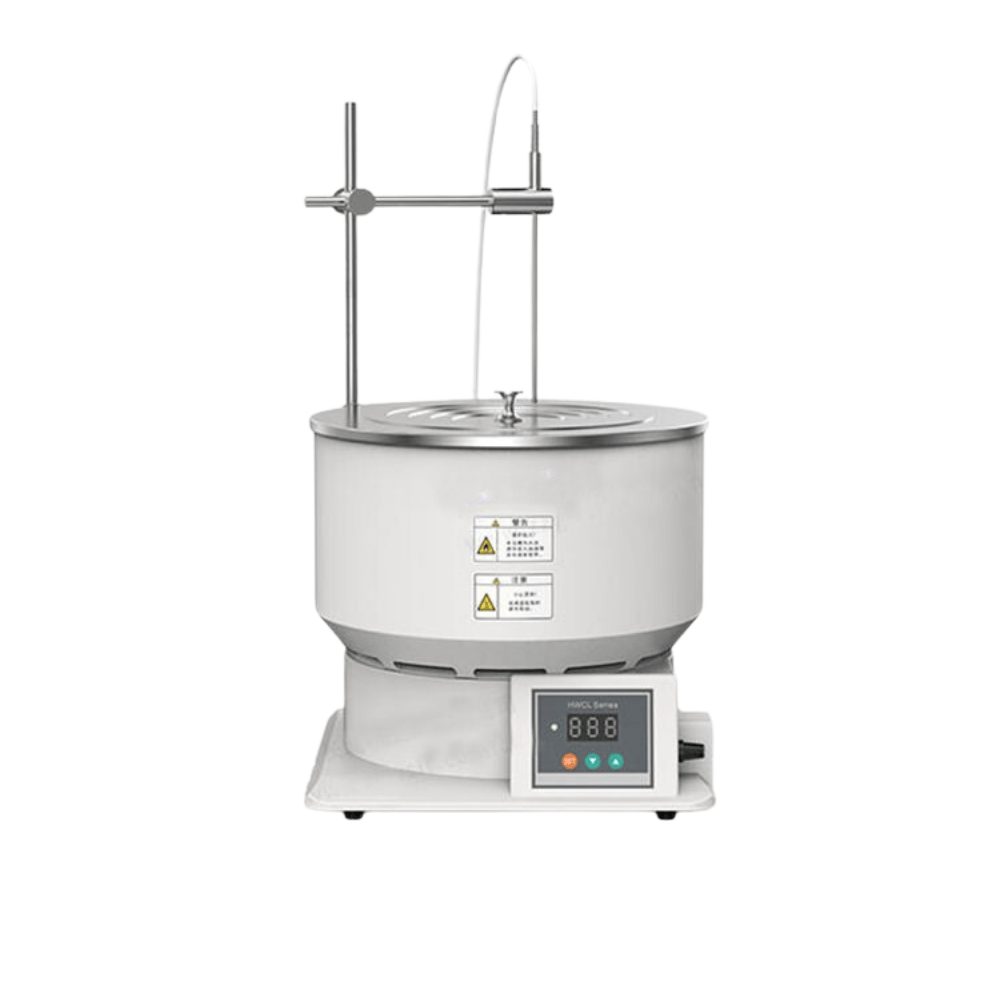

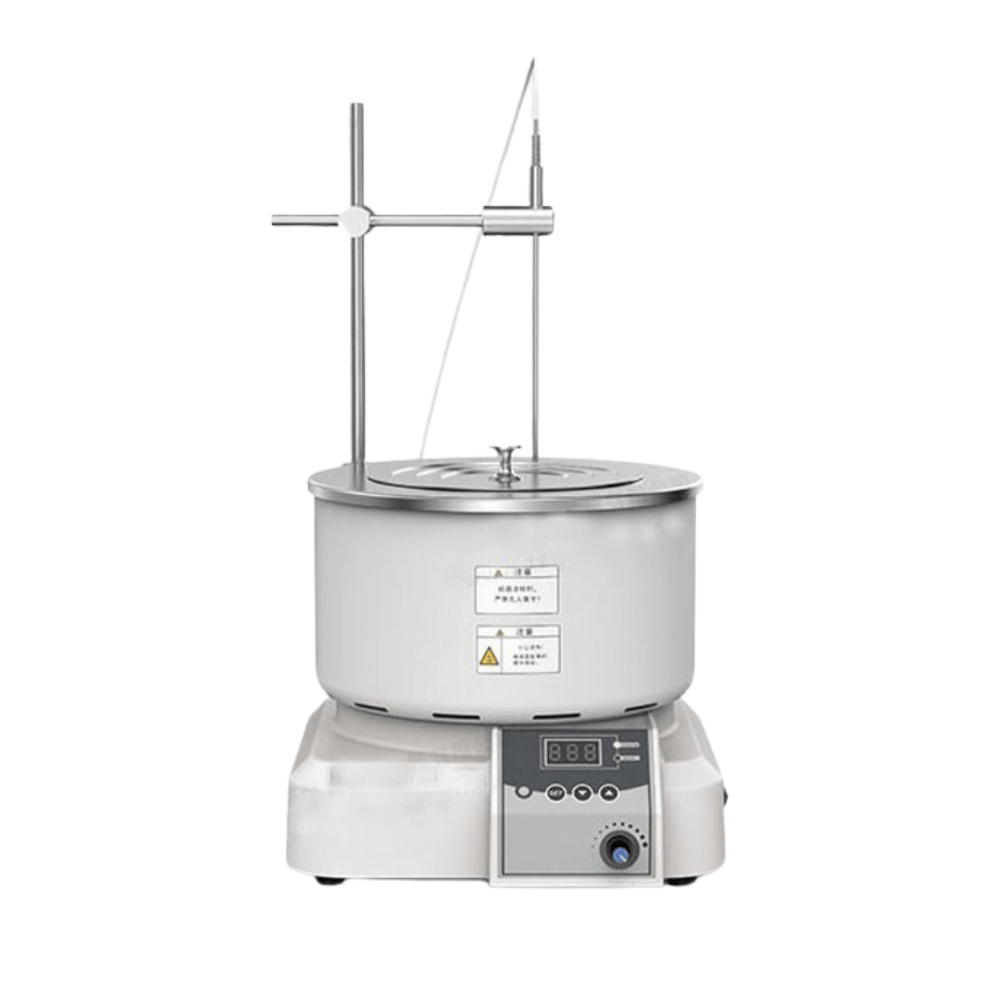

Thermostatic Magnetic Stirring Bath, CA-WB-S Series
- Stirring Speed (rpm): 0~2000
- Bath Capacity: 4L, 6L, 6.5L
- Temperature Range: Room Temperature + 5~200℃
- Temperature Stability: ±1 ℃
- Temperature Display: Keypad Input, Digital Display
- Max. Flask can be placed (mL): 3000, 5000
Description
Features
1.It can be used as water bath or oil bath. Built-in strong magnetic stirrer in the bath.
2.Stainless steel 304 heater.
3.The magnetic stirring system drives the stirrer to rotate synchronistically, so that the solution in the bath can be heated and stirred evenly.
4.DC brushless motor ensures stable performance and continuous working.
5.High temperature magnet can continuously work at 300°C without losing magnetism.
6.PID temperature controller ensures accurate temperature control.
7.Key setting and digital display make it easy to operate.
8.Equipped with two sensors make bath temperature and container temperature display alternately.
SPECIFICATIONS
| Model | CA-WB-S4 | CA-WB-S6 | CA-WB-S6-1 |
| Temperature Range | Room Temperature + 5~200℃ | ||
| Temperature Stability | ±1 ℃ | ||
| Temperature Display | Keypad Input, Digital Display | ||
| Stirring Speed Setting | Knob Setting | ||
| Stirring Speed (rpm) | 0~2000 | ||
| Bath Dimensions (mm) | Φ220×110 | Φ220×160 | Φ254×130 |
| Bath Capacity (L) | 4 | 6 | 6.5 |
| Heating Power (W) | 500 | 500 | 1050 |
| Max. Flask can be placed (mL) | 3000 | 3000 | 5000 |
| Power Supply (V/Hz) | 110V~, 60Hz or 220-240V~, 50/60 Hz | ||
| Dimensions (mm) | 260W×280D×230H | 260W×280D×280H | 260W×280D×260H |
| Package Dimension (W*D*H)(mm) | 350×340×300 | 390×390×550 | 350×300×300 |
| N.W./G.W. (kg) | 5/7 | 5/8.1 | 6/7 |
