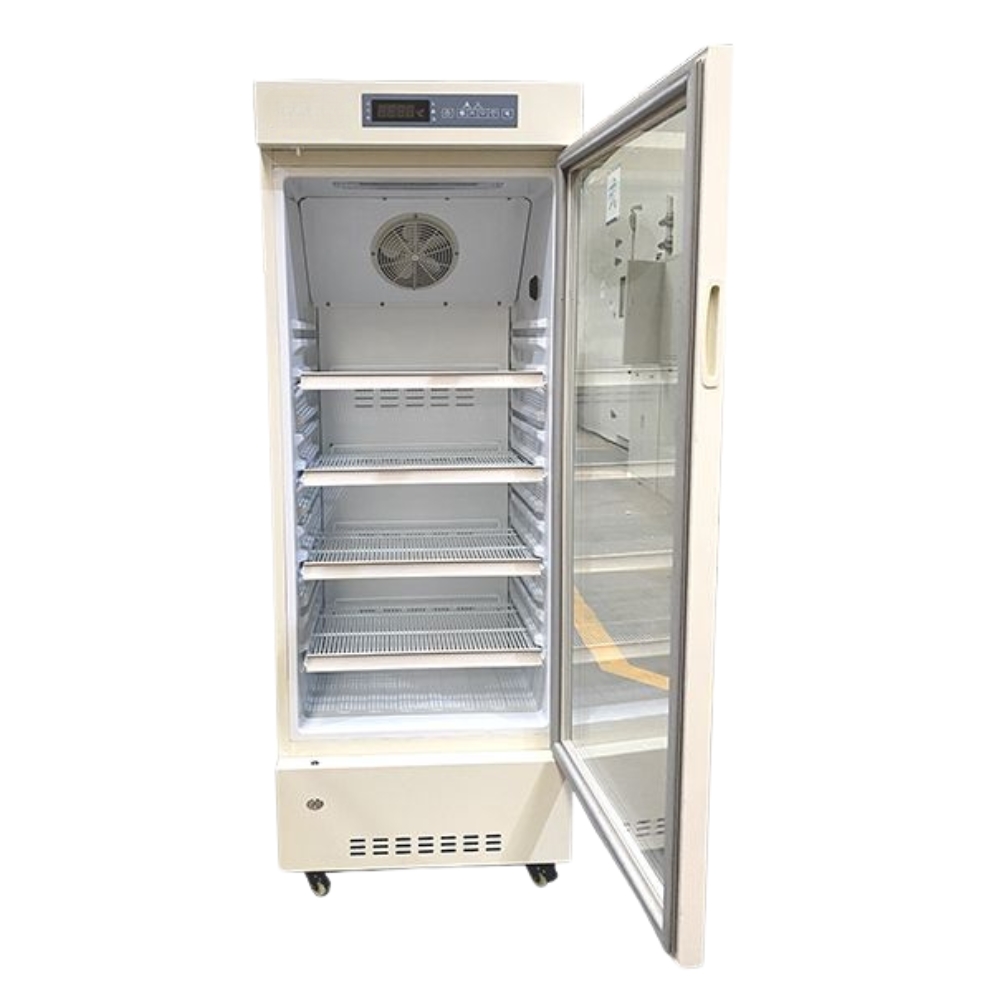

Single Door Medical Vaccine Pharmacy Refrigerator

  • Capacity: 226L
  • Temperature range(℃): 2~8℃
  • Cooling method: Forced Air Cooling System
  • Defrost: Auto
  • Refrigerant: R600a
  • Sensor Type: NTC
  • Temperature controller: Microprocessor
SKU: CA-PR5-250 Category:

Description

Pharmacy Refrigerators are designed with the unique needs of the pharmacy environment in mind and safely store vaccines, drugs, reagents, specimens, etc.

Reliability and Key Features

High efficiency specially compressor with known field proven reliability.
Permanently lubricated cooling fan for safety and longevity.
Forced-air cooling with optimized air distribution system designed.
To achieve maximum temperature uniformity and stability.
Optimized refrigeration system design for more effective cooling and speedy recovery.
Temperature variation within ±3℃.
Adjustable temperature range 2-8℃.
Microprocessor control digital display, and temperature adjustment with an increment of 0.1℃.
Large digital display screen.

Characteristic Function
Safety door lock design to avoid door ajar.
Big digital screen display for easy observation.
Adjustable shelves.
Inner light design for a clear display.

Safety of Pharmacy Refrigerators
Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
Capable of alerting failures due to high and low temperature sensor error, door ajar, power failure and low battery.

Forced Air-cooling System
Advanced forced cooing system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced air cooling system to ensure no-frost inside.

Ergonomic Design
Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
Safety lock to prevent unauthorized access.
Caster design and leveling legs LED interior light.

Specifications

Model PR5-250
Capacity (L) 226
Dimension (W*D*H) Internal (mm) 534*406*1150
External (mm) 625×574×1707
Temperature Range (℃) at RT.10~32℃ 2~8(Optional 2~10 ; 2~14)
Sensor NTC
Controller Microprocessor
Cooling system Refrigerant R600a (CFC Free )
Defrost Auto
China Compressor Qty 1
Display Digital display
Audible&Visible Alarm High/Low temperature Standard
High ambient temperature /
Abnormal voltage /
Power failure backup system(alarm) 8h
Door ajar Standard
Material Internal Blister liner
External Electro-galvanized steel with antimicrobial powder coating
Accessories USB port Optional
Casters Standard
Chart recorder /
Temperature data logger Optional
Remote alarm port Standard
Test hole (Qty) / Diameter (mm) 1/25
Shelves / Drawers (Qty) Shelves/4
Sound Emission (dB) 50
Electricity Voltage/Frequency AC110/220V±10%, 50/60Hz
Consumption (W) 221
N.W./G.W. (Kg) 73/76
Shipping Dimension  (W*D*H) (mm) 680*720*1850
