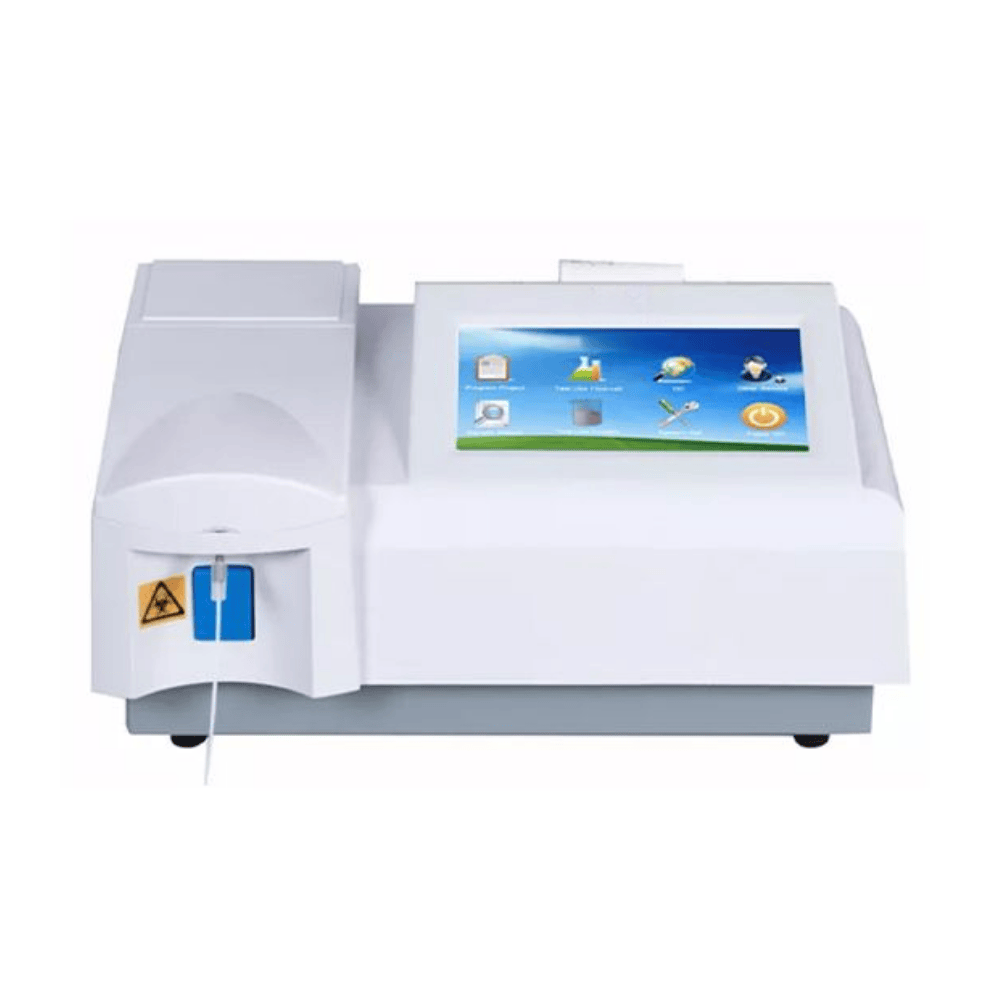

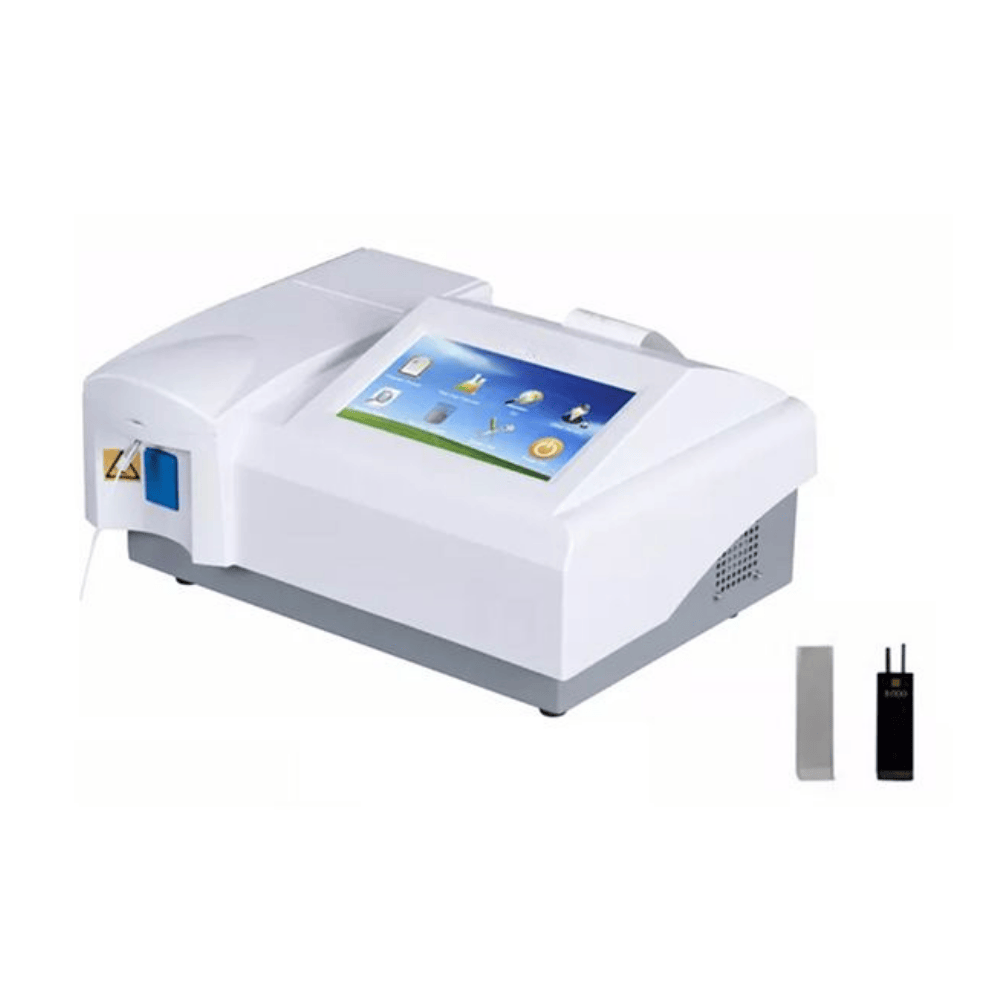

Semi-auto Biochemistry Analyzer, CA-BA-SA-100B
- Memory for 10,000 sample results and 150 test items
- Adopt 7 inch color LCD touch screen
- Wavelength precision:±2 nm, width≤ 10nm
- ARM series high speed micro CPU
- Built-in thermal sensitive printer
- 7 standard filters
Description
Semi auto biochemistry analyzer is widely used in medical institutions to quantitatively analyze the clinical chemical components of serum, plasma and other samples, such as the detection of liver function, kidney function, blood lipids, myocardial enzymes, inorganic ions and other biochemical items.
Features
- 7 inch color LCD; Touch screen
- Flow cell and cuvette test mode compatible
- Real time curve showing
- 7 wavelength , 80 test item pre-programmed
- Memory for 10,000 sample results and 150 test items
- Light source hibernate function making lamp life longer
- RS232 interface, PC connecting
Specifications
| Model | CA-BA-SA-100B |
| Test mode | Kinetic, End point, Two point, Absorbance |
| Wavelength | 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position |
| Wavelength precision | ±2 nm, width ≤ 10nm |
| Absorbance range | 0~4.500 Abs |
| Absorbance precision | Outside 0.0001 Abs , inside 0.00001 Abs |
| Carry over | < 1% |
| Repeatability CV | < 1% |
| Sample volume | 0~3000 μL (≥500 μL recommend) |
| Data Storage | ≥10000 |
| Quality control curve | 、SD、CV%、L-J quality control curve for every test item |
| Flow cell | 32 μL quartz glass, 10 mm |
| Lamp | Philips 6V 10W Halogen Lamp with long life |
| Screen | 7 inches color LCD |
| CPU | ARM series high speed micro CPU |
| Printer | Built-in thermal sensitive printer |
| Work environment | Temperature 0℃ ~ 40℃, Humidity: ≤80% |
| Electricity | 100~240VAC，50-60Hz，100VA |
| Dimension(L*W*H) | 360*270*180 mm |
| Packing dimension (L*W*H) | 500*460*290mm |
| Net weight | 5 kg |
| Gross weight | 7.5kg |
| Optional language | English; French; Spanish; Portuguese; Indonesian |
| Usual test list | Liver function:ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3
Renal function :BUN CRE UA URE CO2-CP γ-GT Lipids:T-CHO TG HDL-C LDL-C Cardiac function:CK CK-MB LDH Immune proteins:IGA IGG IGM C3 Others:GLU HGB AMS |
