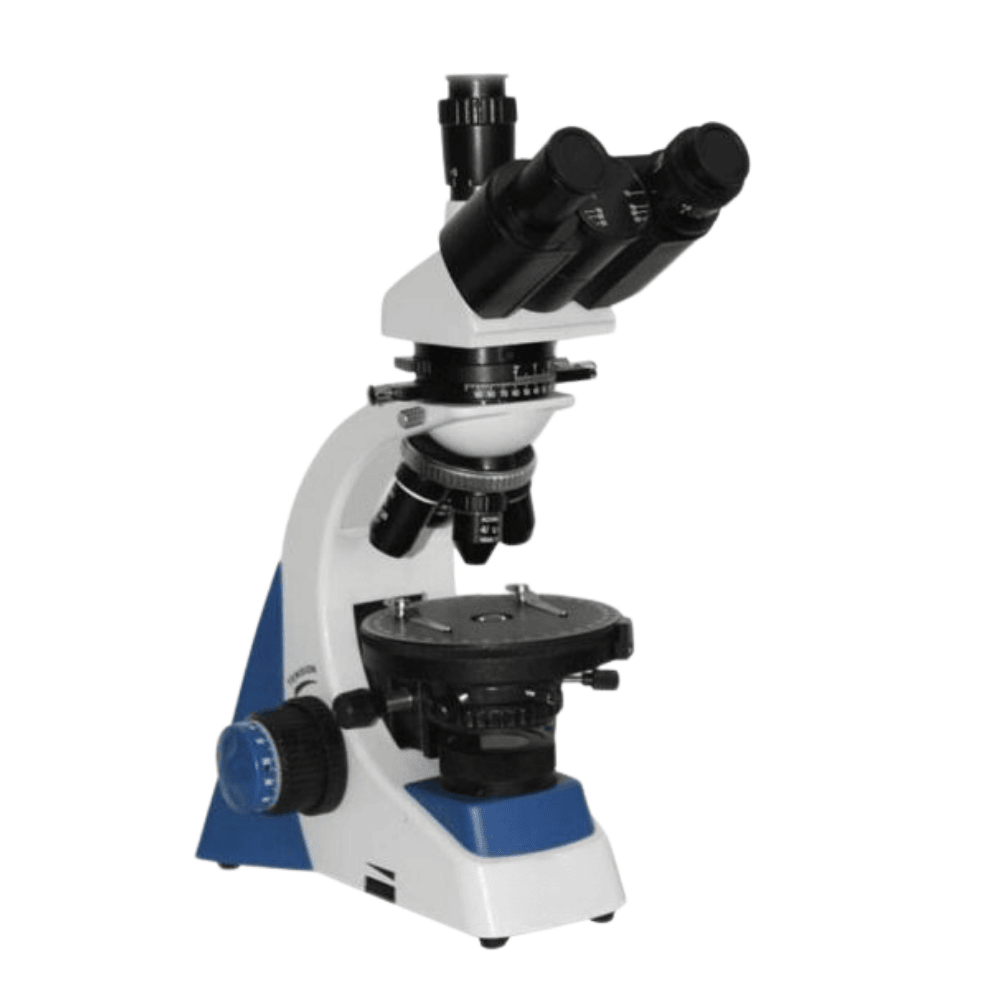

Model |
MSC-P1T |
Optics |
Finite Distance Optical System |
Observation Tubes |
Tilting trinocular,interpupillary 55-75mm |
Viewing Head |
Seidentopf head ,inclined at 30° |
Optical Coating |
Transmittance ≥ 95% |
Eyepiece |
WF10×18mm |
Objective |
Achromatic objective:4X、10X、40X(s)、100X(s,o) |
Nosepiece |
Quadruple nosepiece |
Analyzer |
Rotatable analyzer with gradation 0°-90°; Sliding in/out of optical path |
Optical Compensator |
λSlip(First class red) ; 1/4λSlip |
Stage |
Diameter φ160mm, 360°rotatable and graduate in 1°increments, minimum resolution 6’when using venire scale, center adjustable (*Heating function) |
Condenser |
Abbe Condenser NA 1.25 with Iris diaphragm&filter |
Focusing |
Coaxial coarse&fine adjustment, range 14mm, fine division 0.01 |
Polarizer |
360° Rotatable located |
*Software |
Petrographic software |
Illumination |
1W LED, Brightness adjustable |
Electricity |
100-240V AC,50/60Hz |
Package Dimension (W*D*H) (mm) |
370*250*500 |
Gross Weight (Kg) |
5.8 |
*Optional |
MSC-P1T: Microscope Camera (Standard Imaging Software/*Petrographic software) / Win 10 Pad / Digital display |
*Optional Configuration |
