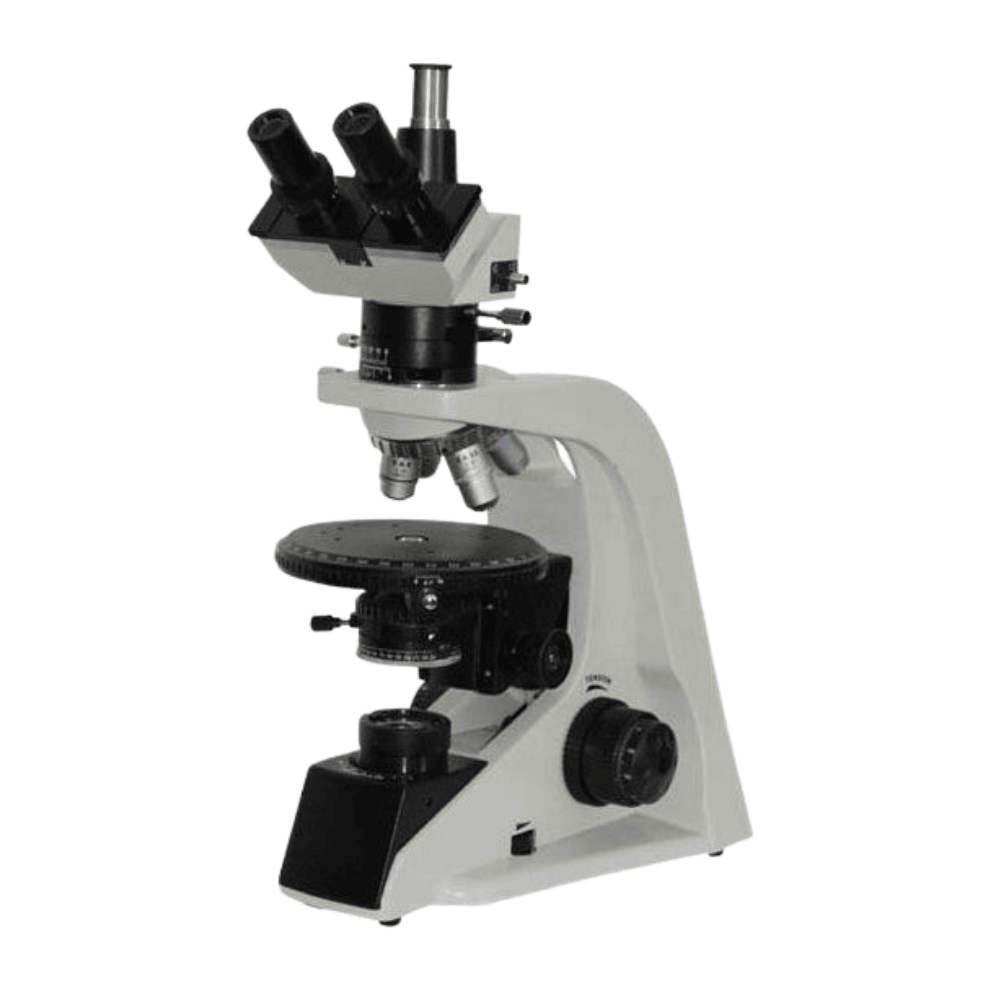

| Model |
MSC-P200T |
| Optics |
Finite Distance Optical System |
| Observation Tubes |
Tilting trinocular, interpupillary 55-75mm |
| Viewing Head |
Sliding head ,inclined at 45° |
| Optical Coating |
Transmittance ≥ 95% |
| Eyepiece |
WF10X/18, WF10X/18mm with scale of crosshair 0.1 mm |
| Objective |
Strain free achromatic objective: 4X、10X、 40X、 63X |
| Nosepiece |
Quadruple nosepiece |
| Analyzer |
Rotatable analyzer with gradation 0°-90°; Sliding in/out of optical path |
| Optical Compensator |
λ Slip(first class red) ; 1/4λ Slip |
| Stage |
Diameter φ160mm, 360°rotatable and graduate in 1°increments, minimum resolution 6’when using venire scale, center adjustable |
| Condenser |
Abbe condenser NA 1.25 with iris diaphragm&filter |
| Focusing |
Coaxial coarse&fine adjustment, range 35mm, fine division 0.002 |
| Polarizer |
360° Rotatable located |
| *Software |
Petrographic software |
| Illumination |
6V/20W Halogen lamp, brightness adjustable |
| Electricity |
100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) |
440*300*580 |
| Gross Weight (Kg) |
11.5 |
| *Optional |
Microscope camera (Standard imaging software/*Petrographic software) / Win 10 Pad / Digital display |
| *Optional Configuration |
