Description
It has an excellent design, requires less optical and mechanical maintenance, provides clear viewing and is easy to use.
- Excellent optical system.
- Choice of high-performance objective lenses.
- Ergonomic eyepiece observation tube.
Specifications

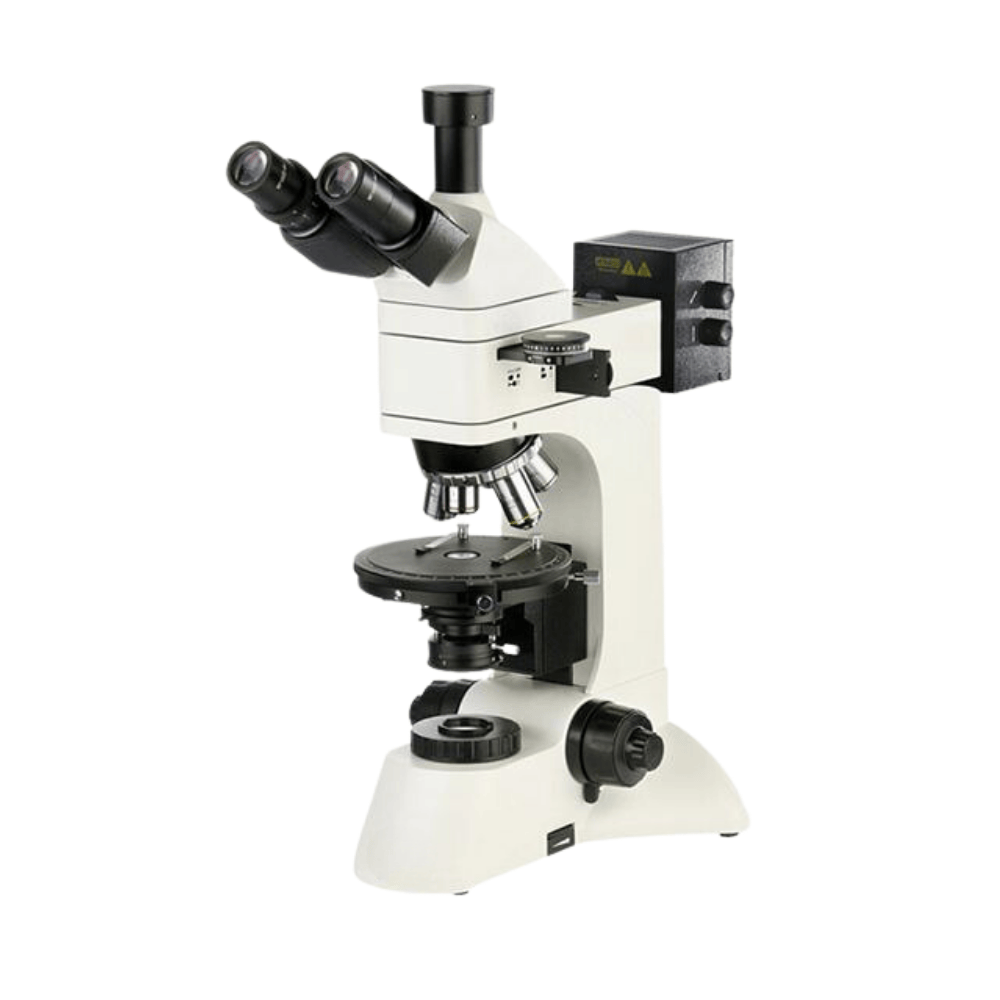

| Model | MSC-P3000(Optional camera) |
| Optics | Infinite Optical System |
| Observation Tubes | Trinocular,interpupillary 55-75mm |
| Viewing Head | Seidentopf head, inclined at 30° |
| Optical Coating | Transmittance ≥ 95% |
| Eyepiece | Large field eyepiece:WF10X(Φ22mm) |
| Graduated ocular: 10X(22mm), 0.10mm/div. | |
| Objective | Stress-free plan achromatic objective lens( no cover glass) |
| PL L5X/0.12 | |
| PL L 10X/0.25 | |
| PL L 40X/0.60(spring) | |
| PL L 60X/0.70(spring) | |
| Nosepiece | Quadruple nosepiece |
| Bertrand Lens | Push-in bertrand lens |
| Analyzer | Rotatable analyzer with gradation 0°-90°; Sliding in/out of optical path |
| Optical Compensator | λ , λ/4 and quartz wedge compensator |
| Stage | Diameter: φ150 mm, 360 ° equal scale, vernier scale 6 ‘, the center is adjustable, with lock device |
| Condenser | Abbe condenser NA 1.25 with iris diaphragm&filter |
| Focusing | Coaxial coarse&fine adjustment,fine division 0.002mm, with locking and limiting device |
| Polarizer | 360° rotatable |
| Illumination | 6V 30W halogen lamp, brightness adjustable |
| Electricity | 100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) | 360*320*680 |
| Gross Weight (Kg) | 13 |
| *Optional | Microscope camera (Standard imaging software/*Petrographic software) / Win 10 Pad / Digital display |
