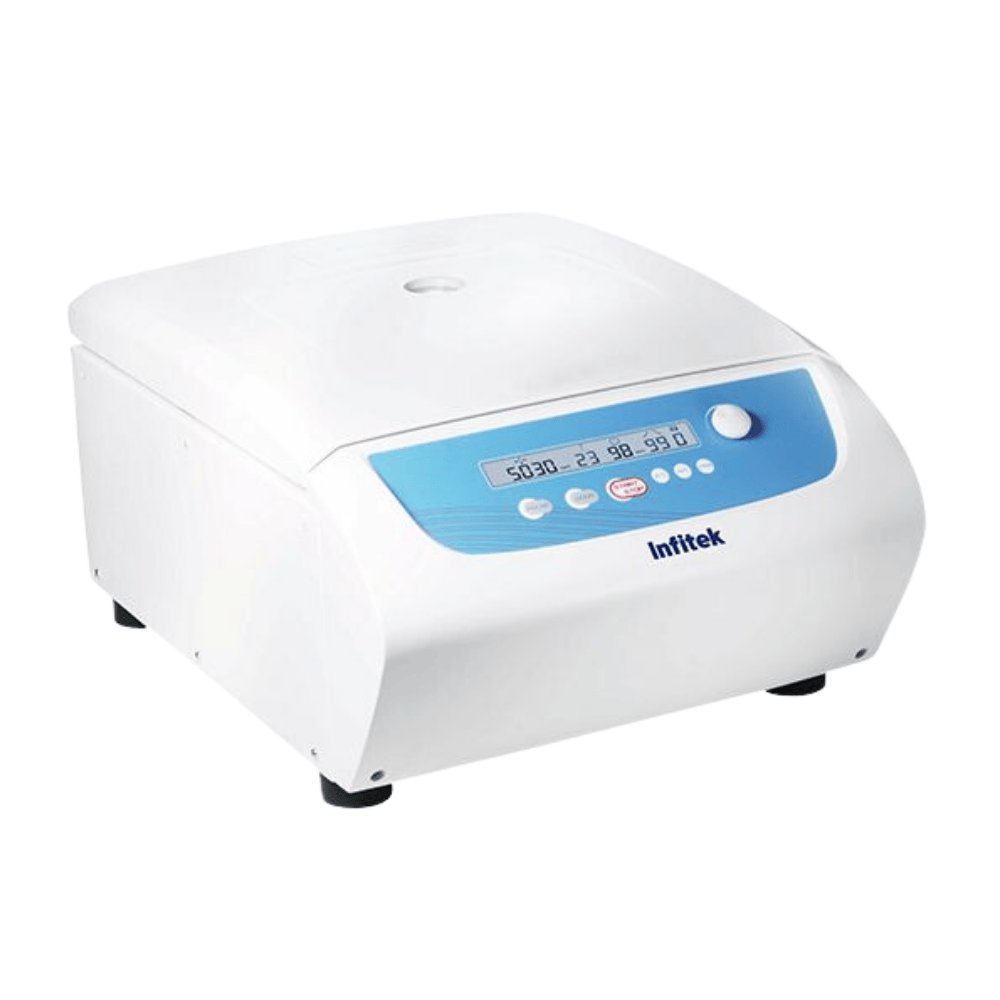

Name: Multi-Purpose Centrifuge, CA-CFG-6D
SKU: CA-CFG-6D
Availability: InStock

Description

CA-CFG-6D Multi-Purpose Low-speed Centrifuge is ideal for the centrifugation of samples in clinical chemistry, cytology, research laboratories, industrial laboratories, etc.

This centrifuge is suitable for tubes with caps, blood collection or urine tubes. Swing-out bucket rotors and adapters can be compatible with standard tubes up to100mL at low speed.

Features

Speed range: 300- 6000rpm.
Maximum capacity: 100 ml×4.
9 acceleration/10 brake speed settings to ensure optimal separation.
A wide range of rotors optional (Angle Rotor and Swing Rotor).
Automatic rotor identification.
Timers can be set up to 99 min or HD for continuous running.
Pulse key for quick spin function.
9 procedures stored in memory makes the operation much simplified.
Maintenance-free brushless DC motors.

Specifications

Specifications	CA-CFG-6D
Speed range	300-6000rpm increment:10rpm
Max. RCF	4020×g
Speed accuracy	±20rpm
Max. Capacity	100mLx4
Run Time	30sec-99mins/continuous
Motor	Brushless DC
Display	LCD
Program Memory	9
Safety Devices	Door Imbalance protection Over speed & Over temperature detection
Acceleration/Deceleration	9↑/10↓steps
Power	660W; Single-phase AC220V-240V, 50Hz/60Hz, 6.3A; AC110V-120V,50Hz/60Hz,10A
Dimension[W×D×H]	445mm×579mm×269mm
Weight	36 kg
Advanced features	speed/rcf switch; Rotor identification

Available Adapter

centrifuge rotors (1).png

Uncapping block

CAT. NO. 19400041(Standard accessory)

for CFG-6D

Max. speed: 4000rpm

Max. RCF: 2950×g

Rotor material: stainless steel body and adapter

CAT. NO. 19500025

15ml conical tube adapter, MOQ 8 Pcs (optional)

Available rotors

	CAT. NO. 19400062 CFG-6D Max. speed: 4000rpm Max. RCF: 2200×g Rotor capacity: Micro-plates 384-PCR/96-PCR/Elisa plates×8pcs; Deep well plates×4pcs Rotor material: stainless steel body and aluminum buckets
	CAT. NO. 19400036 CFG-6D Max. speed: 6000rpm Max. RCF: 4020×g Rotor capacity: PCR 8 trips×12 Rotor material: aluminum Biosealing: Yes
	CAT. NO. 19400034 CFG-6D Max. speed: 6000rpm Max. RCF: 4020×g Rotor capacity: 2mL×30 Rotor material: aluminum Biosealing: Yes
	CAT. NO. 19400037 CFG-6D Max. speed: 6000rpm Max. RCF: 4020×g Rotor capacity: 2mL×60 Rotor material: aluminum Biosealing: Yes
	CAT. NO. 19400038 (cone button) CFG-6D Max. speed: 6000rpm Max. RCF: 4020×g Rotor capacity: 50mL×6 or 15mL×6 Rotor material: aluminum Biosealing: Yes
	CAT. NO. 19400035 (cone button) CFG-6D Max. speed: 6000rpm Max. RCF: 4020×g Rotor capacity: 5mL×18 Rotor material: stainless steel body and aluminum buckets Biosealing: Yes
	CAT. NO. 19400039 (round button) CFG-6D Max. speed: 5000rpm Max. RCF: 3960xg Rotor capacity: 50mL×8 or 15mLx16 Rotor material: aluminum body and stainless steel adapter
	CAT. NO. 19400040 (round button) CFG-6D Max. speed: 4500rpm Max. RCF: 3210xg Rotor capacity: 15mL×30 Rotor material: aluminum body and stainless steel adapter Bio-safe (Bio-sealing): Yes
