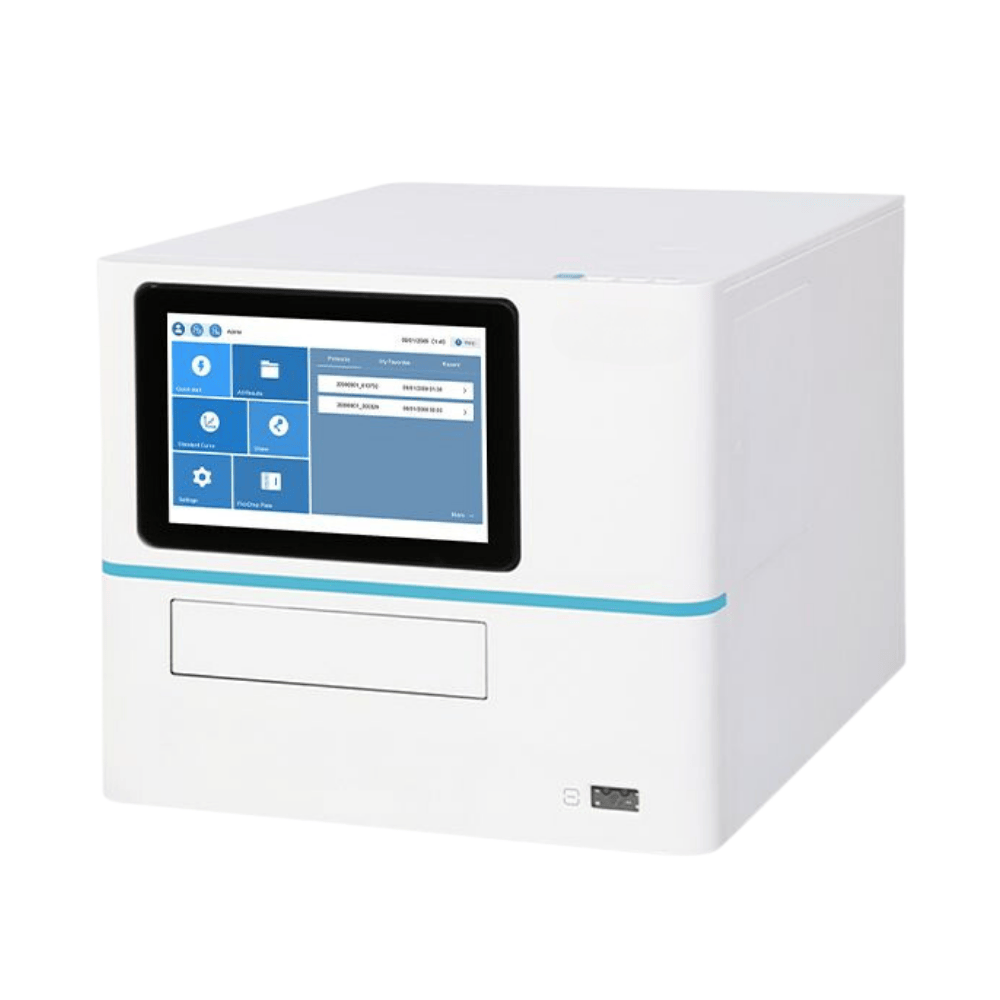

Microplate Reader, CA-MPR-A300
- Microplate types:6/12/24/48/96/384 wells
- Function: Absorbance, fluorescence, luminescence
- 10-inch LCD display
- Support PC（PC software requires a fee） software, Win7 to Win10 64 bit
Description
It is equipped with a 10-inch touch screen, no need to connect a computer. The layout, operating parameters, and algorithm settings and the other information can be completed by a single machine.
Features
- Offers affordable high performance detection solutions, powered by monochromator and filterbased technologies.
- A high performance multimode detection instrument to provide a simple means of detectingadvanced chemistry.
- Compatible with the customers modular upgraded functions. Users can upgrade to equip the low volume u-Nano Ultra-Micro plate and the automatic injector as your need.
- The instrument is operated by an Android system, a 10-inch touch screen, APP software, which provides quick-to-use and easy navigation through the control options. Exporting your result and dataare seamless with a variety of options, including export to your local data network.
- The built-in software of the instrument includes multiple algorithm analysis functions of standard curve, qualitative and quantitative, basic calculation, kinetics, spectroscopy and etc.
- It has a code scanning function, which can not only identify the filters information, but also create a QR code for the experimental program or standard curve. Researcher can quickly import the experimental program into the instrument through the QR code.
Specifications
| Basic Information | |
| Model | CA-MPR-A300 |
| Function | Absorbance, fluorescence, luminescence |
| Microplate Types | 6/12/24/48/96/384 wells |
| Absorbance | |
| Light Source | High energy xenon flash lamp |
| Detector | PD |
| Wavelength Accuracy | 2nm |
| Wavelength Repeatability(SD) | 0.2nm |
| Half Width (FWHM) | <2.5nm |
| Wavelength Range | 200-1000nm, 1nm step |
| Measuring Range | 0-4 OD |
| Resolution | 0.0001 OD |
| Accuracy | 96-precision mode ±(1.0 %+0.003Abs) @ (0.0-2.0Abs]±2.0 % @ (2.0-3.0Abs] |
| Repeatability | CV < 1.0 % or SD< 0.003 Fast (0.0-3.0Abs]
CV < 0.5 % or SD< 0.003 Accurate (0.0-3.0Abs] |
| Stray Light | 0.1 % @ 220nm |
| Linear | R2>0.999 @ [0.0-3.0Abs] |
| Reading Time | 96-well plate: fast <15s |
| Fluorescence | |
| Reading Mode | Top reading |
| Excitation Light Source | High energy xenon lamp |
| Detector | PMT |
| Wavelength Range | EX: 200-1000nm; EM: 270-850nm |
| Filter EX / EM | 3 groups: EX470/EM525, EX523/EM564, EX624/EM692 (other wavelengths can be replaced) |
| Detection Limit | ≤1pm |
| Linear Dynamic Range | 6 logs |
| Luminescence | |
| Detector | PMT |
| Detection Limit | 15amol / hole |
| Linear Dynamic Range | 6 logs |
| Crosstalk | ≤0.005 % |
| Shaking & Incubation | |
| Shaking Mode | Linear, circular, double circular |
| Incubation Temperature | RT. +4 °C to 45 °C |
| Temperature Uniformity | ±0.5 °C @37 °C |
| Software | |
| Software Interface | English |
| Screen Size | 10-inch LCD display |
| Operation Method | Touch capacitive screen; use mouse |
| Data Capacity | 10GB |
| Compatibility | Support PC software, Win7 to Win10 64 bit |
| Data Transmission and printer | Test data report can be uploaded to PC server via FTP.Connect the printer through the PC end |
| Others | |
| Instrument Port | 2 USB A type ports / 1 USB B type port
1 Ethernet port RS 232 bus interface (injector connection) |
| Electricity | AC 100~240 V, 50~60 Hz |
| Power | 160W, 24V, 6.67A (can be adjusted according to hardware requirements) |
| External Dimension(W*D*H) | 420*550*386 mm |
| N.W./G.W. | 33kg/70kg |
| Package Dimension(W*D*H) | 800*780*800mm |
| u-Nano Ultra-Micro Plate (Optional) | |
| Number of Samples | 1-16 |
| Sample Detection Volume | 2-4μL |
| Automatic Injector Module (Optional) | |
| Quantity | 1, 2 |
| Dispensing Volume | 5-1000μL, 1μL increment |
| Liquid Injection Speed | 125-500μL / s |
| Accuracy | ±1μL @ 5-50μL ±2% @ 51-1000μL |
| Waste Liquid Collection | 50mL |
| PC Software (Optional) Readerlt-ll | |
| Modular Filter (Optional) | |
| ABS Optical Performance Validation Board（Optional） | |
