Description

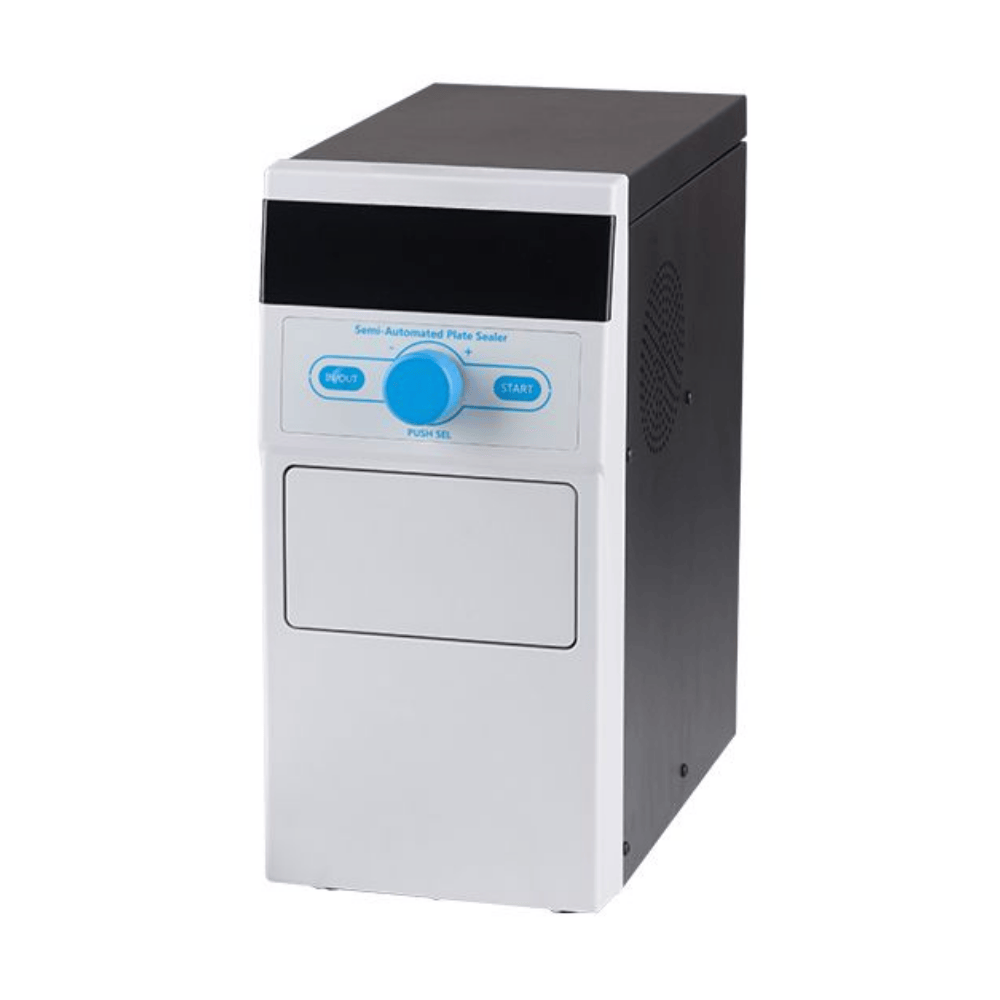

The Semi-Automated Plate Sealer is used for sealing a wide variety of microplates (ELISA, cell culture, PCR and deep-well plates) to store samples, prevent evaporation and minimise contamination. It is applicable for a variety of heat seals, meeting any laboratory application, including PCR, colourimetric, fluorescence, long long-term storage. A plate sensing system allows for to provision of uniform force, transferring heat evenly to the sealing surface, whether using PCR plates or deep-well plates.
Features
Functions
Rapid heating(reaching 170C in 300seconds)
Adjustable Sealing Temperature: 80 °C ~170 °C
Applicable for different microplates and heat seals.
Precise temperature, timing and pressure for consistent sealing.
Safety
If a hand or objects are stuck in the drawer when it’s moving, the drawer motor will reverse automatically. This feature prevents both the user and the unit from injury.
Special and smart design on the drawer, which can be detached from the main device.
Power save mode
If the unit is left on but inactive for long periods, it will enter a power-saving mode.
When the unit is inactive for 60 minutes, it will switch into stand-by mode. Then the temperature will be reduced to 60 °C to save power.
When the unit is inactive for 120 minutes, it will switch into Power-Save mode. The display and heating element will be switched off. The user can awaken the unit by pressing any button.
Specifications
| Model | CA-SLM-P1000 |
| Display | OLED |
| Sealing temperature | OFF, 80°C ～200°C(increment of 1.0°C) |
| Temperature accuracy | ±1°C |
| Temperature uniformity | ±1°C |
| Sealing time | 0.5s～10s(increment of 0.1s) |
| Seal plate height | 9~48mm |
| Power | 300W |
| Dimension(D*W*H) | 370*178*330mm |
| Weight | 11.46kg |
| Compatible plate materials | PP(Polypropylene)
PS(Polystyrene) PE(Polystyrene) |
| Compatible plate types | Standard Assay Plates
Deep-well Storage Plates PCR Plates: skirted, semi-skirted, non-skirted |
| Compatible Sealing Film Types | Foil-polyproylene laminate
Clear polyester-polypropylene laminate Clear polymer Thin clear polymer |
