| Model |

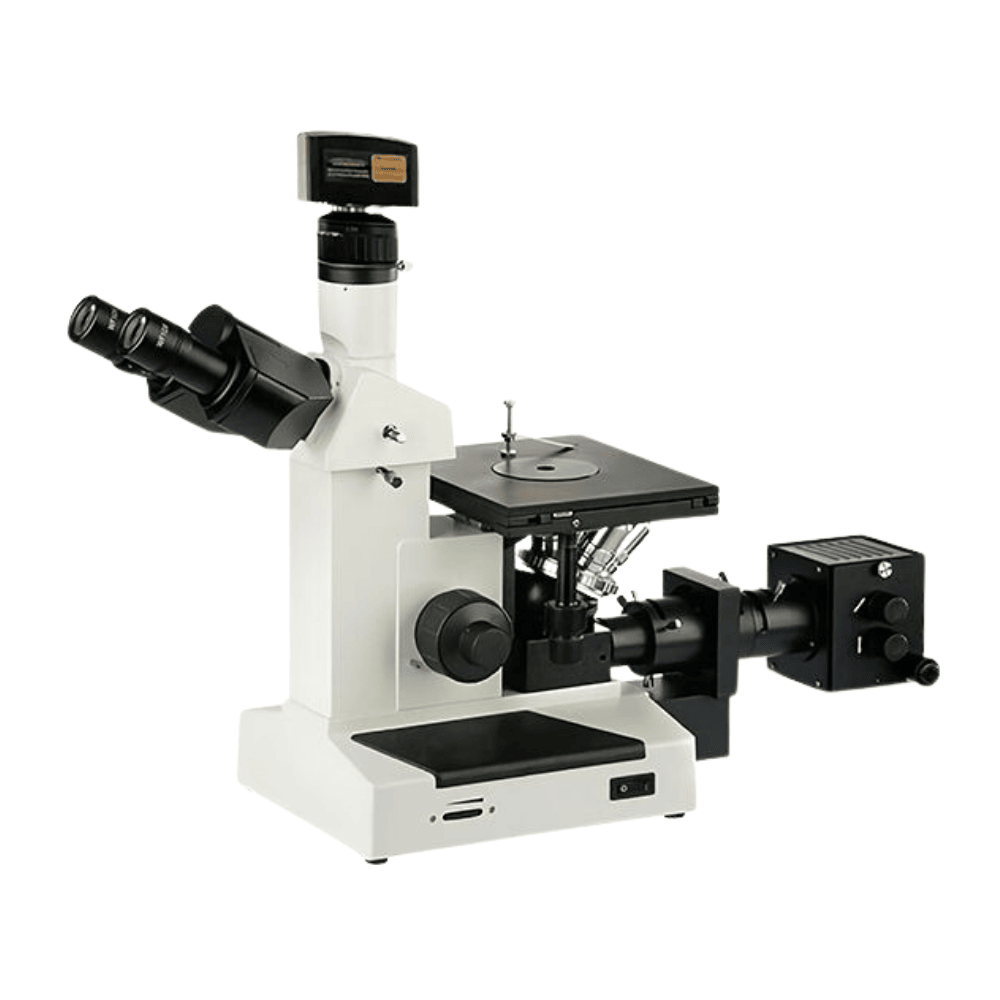

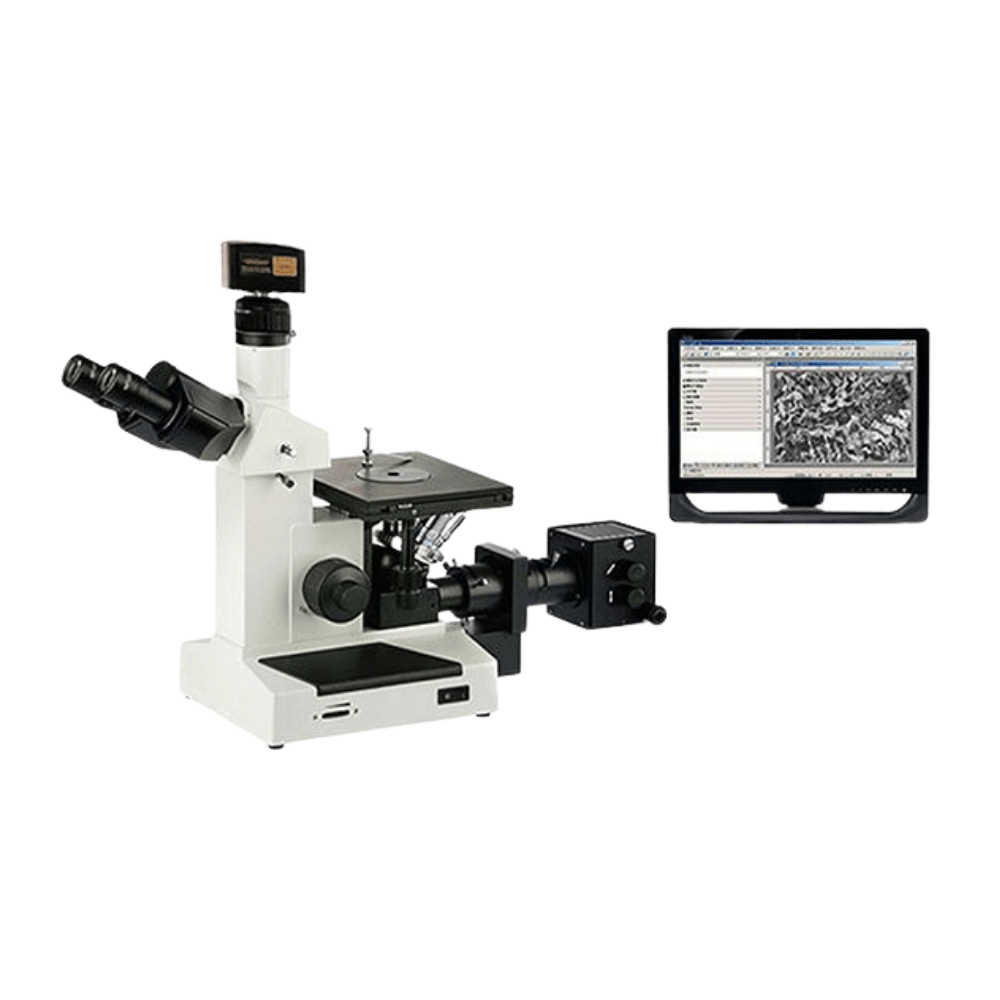

MSC-M4XC |
| Optics |
Finite Distance Optical System |
| Observation Tubes |
Tilting binocular, interpupillary 55-75mm |
| Viewing Head |
Seidentopf head, inclined at 30° |
| Optical Coating |
Transmittance ≥ 95% |
| Eyepiece |
WF10X/18mm, with scale of cross hair |
| Objective |
PL L10X/0.25 LWD 8.9mm |
| PL L20X/0.40 LWD 3.75mm |
| PL L40X/0.60 LWD 2.69mm |
| SPL 100X/0.90 LWD 0.44mm |
| *PL L50X/0.70 LWD 2.02mm |
| *PL L60X/0.75 LWD 1.34mm |
| *PL L80X/0.80 LWD 0.96mm |
| *PL L100X/0.85 LWD 0.4mm |
| Nosepiece |
Backward quadruple /Backward *Quintuple |
| Stage |
Double layer mechanical stage 180×150mm, moving range 15mm×15mm |
| Focusing |
Coaxial coarse and fine adjustment, fine division 2um |
| *Software |
*Grain size analysis software |
| Illumination System |
6V/20W halogen light, brightness adjustable |
| Polarizer and analyzer |
| Green, blue, yellow filter |
| Electricity |
100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) |
400×300×450 |
| Gross Weight (Kg) |
11 |
| *Optional |
Photo/Video attachment; Micrometer scale 0.01mm; Fluorescent attachment |
| *Optional Configuration |
