Description

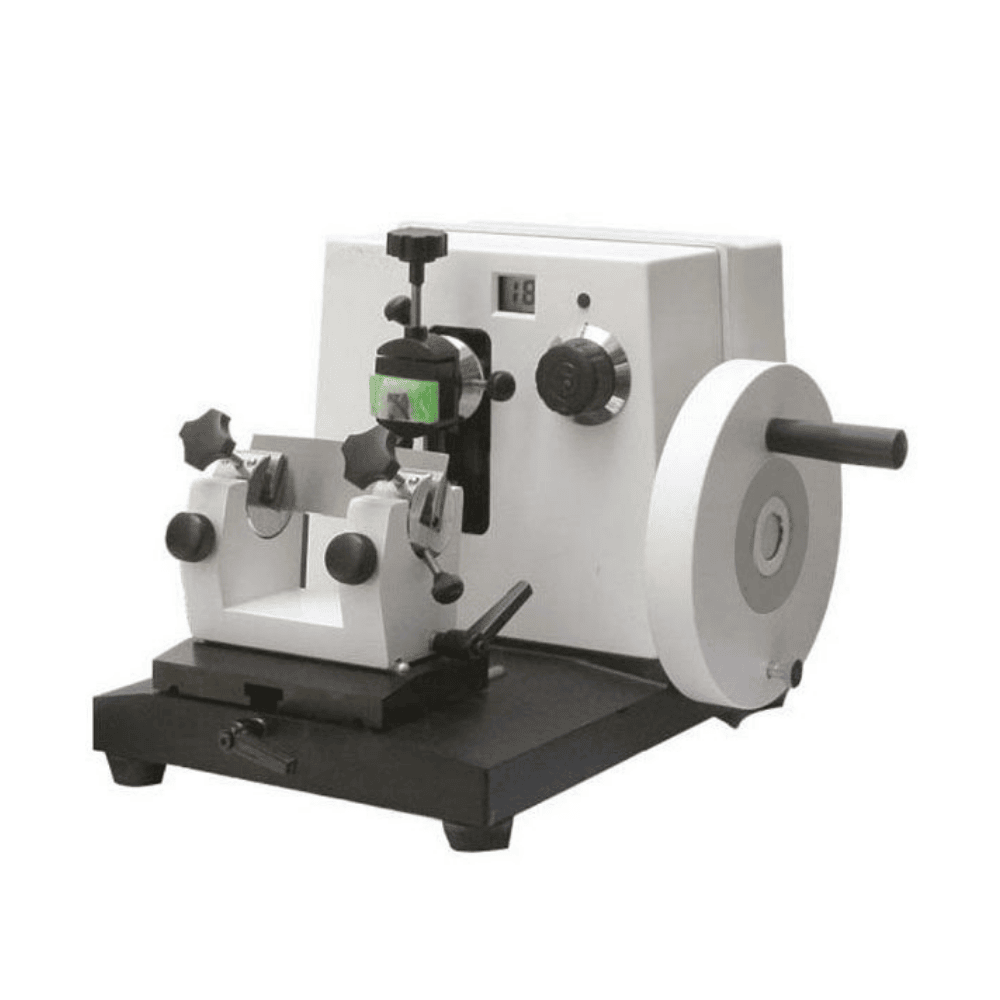

CA-RMT-202A Rotary Microtome is a new 202 series possessing multiple features, such as a neat streamlined-shape housing, a hand-wheel that can be locked at the highest position, a safe change specimen cassette, an LCD display, and a safety alert system. This well-made and cost-competitive product can provide evenly sliced sections reliably and safely.
- Easy-to-clean housing
- The blade holder can be moved forward or backward and left or right, resulting in easy trimming and sectioning operations
- LCD screen shows the number of sections and trims, equipped with a safety alarm system
Application:
Used for plants, animals, biology, internal organs, bones in Research institutes, scientific research units
Specifications
| Model | CA-RMT-202A |
| Section thickness range | 1~25μm continuous slicing, >25μm arbitrarily adjust the slice thickness 1~40μm continuous slice,>40μm arbitrarily adjust the slice thickness (optional) |
| Trimming Thickness Setting Range | 0– 500μm |
| Minimum Setting of Sectioning Thickness | 1μm |
| Specimen Orientation | XY – 8° |
| Total Horizontal Specimen Feed | 30mm |
| Vertical Specimen Stroke | 55mm |
| Movement Range of the Base of the Blade Holder Base | 0-50mm (front and back) |
| Movement Range of the Base of the Blade Holder Base | 0-20mm(left and right) |
| Maximum Specimen Size | 36mm×22 mm (optional clamp40mm×32 mm) Standard wax block clip |
| Precision Error | ±5％ |
| Dimensions | 340×335×270mm(W×D×H) |
| Net weight | 19kg |
