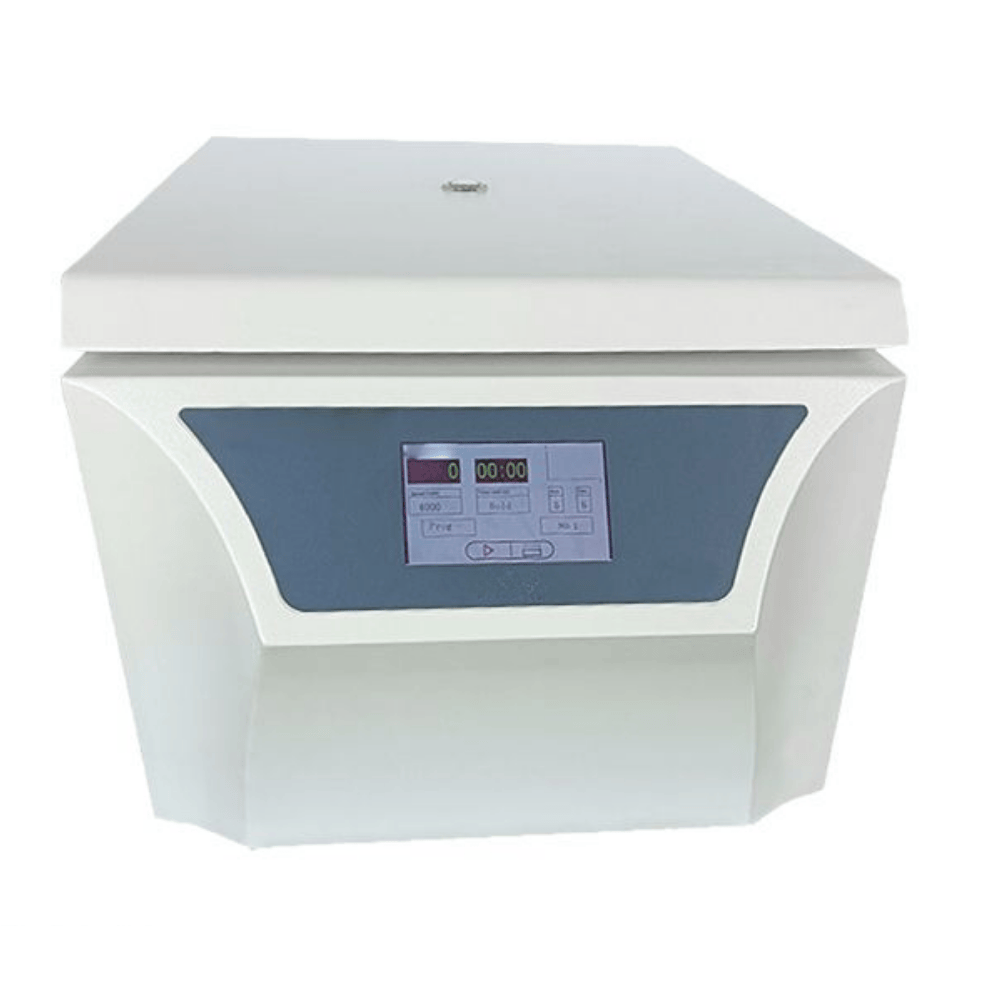

Low Speed Benchtop Centrifuge, CA-CFG-5BL

  • Max. Speed: 6000rpm
  • Max. RCF: 3800×g
  • Max.Capacity: 4×500mL
SKU: CA-CFG-5BL Category:

Description

It is suitable for separation of biological, chemical, pharmaceutical, biological products and other different liquids.

Advantages

1. 5-inch high-definition touch screen, easy to operate and intuitive display;

2. Automatically identify 4different rotors to eliminate potential safety hazards caused by user misoperation;

3. It has 9 files of acceleration and10 files of deceleration level,which can effectively prevent secondary suspension and have a good centrifugal effect;

4. 15 groups of programs can be stored for users to use;

5. Special air duct, continuous working temperature rise is less than 10℃ at room temperature of 26-28℃;

6. AC variable frequency motor, high speed control precision;

7. Unique two-stage shock absorption; large-capacity rotor has little vibration during operation, runs smoothly, and increases the service life of the instrument;

8. There are various protections such as overspeed, door protection, imbalanceprotection, etc. to ensure the safety of human and machine;

Specifications

Model CA-CFG-5BL
Max. Speed 6000rpm
Max. RCF 3800×g
Max.Capacity 4×500mL
Motor AC frequency conversion motor
Speed Accuracy ±30r/min
Time Setting Timed centrifugation:1min~99 min59sec

Continuous centrifugation : Hold

Power Supply AC220±22V 50/60Hz 10A
Noise ≤60dB(A)
Dimensions(L×D×H) 458mm×620mm×380mm
Net Weight 55kg

Rotor

NO. Max. speed (r/min) Max. RCF(×g) Rotor Type Capacity Dimension of  Test Tube (mm) Picture
NO.1 4000 2810 Swing Rotor 4x2x100ml

(It can be equipped with adapter)



Φ37.5×12

centrifuge rotor
4000 2810 4x100ml

(It can be equipped with adapter)



Φ37.5×123

centrifuge rotor
4000 2810 4x2x50ml Φ29×107
4000 2810 4x50ml Φ29×107 centrifuge rotor
4000 2810 4x8x15ml Φ17×118
4x6x15ml Φ17×118 centrifuge rotor
4x4x15ml Φ17×118
NO.2 4200 3500 4x250ml Φ62×110 centrifuge rotor
NO.3 4000 3040 4×500ml Φ80×137 centrifuge rotor
NO.4 4000 2800 4×12×7/5ml Φ13×110 centrifuge rotor
NO.5 4000 2800 4×18×7/5ml Φ13×110 centrifuge rotor
NO.6 4000 2800 4×24×7/5ml Φ13×110 centrifuge rotor
NO.7 4000 2000 Microplate Rotor 2×2×96 well plate Microplate centrifuge rotor
NO.8 6000 4390 Angle rotor 12×10ml Φ16×83 centrifuge rotor
