Name: Liquid Nitrogen Storage Container, CA-LNS Series
SKU: CA-LNS Series
Availability: InStock

Description

Product Overview

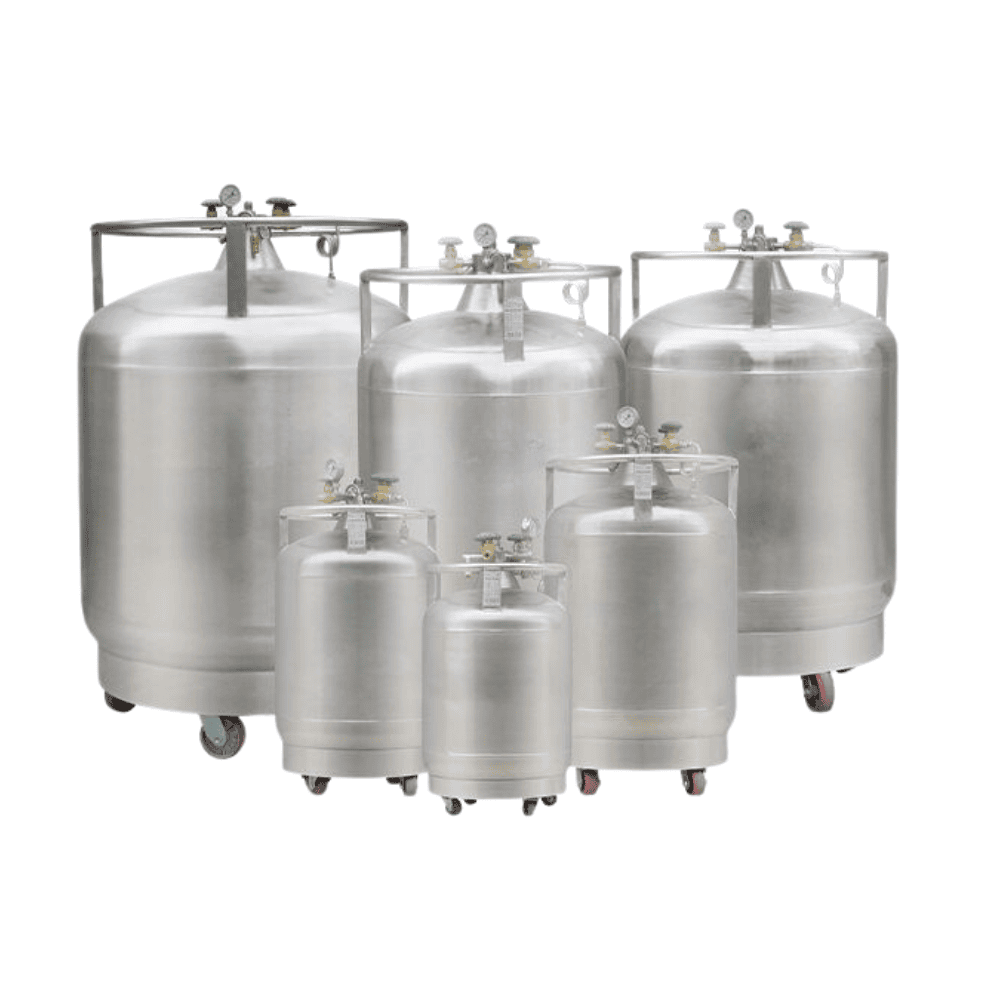

Liquid nitrogen storage container, LNS Series is mainly used for liquid nitrogen storage. It uses small amount of liquid nitrogen vaporizing to increase the pressure inside the tank, so that the tank can automatically discharge liquid nitrogen to other containers. The stainless steel structure design is suitable for most environment and reduces the rate of evaporation losses. All the models are equipped with pressure building valve, liquid valve, release valve and pressure gauge. All the models are equipped with 4 rollers at the bottom for easy to move. This series liquid nitrogen storage container Mainly applicable to laboratory users and chemical users for liquid nitrogen storage and liquid nitrogen automatic supply.

Product Features

Unique neck design, low evaporationloss rate;
A protective operating ring;
Safe structure;
Stainless steel tank;
With rollers for easy to move;

Level display

Unique neck design, low evaporationloss rate

SPECIFICATIONS

Model	CA-LNS-5	CA-LNS-15	CA-LNS-30	CA-LNS-50
Performance
LN2 Capacity (L)	5	15	30	50
Neck Opening (mm)	40	40	40	40
Static Evaporation Rate (L/day)	0.15	0.38	0.75	1
Transfusion Volume (L/min)	≥2	≥2	≥3	≥3
Maximum Storage Capacity
Overall Height (mm)	652	771	900	1009
Outer Diameter (mm)	354	404	454	506
Weight Empty (kg)	19	26	38	54
Weight Full (kg)	23	38.1	62.2	94.4
Standard Working Pressure (mPa)	0.05
Maximum Working Pressure (mPa)	0.09
Setting Pressure of the First Safety Valve (mPa)	0.099
Setting Pressure of the Second Safety Valve (mPa)	0.15
Pressure Gauge Indication Range (mPa)	0~0.25

Model	CA-LNS-100	CA-LNS-150	CA-LNS-200	CA-LNS-300	CA-LNS-500
Performance
LN2 Capacity (L)	100	150	200	300	500
Neck Opening (mm)	40	40	40	40	40
Static Evaporation Rate (L/day)	1.3	1.95	2.4	3.3	5.5
Transfusion Volume (L/min)	≥4	≥6	≥8	≥8	≥10
Maximum Storage Capacity
Overall Height (mm)	1179	1208	1288	1484	1607
Outer Diameter (mm)	606	706	758	858	1008
Weight Empty (kg)	86	107	145	193	273
Weight Full (kg)	166.8	228	307	435	677
Standard Working Pressure (mPa)	0.05
Maximum Working Pressure (mPa)	0.09
Setting Pressure of the First Safety Valve (mPa)	0.099
Setting Pressure of the Second Safety Valve (mPa)	0.15
Pressure Gauge Indication Range (mPa)	0~0.25

Static evaporation rate and static holding time is the theoretical value. Actual evaporation rate and holding time will be affected by container usage, atmospheric conditions and manufacturing tolerances.

Series Configuration Guidelines

Conventional Series	K Series
Standard: Single-layer infusion hose (ZG-DN\10/1.5) Optional: Float level gauge	Standard: Single-layer infusion hose (ZG-DN10/1.5) Digital display level meter and voltage stabilizing device; Suitable for automatic replenishment system.

From 100 to 500 liters, K series can be selected, of which LNS-150 has no conventional series.
