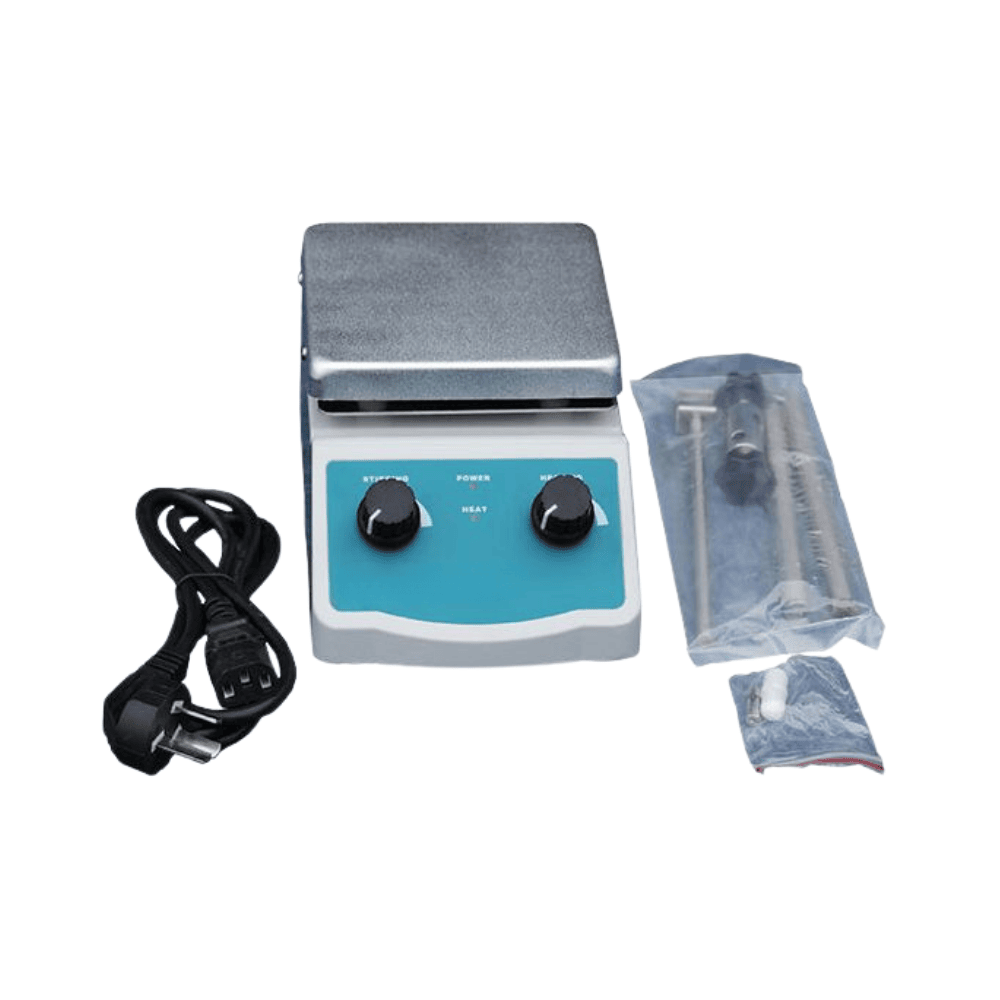

Description
1、Heating power and stirring speed is stepless adjustable.
2、With adjustable Thermometer Rack, Stainless Steel Rods and the Stir Bar.
Specifications
| Model | Hotplate | Magnetic Stirrer | Combination Stirring Hotplate | Hotplate | Magnetic Stirrer | Combination Stirring Hotplate | |
| CA-HPT-380-2A | CA-MGS-2 | CA-HPS-380-2 | CA-HPT-380-3A | CA-MGS-3 | HPS-380-3 | ||
| Function | Max. Volume (ml) | – | 2000 | 2000 | – | 5000 | 5000 |
| Speed (r.p.m) | – | 100~2000 | 100~2000 | – | 100~2000 | 100~2000 | |
| Working time | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | |
| Minimum revolution (r.p.m) | – | 100 | 100 | – | 100 | 100 | |
| Max.Temp. (℃) | 380 | – | 380 | 380 | – | 380 | |
| Structure | Exterior | Cast aluminium, Surface spraying | |||||
| Plate size (mm) | 120×120 | 120×120 | 120×120 | 170×170 | 170×170 | 170×170 | |
| Driving mode | – | Motor | Motor | – | Motor | Motor | |
| Motor power (W) | – | 10 | 10 | – | 20 | 20 | |
| Heating Power (kW) | 0.18 | – | 0.18 | 0.5 | – | 0.5 | |
| Stir bar | – | PTFE | PTFE | – | PTFE | PTFE | |
| Controller | Continuous operation | Yes | Yes | Yes | Yes | Yes | Yes |
| Setting mode | Scale | Scale | Scale | Scale | Scale | Scale | |
| Speed display mode | – | Scale | Scale | – | Scale | Scale | |
| Timer | No | No | No | No | No | No | |
| Operation function | No | No | No | No | No | No | |
| Temp. Sensor | No | No | No | No | No | No | |
| Specification | Exterior size (W*D*H) (mm) | 200×120×90 | 200×120×90 | 200×120×90 | 265×185×190 | 265×185×190 | 265×185×190 |
| Packing size (W*D*H) (mm) | 250×180×120 | 250×180×120 | 270×180×190 | 280×210×220 | 280×210×220 | 320*250*230 | |
| Plate size (mm) | 120×120 | 120×120 | 120×120 | 170×170 | 170×170 | 170×170 | |
| Plate load (kg) | 3 | 3 | 3 | 10 | 10 | 10 | |
| Power supply (50/60Hz) Current rating |
110V or 220V | 110V or 220V | 110V or 220V | 110V or 220V | 110V or 220V | 110V or 220V | |
| NW/GW (kg) | 1.9/3 | 1.9/3 | 1.9/3 | 2.2/3.4 | 2.2/3.4 | 2.2/4 | |
