Description

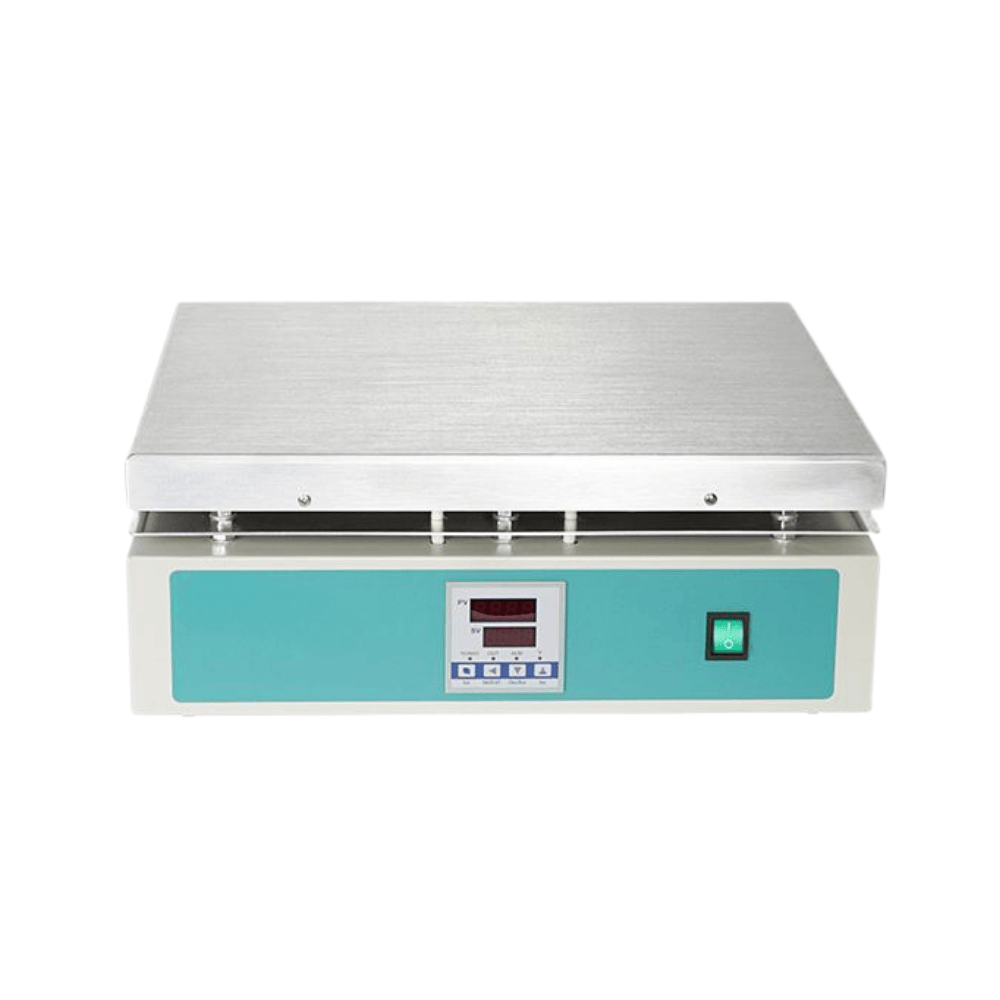

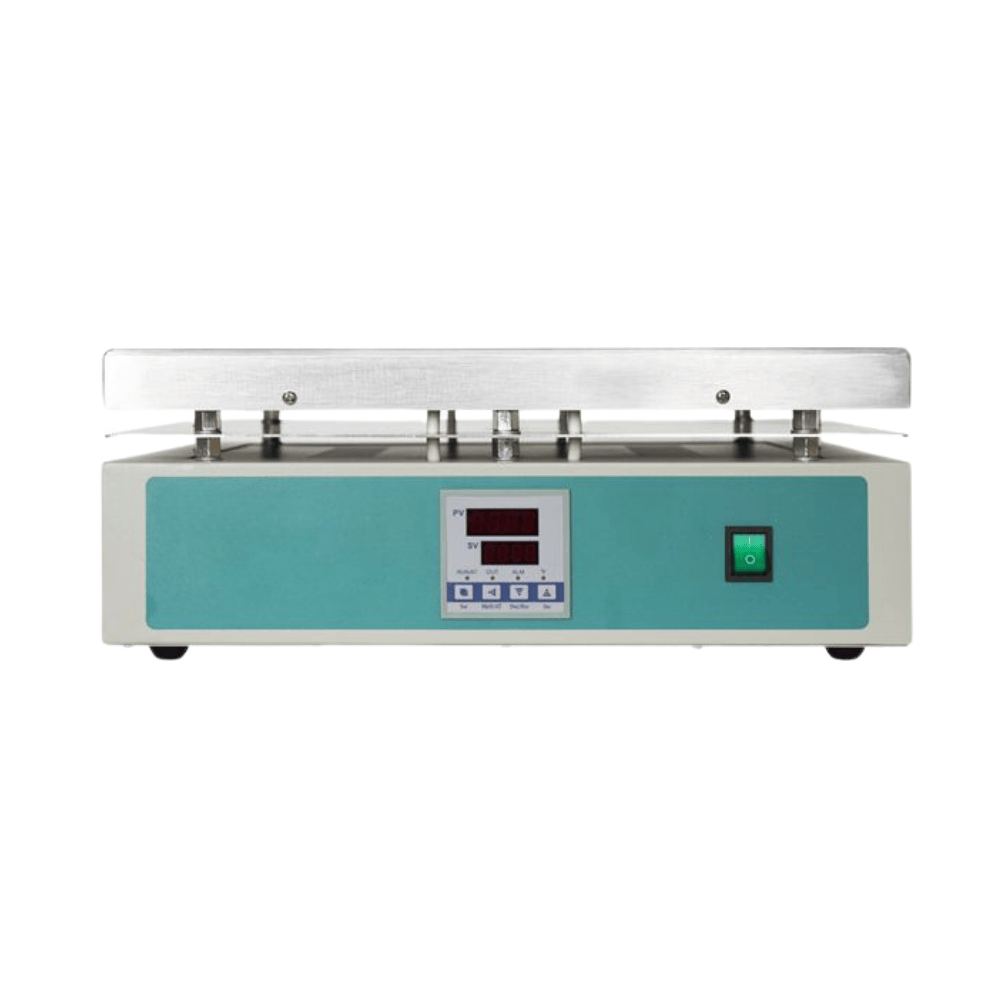

Hot Plate
1. Aluminun hot plate,uniform surface temperature
2. Heating up fast and uniform,heating power is stepless adjustable
3. Digital hot plate has the more functions as follows:
4. Digital display can read the temperature more clearly.
SPECIFICATIONS
| Model | CA-HPT-350-5A/5C | CA-HPT-350-6A/6C | CA-HPT-350-7A/7C | CA-HPT-350-8A/8C | CA-HPT-350-9A/9C | |
| Working time | Continuous | |||||
| Max Temp. （℃） |
200℃ | |||||
| Structure | Outer Shell | Iron plate welding, surface spraying |
||||
| Hot plate | Aluminum tensile | |||||
| Driving mode | No | |||||
| Heating power (W) |
1200 | 1800 | 2000 | 2600 | 3000 | |
| Controller | Continuous operation |
Yes | ||||
| Setting method | Scale/Digital | |||||
| Timer | No/Digital | |||||
| Operation function | No | |||||
| Temperature sensor |
K model | |||||
| Exterior size (W*L*H) (cm) |
34*37*22 | 42*50*22 | 45*47*22 | 42*65*22 | 47*65*22 | |
| Plate size（mm） | 300*300 | 350*450 | 400*400 | 350*600 | 400*600 | |
| Plate load | 20KG | 30KG | 30KG | 38KG | 40KG | |
| Power supply （50/60Hz） |
220V | |||||
| NW/GW (kg) | 6.2/7 | 8.4/9.6 | 8.5/9.8 | 11/13 | 12/14.2 | |
