Description
This series is a lightweight, compact fetal and maternal monitor; it can meet the needs of whole stages of labour (including antepartum and intrapartum monitoring for fetus and mother). It can also be connected to the obstetrical central station.
1. light and compact design, simple to use front panel controls

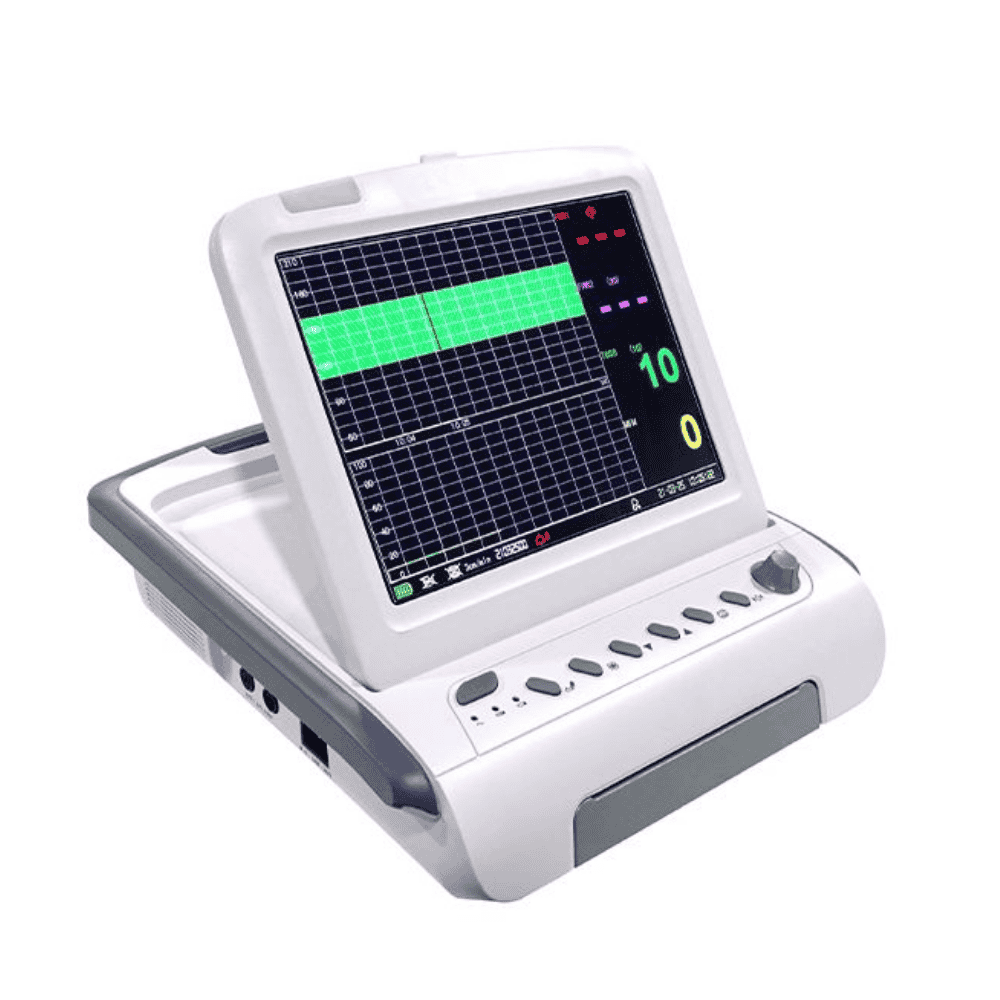

2.12.1″ TFT Colour screen, folding 90 degrees
3. The system setup can be done very easily and can be stored automatically
4. The internal line 152mm thermal printer can record FHR, TOCO. The life exceeded 20 years
5. A standard patient event marker and a clinical event marking button to separately mark Clinical events
6. Auto Fetal movement is available
7. Multi-crystals, wide beam form, high sensitivity ultrasound transducer, low ultrasound power, Safer to the fetus
8. AC or LI-battery operated
9. More than 12 hours of data storage, then it can be played and reprinted

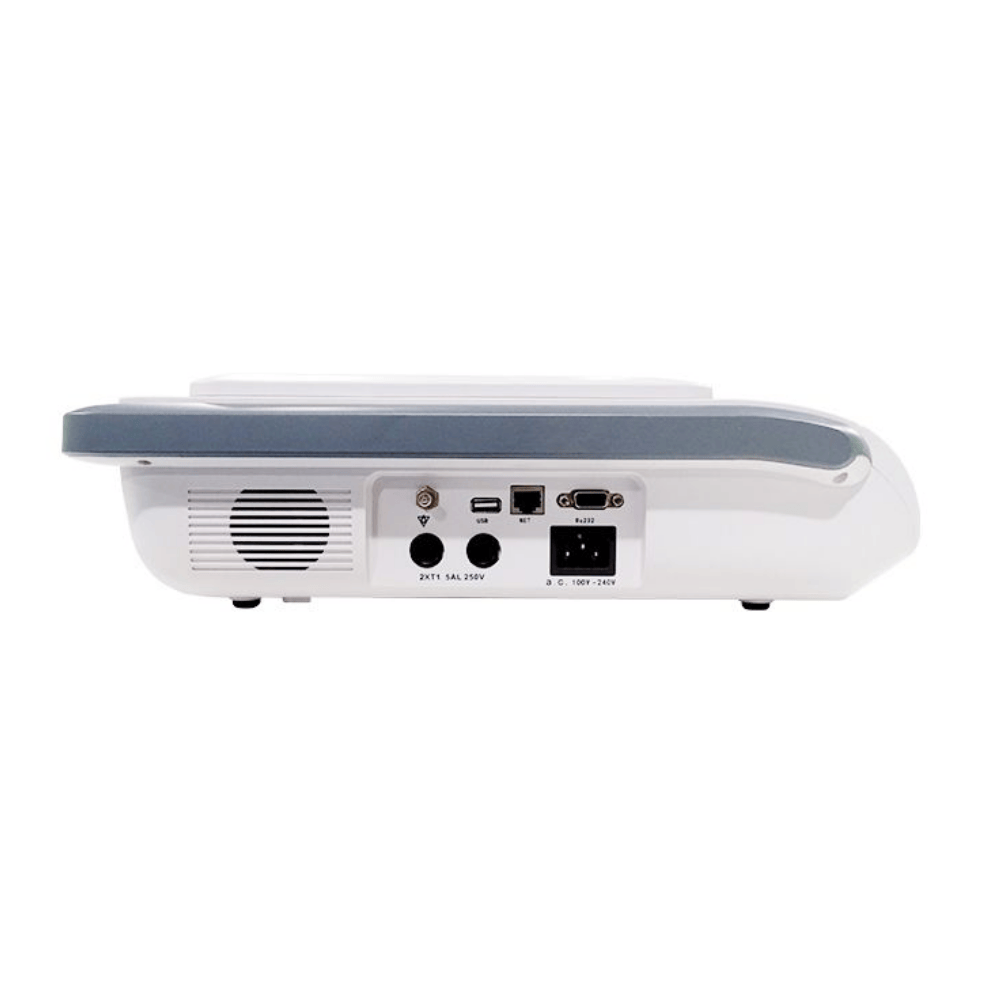

10. Built-in interface to the central nurse station

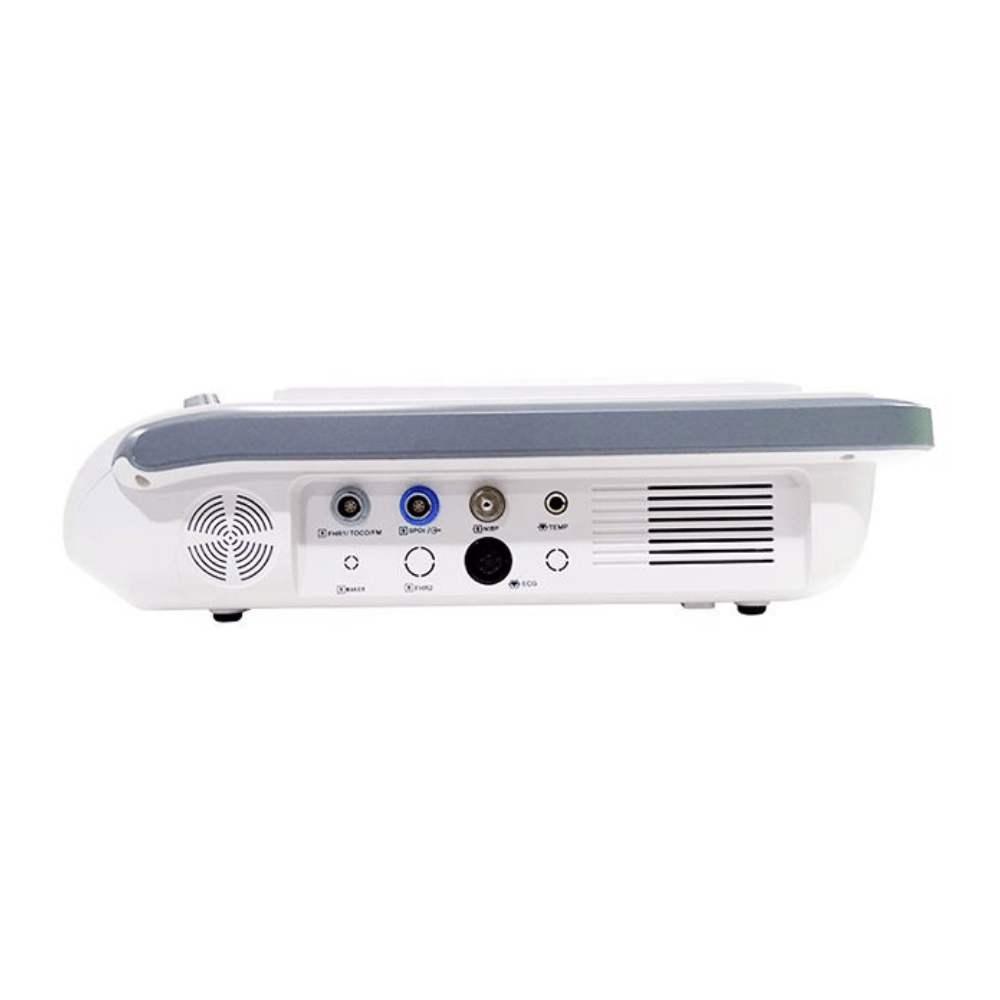

11. Standard: SpO2, MHR, NIBP, TEMP, ECG, RESP, TOCO, FHR, FM
Optional: Twin Monitoring,FAS(Fetal Acoustic Simulator)
Specifications
| Item | Technical Specifications | |
| FHR | Transducer | Multi-crystals, wide wave beam, pulsed-wave working method, high sensitivity |
| Strength | < 5mW/cm2 | |
| Working Frequency | 1.0MHz | |
| Signal Processing | Special DSP system and modern recognition | |
| Measurement Range | 50～240bpm | |
| Alarm Range | High Limit: 160, 170, 180, 190 bpm Low Limit: 90, 100, 110, 120 bpm |
|
| Maximum Audio Output Power | 1.5 Watt | |
| TOCO | Measurement Range | 0-100 units |
| SpO2 Measurement | Measurement Range | 70%～99% |
| Measure Accuracy | ±3% error | |
| HR Measurement | Measurement Range | 30bpm～240bpm |
| Measure Accuracy | ±2 bpm | |
| NIBP Measurement | Measurement Range | SYS 6.7～32.0kPa(50～240mmHg) MEAN: 3.4～26.6kPa(25～200mmHg) DIA: 2.0～24.0ka(15～180mmHg) |
| NIBP Accuracy | ±1.1kPa（±8mmHg）or ±5% of results, taking the bigger one | |
| HR Measurement Range | 40bpm～240bpm | |
| HR Measure Accuracy | ±2 bpm or ±5% of the results, taking the bigger one | |
| Measure Mode | Manual to start/stop NIBP measurement | |

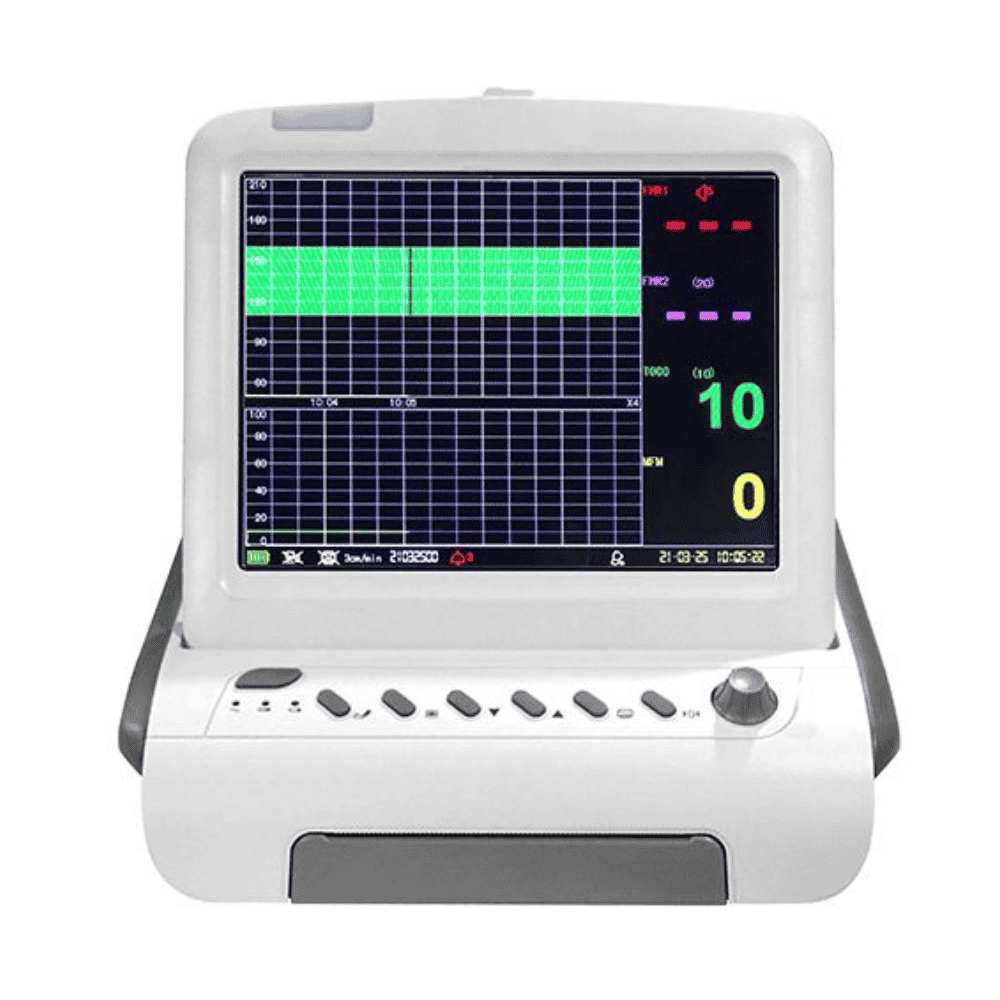

| Display | LCD shows | The FHR trace, TOCO trace, FM, Doctor Event Mark, Time, Volume etc, monitor state, and also it can store and playback |
| Environment | Working Environment | Temperature: +5℃ ～ +40℃ |
| Atmospheric Pressure | 86kPa ～ 106kPa | |
| Transport and Storage Temperature | Humidity: < 93％ Atmospheric Pressure: 86kPa ～ 106kPa |
|
| Transducer Acoustic Output | The peak negative acoustic pressure | Does not exceed 1MPa |
| The output beam intensity | Does not exceed 20mW/cm2 | |
| The sound intensity | Will not exceed 5mW/cm2 | |
| Spatial-peak temporal average intensity | Does not exceed 100 mW/cm2 | |
| Other | GEL | Viscous aqueous non-sensitizing, hypoallergenic and non-irritating to skin. Bacteriostat (not sterile) |
| Exterior | Dimension | 350L×320W×85H（mm） |
| Net Weight | 3.5 kg | |
| Package Dimension (W*D*H)(mm) | 520*440*290 | |
| G.W.(kg) | 10.5 | |
