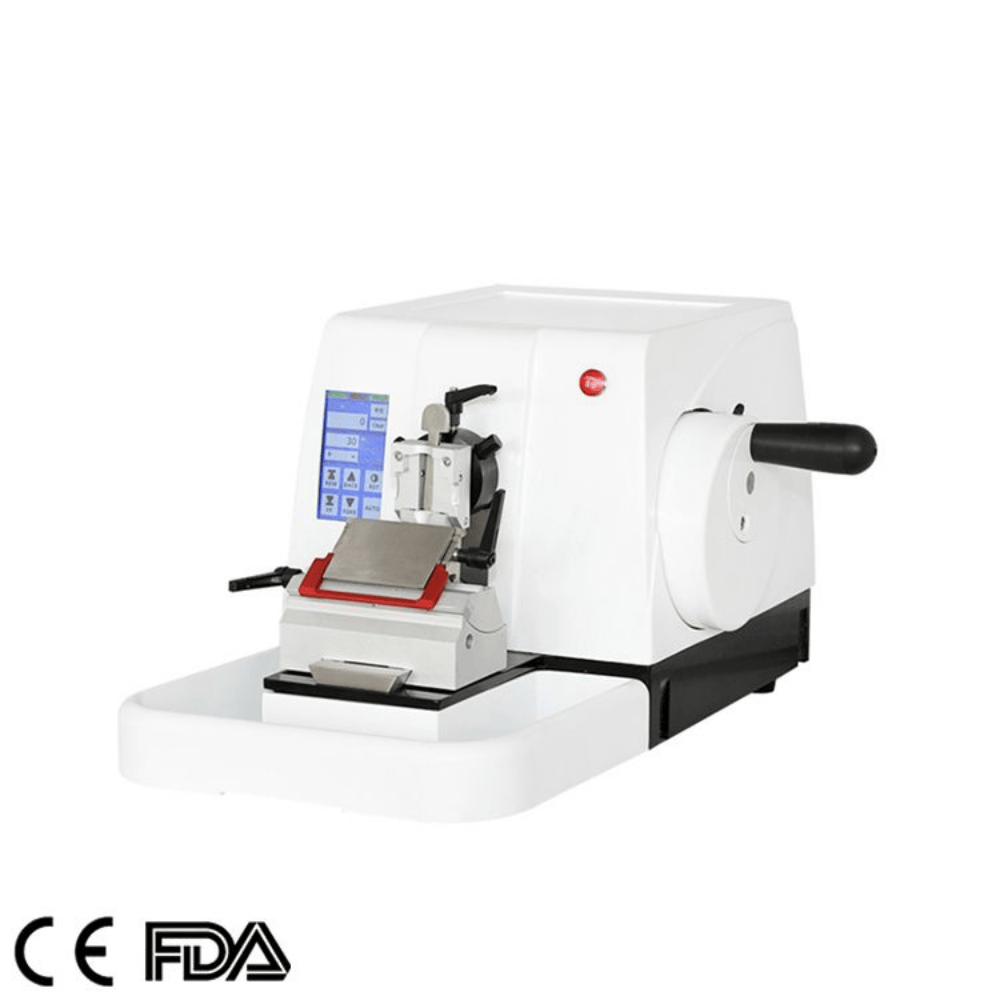

Description
- Streamlined molded housing results in attractive appearance and is easy to clean
- Full-automatic sectioning with adjustable speed and three sectioning modes: continuous, step and single, LED display
- Section counting function counts total section pieces and total thickness
- Unit contains a precise micro motion specimen feeding system which uses a micro computer, optical signal and stepper motor to control specimen feeding resulting in more precise specimen feeding
- Internationally accepted slide mechanism and groove ensures the precision of specimen movement while making the unit free from lubrication and maintenance requirements; Unit contains a handwheel force balancing system for adjusting the balancing force during sectioning, making rotation even and smooth
- Two safety locking mechanisms on the hand wheel; one locks on the top; the other locks at any position；The disposable blade can move horizontally to avoid the dangers of unintended contact with the blade. Every blade cuts specimen into three equal parts, which ensures the entire use of blade edge
Specifications
| Model | CA-RMT-FA3345 |
| Slice thickness range | 0.5μm～100μm(3~5μm is the best slicing effect) |
| Specimen retraction | 10～150μm(can be closed)，in 1μm increments |
| Section thickness setting | 0.5～5μm，in 0.5μm increment |
| 5～20μm，in 1μm increments | |
| 20～60μm,in 5μm increments | |
| 60～100μm，in 10μm increments | |
| Trimming thickness | 1～600μm |
| Trimming thickness setting | 1～10μm，in 1μm increment |
| 10～20μm, in 2μm increments | |
| 20～50μm，in 5μm increments | |
| 50～100μm, in 10μm increments | |
| 100～600μm，in 50μm increments | |
| Specimen vertical stroke | 60mm |
| Specimen horizontally stroke | 25mm |
| Max specimen size with cassette clamp (H*W) | 40mm*28mm |
| Max specimen size with C clamp (H*W) | 55mm*45mm |
| Dimensions (W*D*H) | 560×470×300mm |
| Weight | 48 Kg |
