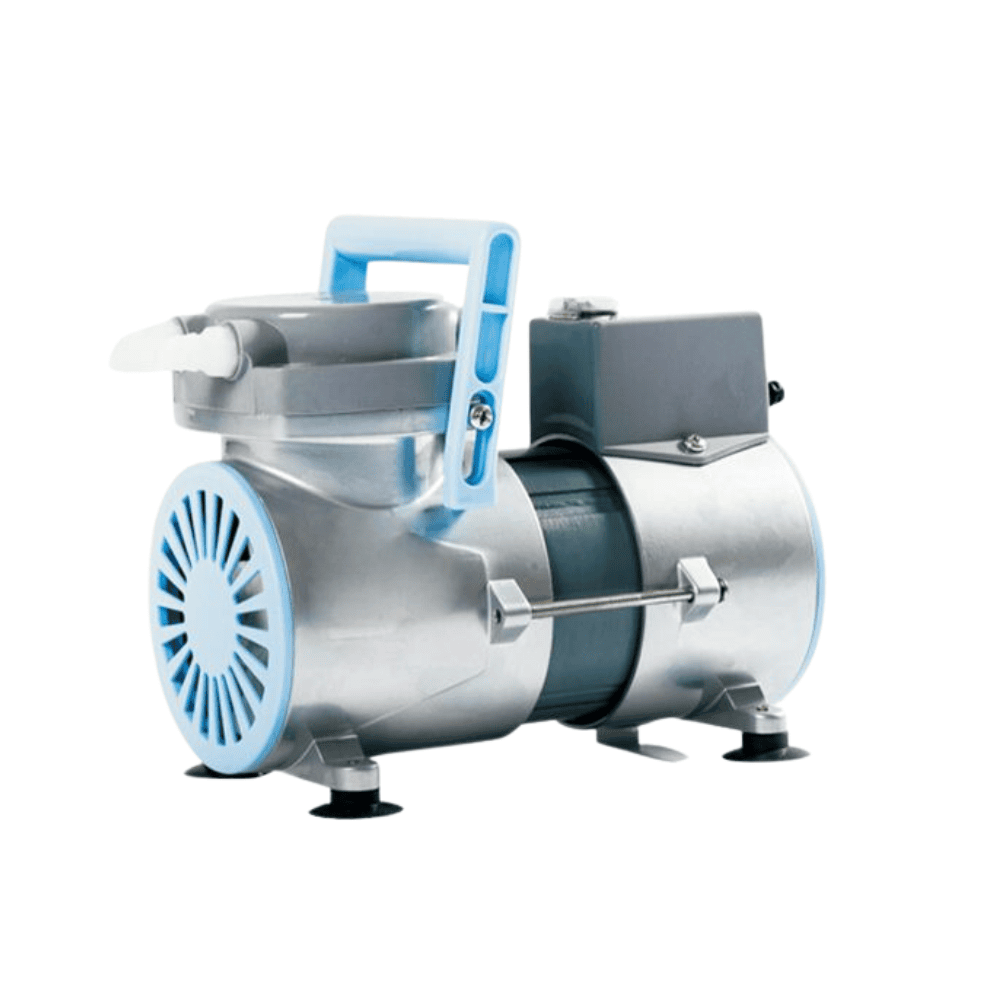

Name: Diaphragm Vacuum Pump, CA-VACP-D21
SKU: CA-VACP-D21
Availability: InStock

Description

DESCRIPTION

No need for any working medium (no oil), no pollution. The air exchange chamber is equipped with filter materials to ensure the air purity.
Adopt new technology and new materials in the production process. Easy to move and work smoothly, thus ensuring an ideal vacuum degree and a high air flow rate.
The special electricity motor is provided by the expert motor manufacturer ODM. Reasonable rotation design, equipped with an overheating power-off protector, will automatically power off when the pump body temperature reaches 130°C, and protect the motor from damage during long-term operation.
Adopt frictionless film movement, no heat generation, no friction loss. The diaphragm is made of imported rubber, which is corrosion resistant and has a long service life.
Automatic cooling and exhaust system, which ensures continuous operation for 24 hours.
The pressure adjustable design can meet the vacuum degree and gas flow rate within a certain range.
The bearing adopts imported classic bearings, with stable operation, low noise and high working efficiency.
The parts of the anti-corrosion pump in contact with gas are treated with Teflon surface treatment, which is resistant to chemical corrosion.
Small size, light weight, easy to move, saving laboratory space, convenient for repair and maintenance.

SPECIFICATIONS

CA-VACP-D21
Pumping Speed (L/Min)	15	Operating Ambient Temperature (°C)	7-40
Ultimate Vacuum	250mbar	Pump body Temperature(°C)	<55
Voltage	220Vac,50Hz	Dimension(L×W×H) (mm)	245x120x160
Power	75W	Weight(Kg)	4
Positive Pressure	≥30Psi	Pump Head Material	Nylon
Air Inlet (mm)	φ6	Noise(BD)	<60
Air Outlet (mm)	φ6	Note	Positive-negative pressure dual purpose
