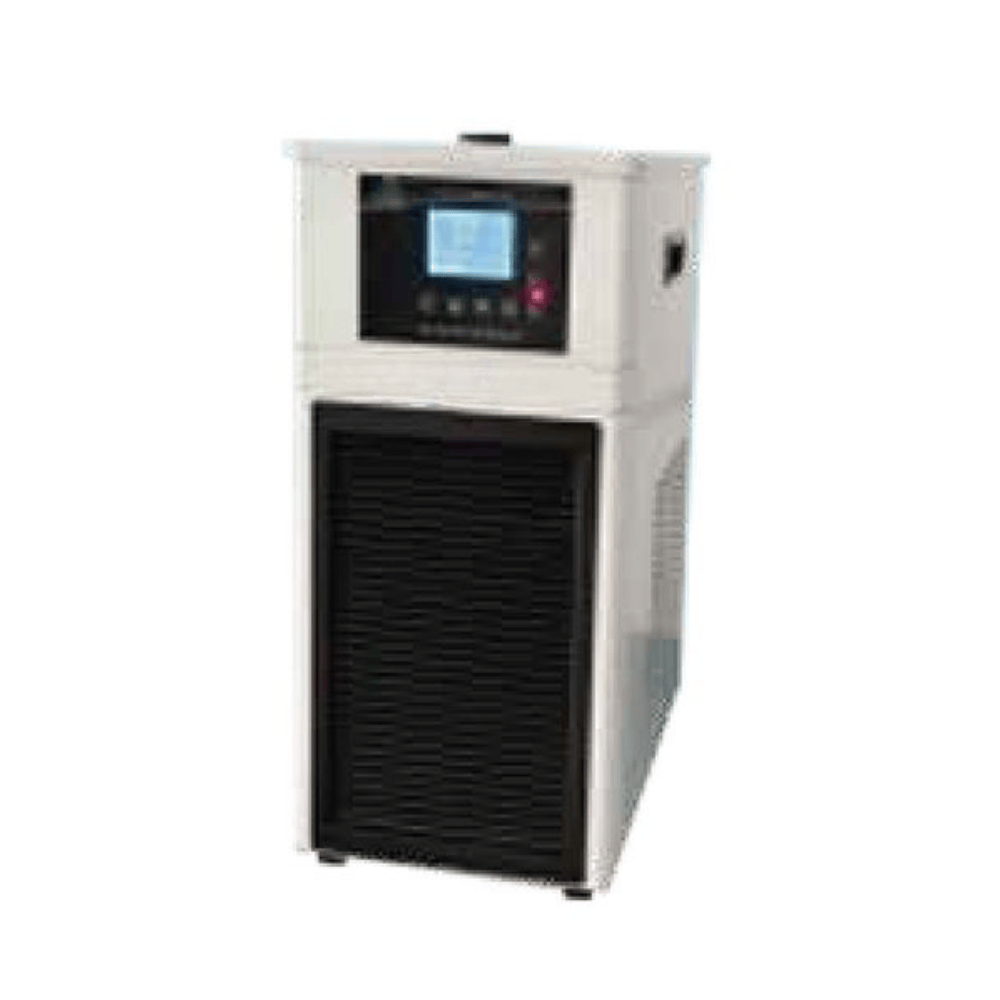

Cooling Water Circulation Device, CA-RECL20-2X

  • Combined with PID control;
  • The cooling is fast and the temperature is stable;
  • Small size, very quiet when workin
SKU: CA-RECL20-2X Category:

Description

The cooling water cycle machine is a fully enclosed refrigeration system, combined with PID control, the cooling is fast and the temperature is stable. It is used in various laboratories and production fields to meet different cooling and constant temperature requirements. It is mainly used for atomic absorption spectrophotometer, plasma emission spectrometer, scanning electron microscope, high frequency fusion machine, glove box, plasma etching machine, rotary evaporation, direct reading spectrometer, molecular distillation, Kjeldahl nitrogen analyzer and other products. The chamber provides an economical and environmentally friendly cooling cycle solution. Humanized design, small size, very quiet when working, can be placed on the desktop or used in the ventilation window.

Equipped with rotary evaporator: used in many fields such as chemistry and pharmacy in various colleges and universities across the country, local disease control centers, inspection and quarantine, food and drug quick inspection projects, and pharmaceutical factory R&D departments. Mainly used for concentration, extraction, drying, separation and crystallization experiments.

Specifications

Model CA-RECL20-2X
Tank volume 2L ethanol or antifreeze for circulating fluid
Temperature range -20℃~RT
Minimum no-load temperature -20℃
Temperature control accuracy ±1℃
Cooling capacity 700W(20℃ )、460W(0℃)、280W(-10℃)、120W(-20℃)
Compressor power/current 350W/1.3A
Circulation interface outer diameter 10mm (pagoda type)
Maximum circulation flow 11L/min
Head 8M
Pressure 0.4 bar
Reservoir material SUS304
Refrigerant R404A
Shell material cold plate electrostatic spray SPCC
Dimensions (L*W*H) 445*265*535mm
Drain valve: equipped
Timing function: equipped
Total power 420W
Total Weight 36kg
Ambient temperature 5-35℃
Electricity 220V 50Hz
Dimensions(W*H*D) 265*445*535mm
With liquid level display window
Optional functions: (1) 485 or 232 communication interface (2) parallel interface
