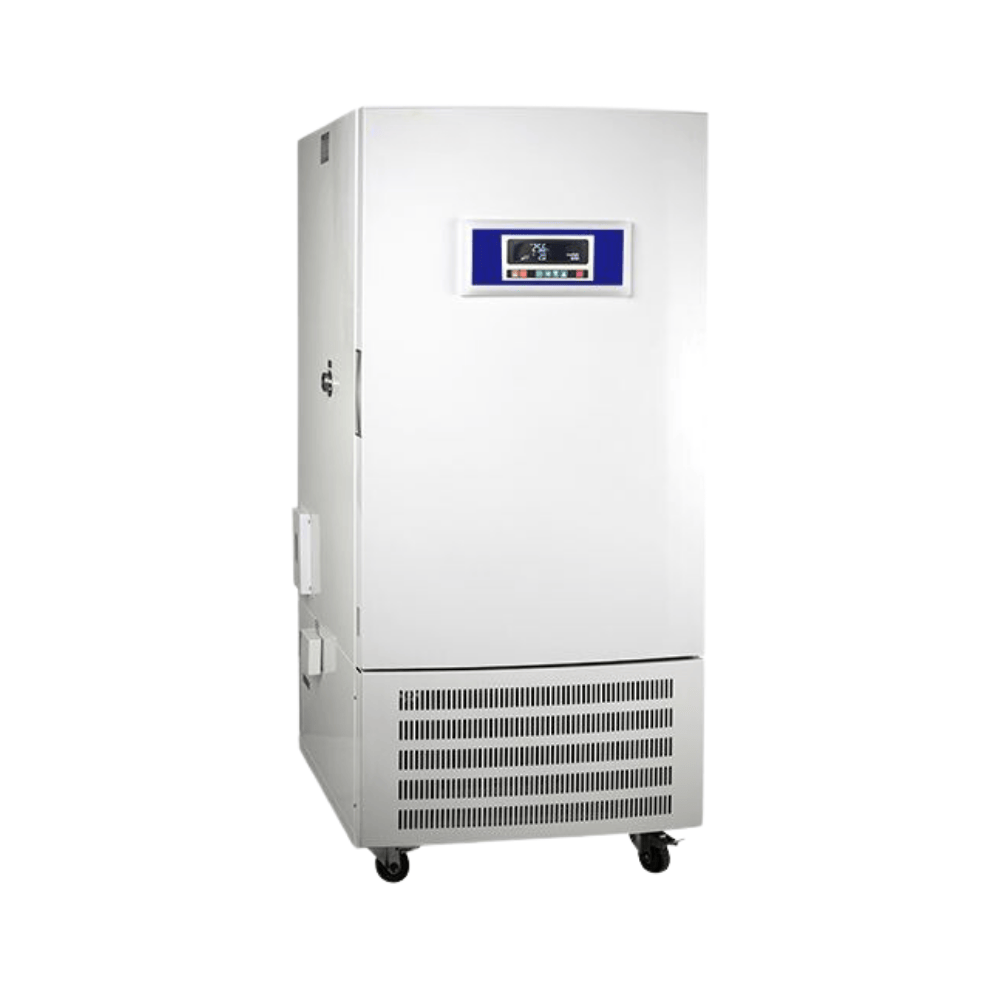

Constant Temperature Humidity Chamber (Stability Chamber) CA-ICB-HII Series

  • Volume: 175L, 275L, 375L, 475L, 800L
  • Temperature range: 0~65℃
  • Humidity control range: 40%~90%RH
  • Auxiliary temp. control
  • Leakage protection
SKU: CA-ICB-HII Series Category:

Description

Application:
The product has a precise temperature and humidity control system. It provides various environmental simulation conditions for industrial research and biotechnology testing. It’s widely used in aseptic tests and stability inspection in medicine, textiles ,food processing, industrial Product raw material performance, product packaging ,product life and other tests.

Features:

1. Auxiliary temp. control: Dual temperature control system, which is more accurate and stable. Ensure that the equipment can control the temperature and operate normally when the main temperature controller is out of control.

2. Leakage protection: When the equipment has leakage, the equipment will cut off its own power supply, which will not affect the normal operation of other equipment in the laboratory, and protect the safety of personnel and the laboratory.
3. Large LCD screen display, easy operation.
4. PID control for temperature and humidity,accurate and reliable.
5. A program with 99 cycles, which can satisfy almost any complicated experimental process.
6. Alarm function for over temperature.
7. Stainless steel chamber,movable shelf.
8. Equipped with UV sterilization system.
9. Good sealing performance,double door design,magnetic out door and tempered glass inner door for observe observation.
10. Unique air duct design, ensuring the temperature uniformity in the chamber
11. Equipped with leakage protector.
12. Equipped with spare temperature control system which ensures the product work normally even the main temp.control failed.
13. With USB or RS485 por for data download.
Note:
Performance parameters are tested under non-load conditions: ambient temperature is 20°C, relative humidity is 50% RH.

Specifications

Model CA-ICB-H150II CA-ICB-H250 II CA-ICB-H300 II CA-ICB-H400 II CA-ICB-H800 II
Volume 175L 275L 375L 475L 800L
Temperature range 0~65℃
Temperature fluctuation Low temp.:±1℃, High temp: ±0.5℃
Temperature uniformity ±1℃
Humidity control range 40%~90%RH
Working time Long continous working
Power consumption 1600W 1800W 2200W 2250W 4000W
Humidity fluctuation ±3%RH
Refrigerant R134a
Power supply 220V±10%,/50Hz±2%
Working condition 5~40 ℃
Exterior Size (W×D×H)cm 63×72×171 77×74×171 78×87×191.5 88×87×199.5 110×93×1217
Chamber size (W×D×H)cm 58×51×93.5 58×50×85 59×55×116 70×55×125 96.5×61×137
