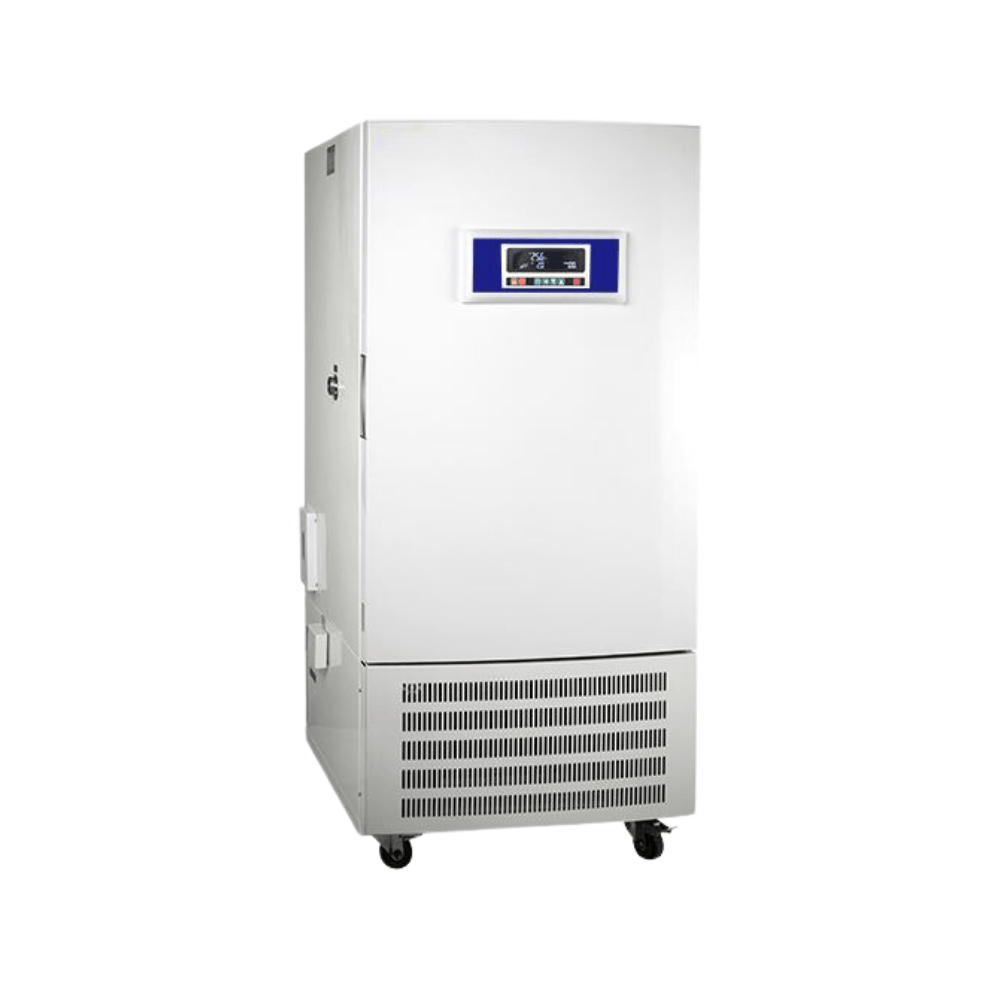

Constant Temperature Humidity Chamber (Stability Chamber), CA-ICB-H175-1075 Series

  • Interior Volume: 175L, 275L, 375L, 475L, 800L, 1075L
  • Temperature Range: 0~65 ℃
  • Humidity Range: 30~95%RH
  • Auxiliary temp. control
  • Leakage protection
SKU: CA-ICB-H175-1075 Series Category:

Description

1.Imported international brand compressor with cooling system, effectively extend the life of the compressor.

2.Imported brand humidity sensor, built-in tank heating humidification system, effectively ensuring the humidity deviation.

3.Large LCD screen to display more data at same time.Menu-type operation interface, easy operation.

4.Digital display for temperature and humidity ,multi-segment program control technology, high precision.

5.PID microprocessor ensures precise control for temperature and humidity .

6.There are 99 cycles of program, each cycle is divided into 30 segments, each segment contains 99 hours and 99 minutes of cycle steps, it can happily meet almost all the complicated experiment process.

7.Temperature -limiting alarm system ensures experiment runs safely. If the temperature exceeds the limit, the operation will be automatically stopped and alarm will prompt the operator.

8.Polished stainless steel chamber,surface painted,adjustable shelves,,easy for cleaning.

9.Equipped with power supply and UV lamp for sterilization in chamber.

10.Double door designed, tempered glass inner door for easy observation.

11.JAKEL circulation fan, reasonable air duct structure, effectively guarantee the temperature stability inside the box.

12.Leakage protection: When the equipment has leakage, the equipment will cut off its own power supply, which will not affect the normal operation of other equipment in the laboratory, and protect the safety of personnel and the laboratory.

13.Auxiliary temp. control:Dual temperature control system, which is more accurate and stable. Ensure that the equipment can control the temperature and operate normally when the main temperature controller is out of control.

14.Equipped with UV sterilization device.

Options:

1.Built-in printer

2.φ25mm/50mmtest hole

3.RS485 connector

Specifications

Model CA-ICB-H175 CA-ICB-H275 CA-ICB-H375 CA-ICB-H475 CA-ICB-H800 CA-ICB-H1075
Chamber Volume 175L 275L 375L 475L 800L 1075L
Temperature Range 0~65 ℃
Display Resolution 0.1℃
Temperature Fluctuation HIGH±0.5 ℃、LOW±1 ℃
Temperature Uniformity ±1 ℃
Humidity Range 30~95%RH
Power Rating 1100W 1400W 1950W 2000W 2300W 2600W
Humidity Stability ±3%RH
Refrigerant R134a
Power Supply AC 220V±10%,50Hz±2%
Continuous Operation Long continuous operation
Ambient Temperature 5~40℃
Exterior Size (W×D×H)(cm) 61×62×150 74×71×157 75×75×173 86×75×182 113×93×198 101×90×224
Chamber Size (W×D×H)(cm) 45×42×93 58×51×93.5 59×55×116 70×55×125 96.5×61×137 95×70×160
Net/Gross weight(kg) 82/125 95/138 103/147 115/157 185/250 215/300
