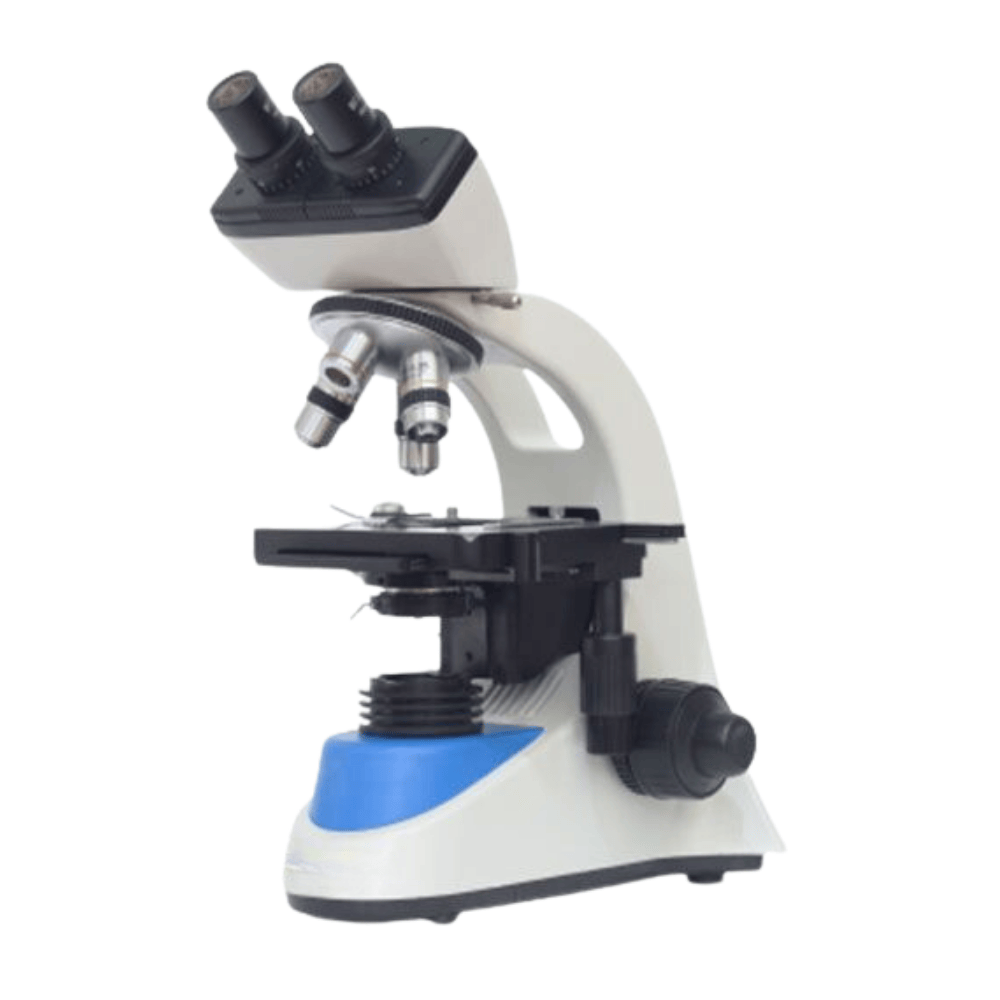

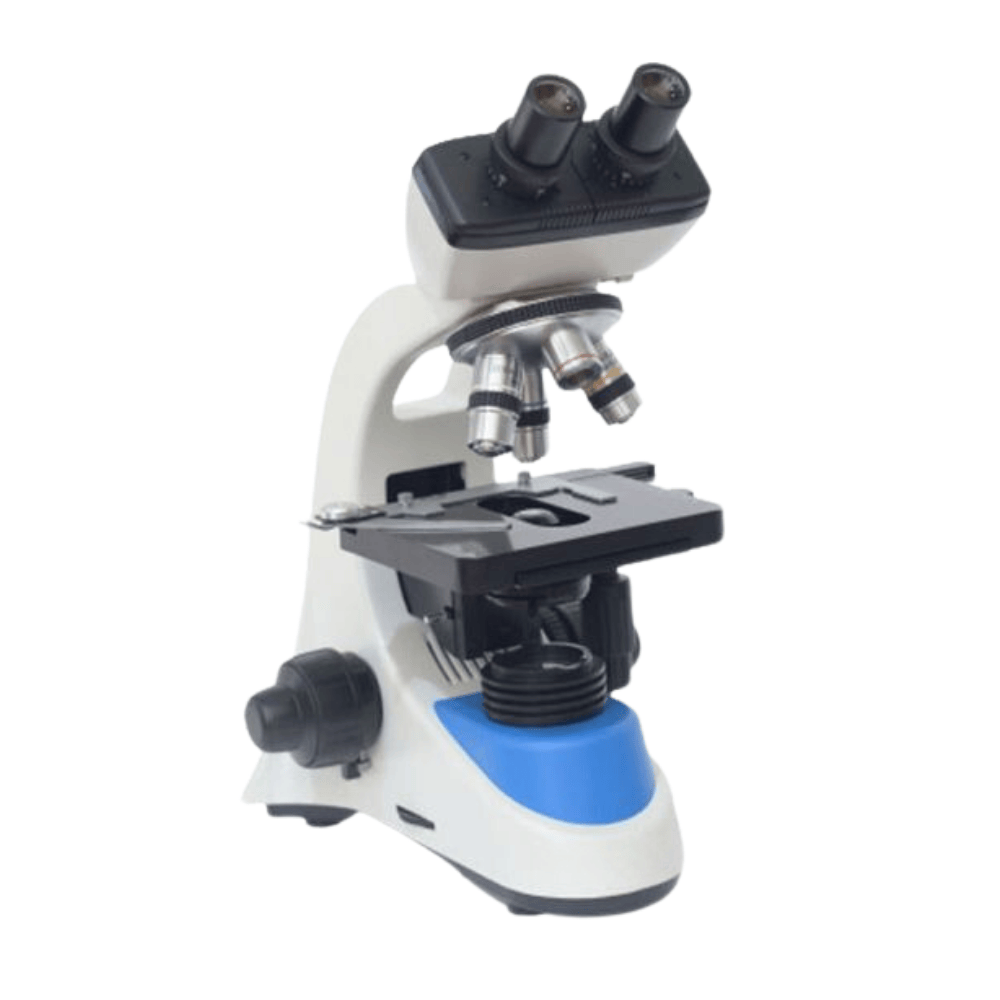

Biological Microscope, CA-MSC-B208(Sliding)
- Sliding Binocular Head lnclined at 45°
- Eyepiece: Wide Field eyepiece WF10X18mm
- Objective: Achromatic Objective 4X, 10X, *20X, 40X, 100X
Description
This instrument conforms to ergonomics, with low operation long time observation of fatigue, superior optical properties; suitable for all levels of medical institutions, do research demonstration Jishengjitong laboratory routine inspection, biology, bacteriology, clinical trials and teaching.
Specifications
| Model | MSC-B208(Sliding) |
| Optics | Finite Distance Optical System / *Infinity Optical System |
| Observation Tube | Tilting binocular, interpupillary 55-75mm |
| Viewing Head | Sliding head, inclined at 45° |
| Optical Coating | Transmittance ≥ 95% |
| Eyepieces | Wide field eyepiece WF10×18mm |
| *Wide field eyepiece WF10×20mm | |
| Objective | Achromatic objective 4X, 10X, *20X, 40X, 100X |
| *Plan achromatic objective: 4X, 10X, 20X, 40X, 100X | |
| *Plan phase objective: Ph10X, 20X, 40X, 100X | |
| *Infinite plan achromatic objective: 4X, 10X, 20X, 40X,100X | |
| Nosepiece | Quadruple nosepiece / *Quintuple nosepiece |
| Stage | Double layers mechanical stage 140×135mm / 75×50mm (*Heating module) |
| Condenser | Abbe NA1.25 with iris diaphragm & filter |
| Focusing | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 22mm |
| Illumination | 3W LED Illumination, brightness adjustable |
| *6V 20W Halogen lamp, brightness adjustable | |
| Electricity | 100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) | 370*270*480 |
| Gross Weight (Kg) | 7 |
| *Optional | Turret phase contrast kit, dark field attachment, fluorescent attachment |
| MSC-B208T: Microscope camera (Standard imaging software) / Win 10 Pad / Digital display | |
| *Optional Configuration | |
