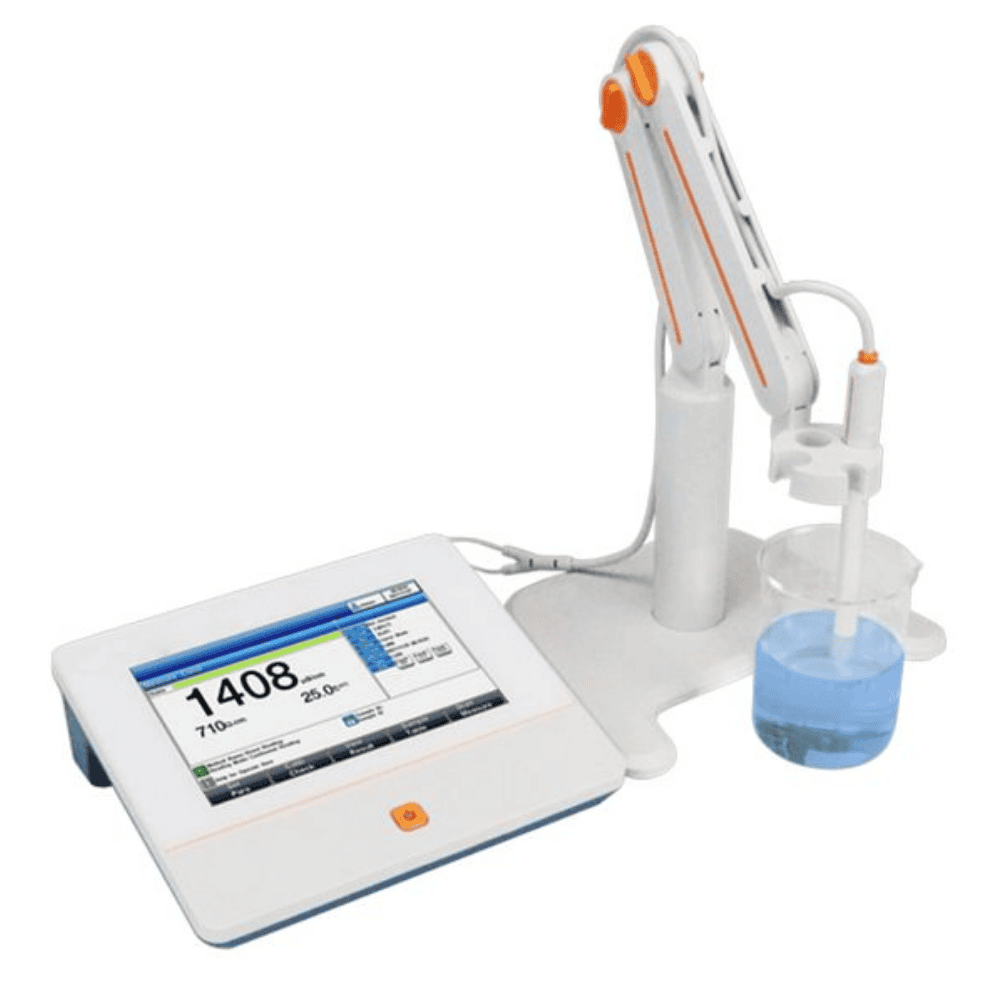

Benchtop Conductivity Meter, CA-CON-B500T

  • Intelligent operation system
  • 7.0 inch LCD screen
  • IP54 waterproof.
  • Support for USB and RS-232 communication
SKU: CA-CON-B500T Category:

Description

The conductivity meter is a water quality analysis instrument developed for high-end water quality management and automatic control of medical multi-effect distilled water systems, boiler bottom water, condensate water, and heat exchange systems operating in higher temperature environments.

Advantages
7.0 inches color high contrast LCD touch screen.
Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
The multi-reading feature allows auto-read, timed-read, and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Data Storage: 1000 sets for each parameter (GLP-compliant).
The data analysis feature helps user review, compare and recalculate results.
Support for USB and RS-232 communication.
The reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1-5 points calibration with Standard Recognition.
Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
Temperature compensation type (none, linear, pure water).

Specifications

Model CA-CON-B500T
Conductivity Range 0.000 μS/cm to 2000 mS/cm
Resolution 0.001 μS/cm minimum,

various with range selection

Accuracy ±0.5% FS
Reference Temperature 5, 10, 15, 18, 20, 25 ºC
Calibration Points Up to 5
Calibration Reminder Yes
Standard Recognition 10 μS/cm, 84 μS/cm, 500 μS/cm, 1413 μS/cm, 12.88 mS/cm

146.5 μ S/cm, 1408 μ S/cm, 12.85mS/cm, 111.3mS/cm

Resistivity Range 5.00 Ω·cm~100.00 MΩ·cm
Resolution 0.01 Ω·cm minimum
Accuracy ±0.5% FS
TDS Range 0.000~1000 ppt
Resolution 0.001 ppm minimum, changed with range
Accuracy ±0.5%FS
Salinity Type NaCl
Range 0~80.0 ppt
Resolution 0.1 ppt
Accuracy ±1 ppt
Temperature Range -10 to 135 ºC, 14 to 275 ºF
Unit ºC, ºF
Resolution 0.1
Accuracy ±0.1
Measurement Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 1000 Groups
GLP Features Yes
Log Management Yes
Inputs Conductivity with Temp. Probe 5-pin aviation connector
Outputs USB USB 2.0 flash memory device, PC, scanner
RS 232 printer, auto-sampler
Display options Backlight Yes
Auto Shutdown 1~60 min, off
IP Rating IP54
Date and Time Yes
General Electricity AC Adapter, 100-240V AC input, DC24V output
Dimensions 220×195×68 mm
Weight 950g
