Description

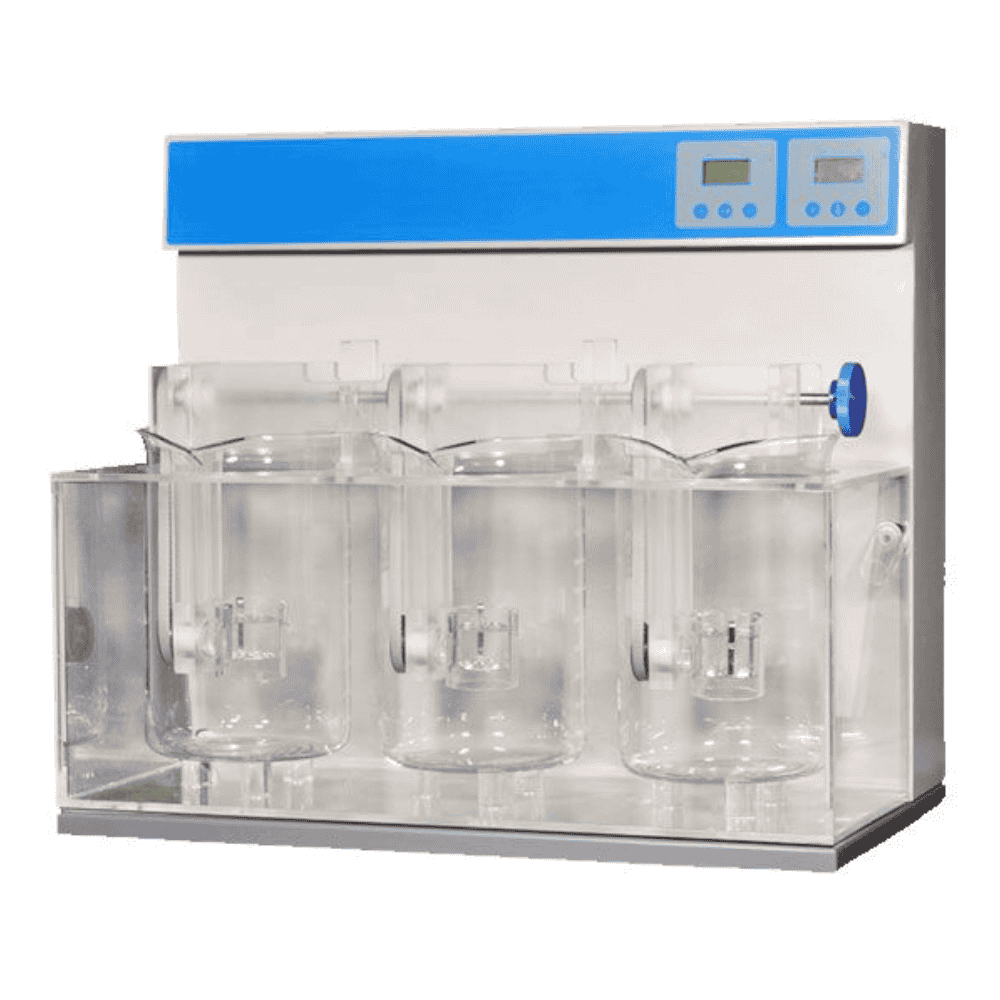

SMTP-1 Thawing Time Limit Tester is used to inspect the condition of thawing, softening or dissolution of solid preparations such as suppositories or vaginal tablets under the prescribed conditions. It’s a mechatronic product which is designed and produced in accordance with the requirements of the Chinese Pharmacopoeia (Edition 2015) on “suppository thawing time limit inspection methods”.

Main features

  • Three-beaker, three-path, three-path synchronisation, manual overturn.
  • Transparent sleeve, stainless steel net racks
  • Imported stainless steel is adopted for net racks.
  • Automatic temperature control, high temperature control precision
  • A magnetic water pump, a circulating water flow, uniform heat system are adopted, and the bath temperature is uniform.
  • Automatic temperature control and automatic time keeping.

Specifications

Model SMTP-1
Number of sleeve racks 3 sets
Size of transparent sleeve height 60mm; inner diameter 52mm
stainless steel net rack 2 sheets, diameter of 50mm, with 39 holes of 4mm.
Timing range (10~900)min
Timing precision ±0.5min
Temperature control range (20~45)ºC
Temperature control precision ±0.5ºC
Volume of the beaker 5L(3PCS)
Power supply 220V/50Hz/1000W
