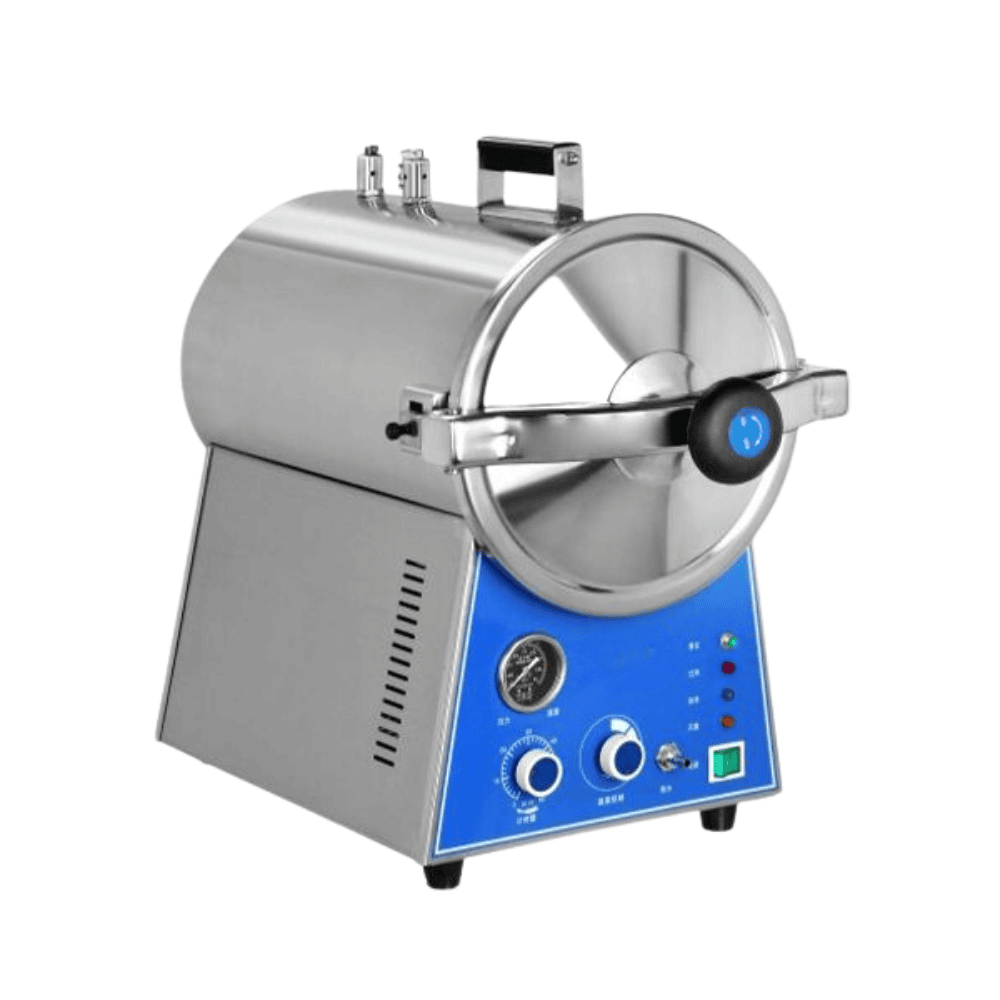

Autoclave Sterilizer, Class N Autoclave, CA-STB-NJ Series

  • Volume: 16L, 24L
  • Temperature Range: 105~134℃
  • Timing Range: 0~60min
  • Working Temperature: 138℃
SKU: CA-STB-NJ Series Category:

Description

It is safe, reliable and automatically controlled, suitable for medical, pharmaceutical, scientific research and other units. It can provide rapid sterilization for surgical, dental, ophthalmic instruments, glassware, medicines, culture media, fabric dressings, foods and other items that can withstand saturated steam.

  • Sterilization process: Automatic control, no need for supervision, convenient to use.
  • Maximum temperature: 134°C sterilization process, suitable for 4-6 minutes of rapid sterilization.
  • Safe protection of water lacking.
  • Equipped with automatic protection devices for over-temperature and over-pressure.
  • After sterilization, it will automatically cut the power and then alarm.
  • Fully stainless steel structure.

Specifications

Model CA-STB-N16J CA-STB-N24J
Volume 16L

(φ250*360mm)

24L

(φ270*410mm)

Design Pressure 0.3MPa
Design Temperature 150℃
Max.Working Pressure 0.25MPa
Max.Working Temperature 138℃
Temperature Range 105~134℃
Timing Range 0~60min
Temperature Uniformity ≤±1℃
Electricity AC220V/50Hz, 1.5kW
Sterilization Tray 340*200*30mm(3pcs.)
External Dimension 545*328*423mm 560*350*500mm
N.W./G.W. 15kg/17kg 18kg/20kg
Package Dimension 620*410*570mm 620*410*570mm
