Description

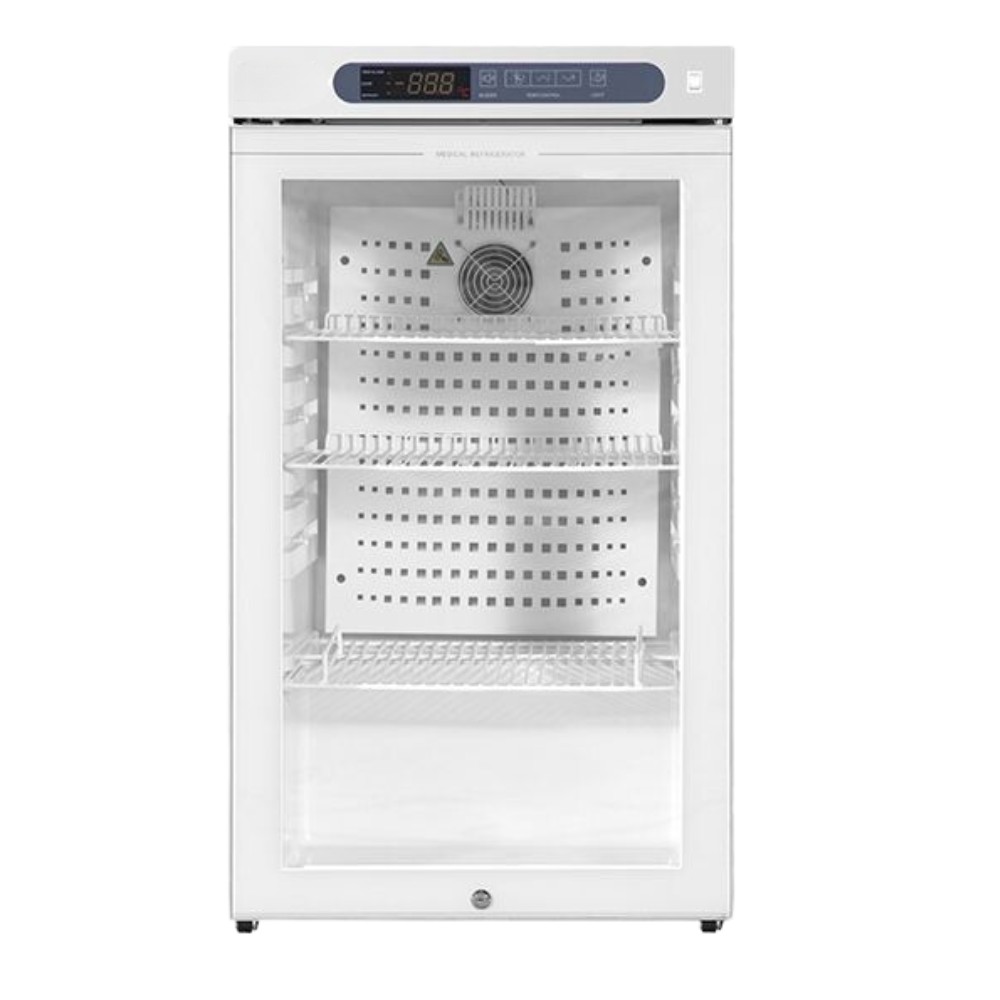

The Infitek 2-8℃ Single Door Vaccine/Medical/Pharmaceutical Refrigerator maintains optimal storage temperatures for vaccines and medical supplies, perfect for pharmacies, labs, and healthcare facilities.
Reliability and Key Features
- High efficiency specially compressor with known field proven reliability.
- Permanently lubricated cooling fan for safety and longevity.
- Forced-air cooling with optimized air distribution system designed.
- To achieve maximum temperature uniformity and stability.
- Optimized refrigeration system design for more effective cooling and speedy recovery.
- Temperature variation within ±3℃.
- Adjustable temperature range 2-8℃.
- Microprocessor control digital display, and temperature adjustment with an increment of 0.1℃.
- Large digital display screen.
Characteristic Function
- Safety door lock design to avoid door ajar.
- Big digital screen display for easy observation.
- Adjustable shelves.
- Inner light design for a clear display.
Safety
- Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
- Capable of alerting failures due to high and low temperature sensor error, door ajar, power failure and low battery.
Forced Air-cooling System
- Advanced forced cooing system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced air cooling system to assure no-frost inside.
Ergonomic Design
- Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
- Safety lock to prevent unauthorized access.
- Caster design and leveling legs LED Interior light.
Specifications
| Vaccine Refrigerator | ||
| Model | PR5-100 | |
| Capacity (L) | 100 | |
| Dimension (W*D*H) | Internal (mm) | 385*356*737 |
| External (mm) | 505*510*875 | |
| Temperature | Range (℃) at RT.10~32℃ | 2~8(Optional 2~10 ; 2~14) |
| Sensor | NTC | |
| Controller | Microprocessor | |
| Cooling system | Refrigerant | R600a (CFC Free ) |
| Defrost | Auto | |
| China Compressor qty | 1 | |
| Display | Digital display | |
| Audible&Visible Alarm | High/Low temperature | Standard |
| High ambient temperature | / | |
| Abnormal voltage | / | |
| Power failure backup system(alarm) | 10h | |
| Door ajar | Standard | |
| Material | Internal | HIPS |
| External | Electro-galvanized steel with antimicrobial powder coating | |
| Accessories | USB port | / |
| Casters | Standard | |
| Chart recorder | / | |
| Temperature data logger | Optional | |
| Remote alarm port | / | |
| Test hole (Qty) / Diameter (mm) | / | |
| Shelves / Drawers (Qty) | Shelves/3 | |
| Sound Emission (dB) | 50 | |
| Electricity | Voltage/Frequency | AC110/220V±10%, 50/60Hz |
| Consumption (W) | 80W | |
| N.W./G.W. (Kg) | 35/38 | |
| Shipping Dimension (W*D*H) (mm) | 580*580*1010 | |
