Description

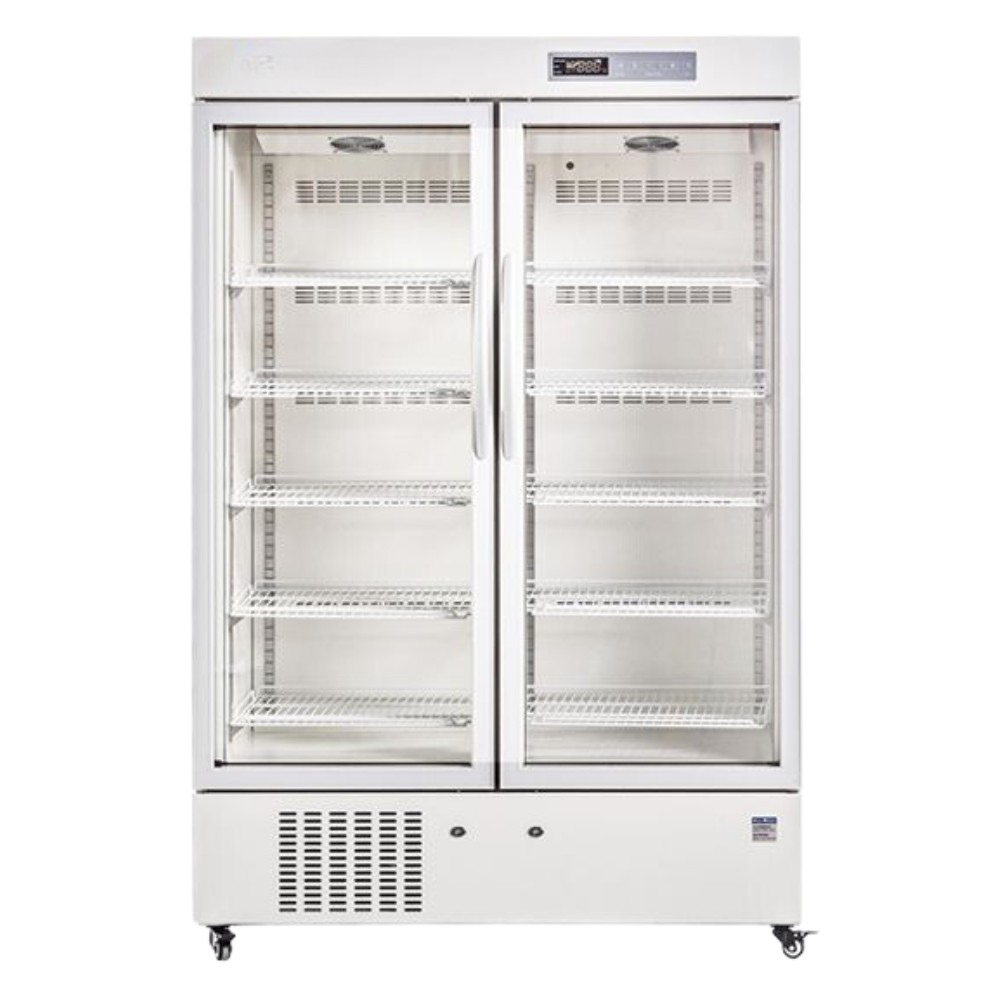

2-8℃ Double Door Pharmacy Refrigerators/Medical Refrigerators are designed with the unique needs of the pharmacy environment in mind and safely store vaccines, drugs, reagents, specimens, etc.
Reliability and Key Features
- High efficiency specially compressor with known field proven reliability.
- Permanently lubricated cooling fan for safety and longevity.
- Forced-air cooling with optimized air distribution system designed.
- To achieve maximum temperature uniformity and stability.
- Optimized refrigeration system design for more effective cooling and speedy recovery.
- Temperature variation within ±3ºC.
- Adjustable temperature range 2-8ºC.
- Microprocessor control digital display, and temperature adjustment with an increment of 0.1ºC.
- Large digital display screen.
Characteristic Function
- Safety door lock design to avoid door ajar.
- Big digital screen display for easy observation.
- Adjustable shelves.
- Inner light design for a clear display.
Safety
- Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
- Capable of alerting failures due to high and low temperature sensor error, door ajar, power failure and low battery.
Forced Air-cooling System
- Advanced forced cooing system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced air cooling system to assure no-frost inside.
Ergonomic Design
- Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
- Safety lock to prevent unauthorized access.
- Caster design and leveling legs LED Interior light.
Specifications
| Pharmacy Refrigerator | ||
| Model | PR5-660 | |
| Capacity (L) | 656 | |
| Dimension (W*D*H) | Internal (mm) | 1100*454*1325 |
| External (mm) | 1220*630*1885 | |
| Temperature | Range (℃) at RT. 10~32℃ | 2~8(Optional 2~10 ; 2~14) |
| Sensor | NTC | |
| Controller | Microprocessor | |
| Cooling system | Refrigerant | R290 (CFC Free ) |
| Defrost | Auto | |
| Compressor (Qty) | China Brand/1 | |
| Display | Digital display | |
| Audible&Visible Alarm | High/Low temperature | standard |
| Power failure backup system(alarm) | 8h | |
| Door ajar | standard | |
| Material | Internal | Electro-galvanized steel with antimicrobial powder coating |
| External | Electro-galvanized steel with antimicrobial powder coating | |
| Accessories | USB port | Optional |
| Remote alarm port | standard | |
| Test hole (Qty) / Diameter (mm) | 1/25 | |
| Shelves / Drawers (Qty) | Shelves/10 | |
| Sound Emission (dB) | 52 | |
| Electricity | Voltage/Frequency | AC110/220V±10%, 50/60Hz |
| Consumption (W) | 403 | |
| N.W./G.W. (Kg) | 166/184 | |
| Shipping Dimension (W*D*H) (mm) | 1280*680*1950 | |
