Description

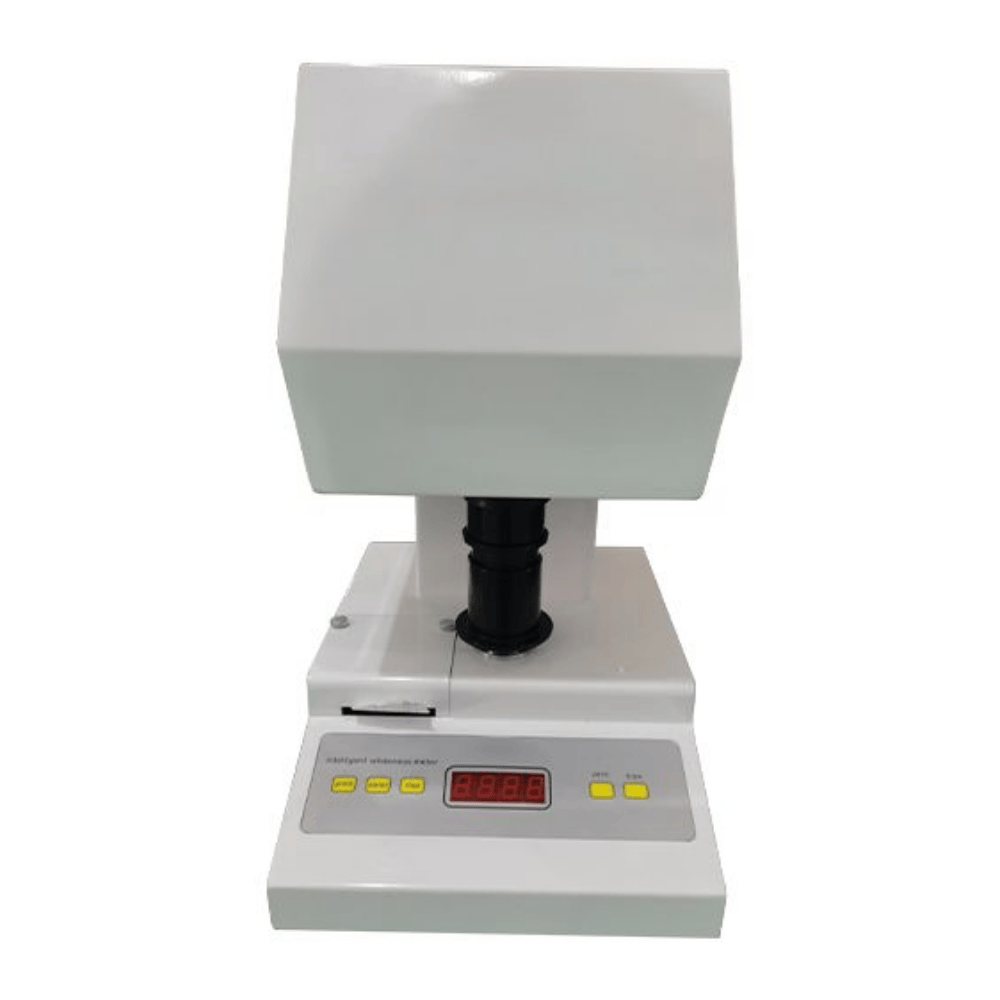

Whiteness Analyzer is used to test the whiteness of objects. It is suitable for flour, starch, rice flour, salt, touch, printing and dyeing, chemical fiber, plastic, porcelain, clay, talcum powder, white cement, paint, ceramics, enamel, paper, pulp, and other departments.
Features
- Equipped with a long-life light source, up to 100,000 hours.
- Fully sealed design to meet various production site requirements.
- Adopt a simple linear calculation method with high accuracy.
- Microcomputer control, LCD display, touch key, delicate appearance.
- Energy-saving and environment-protecting.
- Automatic calibration, stable and reliable.
- Highly integrated hardware design, embedded operating system. The fast digital wave algorithm takes two seconds to complete the measurement.
- The operationis simple and convenient: One-key zero calibration, full digital calibration of the whiteboard, and automatic saving of calibration parameters.
- Diffuse illumination and vertical sounding method(d/0), simulation D65 illumination uses d/0 illuminating viewing and geometrical conditions.
- Diffuse ball diameter is φ120mm. The measuring hole diameter is φ20mm.
- Equipped with a light absorber to eliminate the influence of the specular reflection of light
Specifications
| Model | CA-WHT-V |
| Measurement range | 0~100 |
| Measurement method | reflection |
| Illumination geometric conditions | d/0 |
| Repeatability | ≤0.1 |
| Indicating Value Drift | ≤0.1 |
| Zero Point Drift | ≤0.1 |
| Indicating Value Error | ≤0.5 |
| Display | LED |
| Working Environment | Temperature 0-40°C;
Relative humidity <80%RH |
| Electricity | AC (220±22) V,50Hz |
| Gross Weight | 9.5kg |
| Shipping Dimension | 320*400*480mm |
