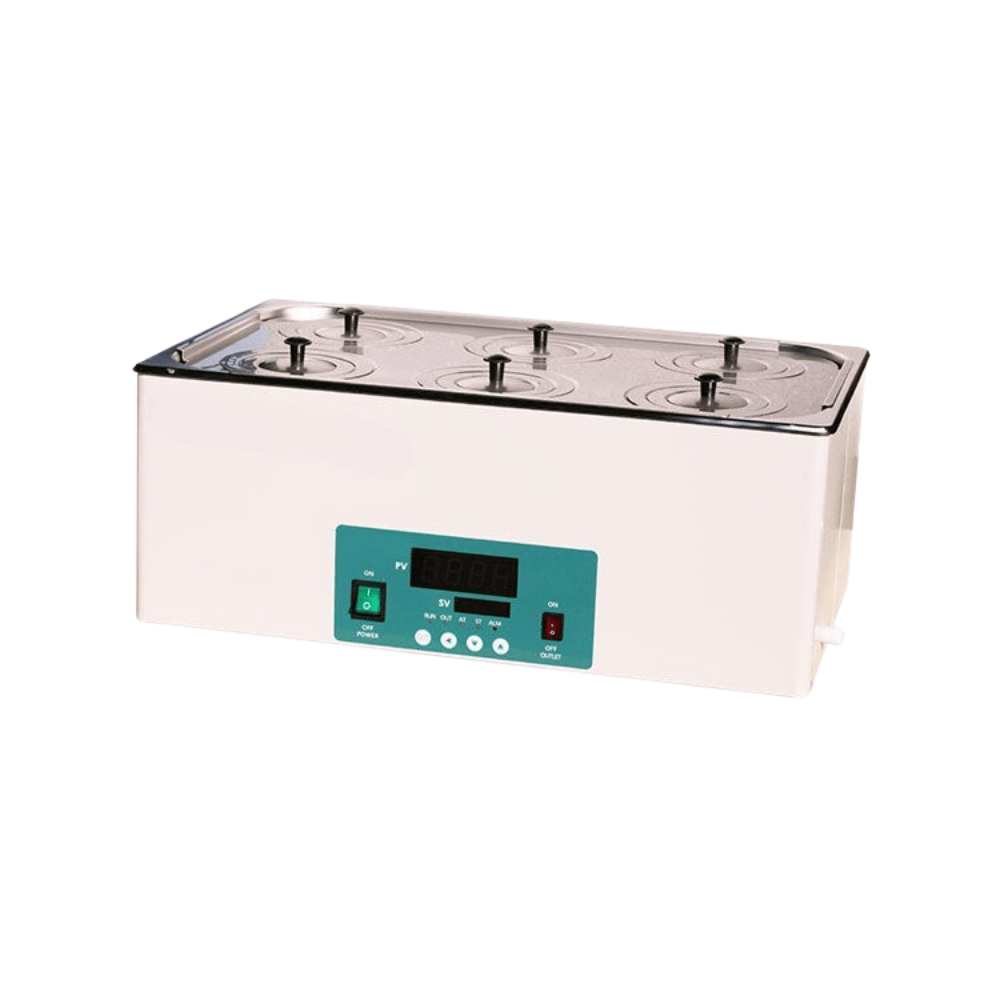

Water Bath, CA-WB-2R6H-25
- 1 chamber with 6 openings, 2 rows
- Volume: 22.5L
- Temp.Range: RT+5～100℃
- Temp.Resolution: 0.1℃
- Power Rating: 1.5 kw
Description
1. Stainless steel stretching inner container and roof cover.
2.Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.
3.Add the electric drain switch, one-button operation ,convenient to drain, Note: single hole water baths have no drain function.
4.Power off when water shortage to ensure the safe operation of the product.
Specifications
| Model | CA-WB-2R6H-25 | |
| Classification Specifications | 2 rows & 6 holes | |
| Heating Mode | Nature water convection heat transfer | |
| Function | Temp. Range | RT+5～100℃ |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. Motion | ±0.5℃ | |
| Temp. Uniformity | ±1.0℃ | |
| Structure | Inner Chamber | Stainless steel |
| Outer Shell | Cold-rolled steel plate, Surface electrostatic spraying | |
| Heater | Stainless steel heating tube | |
| Power Rating | 1.5kW | |
| Controller | Temp. Control Mode | PID |
| Temp. Setting Mode | Touch button setting | |
| Temp. Display Mode | Measuring temperature: displayed on the upper row of the three-digit LED;Setting temperature: displayed on the lower row of the three-digit LED | |
| Timer | 0～9999min（with timing wait function） | |
| Operation Function | Fixed temperature operation, | |
| timing function, auto stop. | ||
| Additional Function | Deviation Correction, menu key locked, power failure back-up, power-off memory | |
| Sensor | NTC | |
| Safety Device | Over temperature alarm | |
| Specification | Inner Chamber size(W*L*H)(mm)） | 500*300*150 |
| Exterior size(W*L*H)(mm) | 524*322*210 | |
| Packing size(W*L*H)(mm) | 600*390*280 | |
| Volume | 22.5L | |
| Load per rack | 5kg | |
| Shelf Number | 1 | |
| Power Supply（50/60Hz）Current rating | AC220V/6.8A | |
| NW/GW (kg） | 7.5/9 | |
