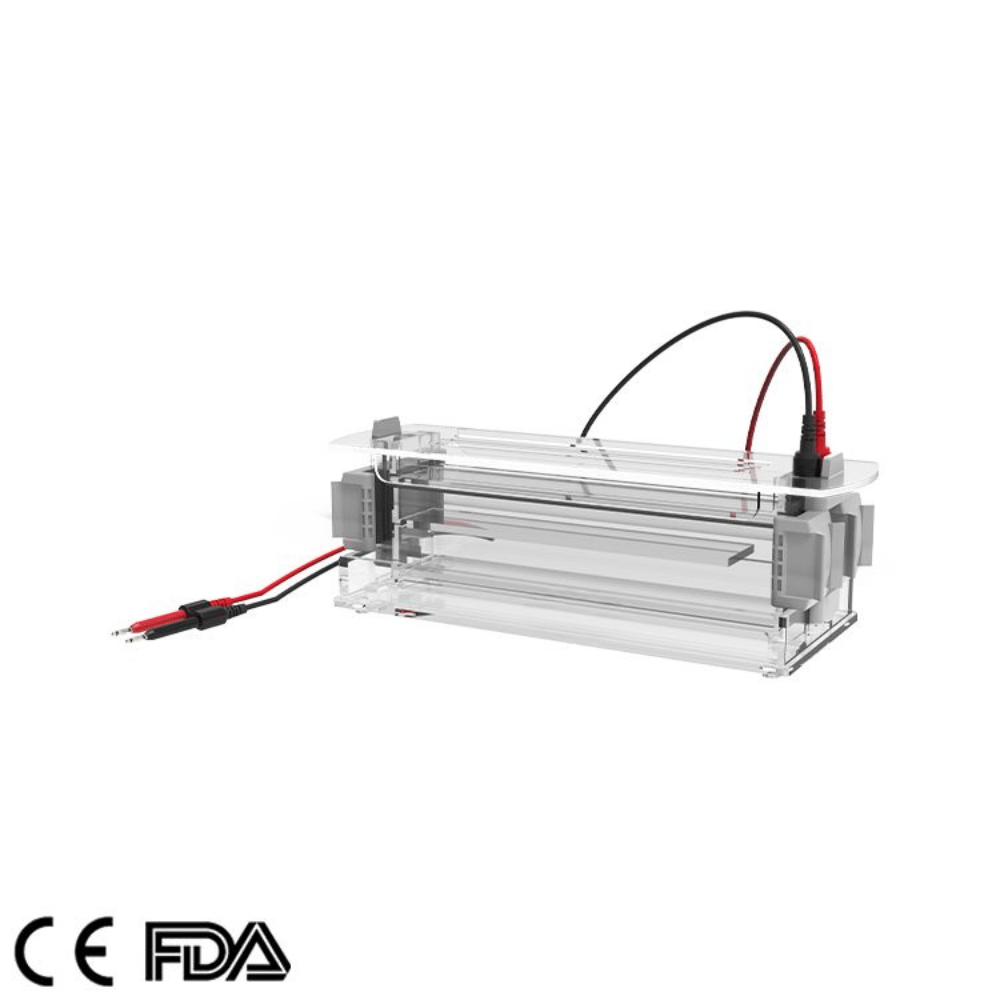

Description
Application: This product is specially designed for the molecular labeling of large quantities of samples through SSR or RAPD at the DNA level.
It is particularly suitable for genetics, breeding, seed purity testing and authenticity identification.
Features
Large amount of samples tested;
A double-plate electrophoresis tank, the maximum number of samples added is 200;
If the HT-600D high-current power supply is used, one power supply can supply power for 4 electrophoresis tanks at the same time, which can meet the needs of large-scale testing and greatly reduce the purchase cost of the instrument.
It can be connected to the cooling circulating water, and the electrophoresis temperature is constant.
Three sets of platinum electrodes provide a stable electric field.
99.99% high-purity platinum electrode, the best electrical conductivity, corrosion and aging resistance.
Specifications
| Model | CA-GEP-VH-SCZ04A |
| External Dimension | 530*340*310mm |
| Gel Area | 300*85mm |
| Sampling Comb | 102teeth,68teeth（gun sampling） |
| Adapted | GEP-PH-600C: Can run two electrophoresis tanks simultaneously |
| power supply | GEP-PH-600D: Can run four electrophoresis tanks simultaneously |
Standard configuration
| Name | Quantity |
| Upper cover of electrophoresis cell | 1pc. |
| Electrophoresis cell body | 1set |
| Concave gel glass plate | 2pcs. |
| Flat gel glass plate | 2pcs. |
| 102 teeth sampling comb | 2pcs. |
| 68 teeth sampling comb | 2pcs. |
| Circulating water pipe | 2pcs. |
| Stationery folder | 8pcs. |
| Wire | 1pc. |
| Bubble hook | 2pcs. |
