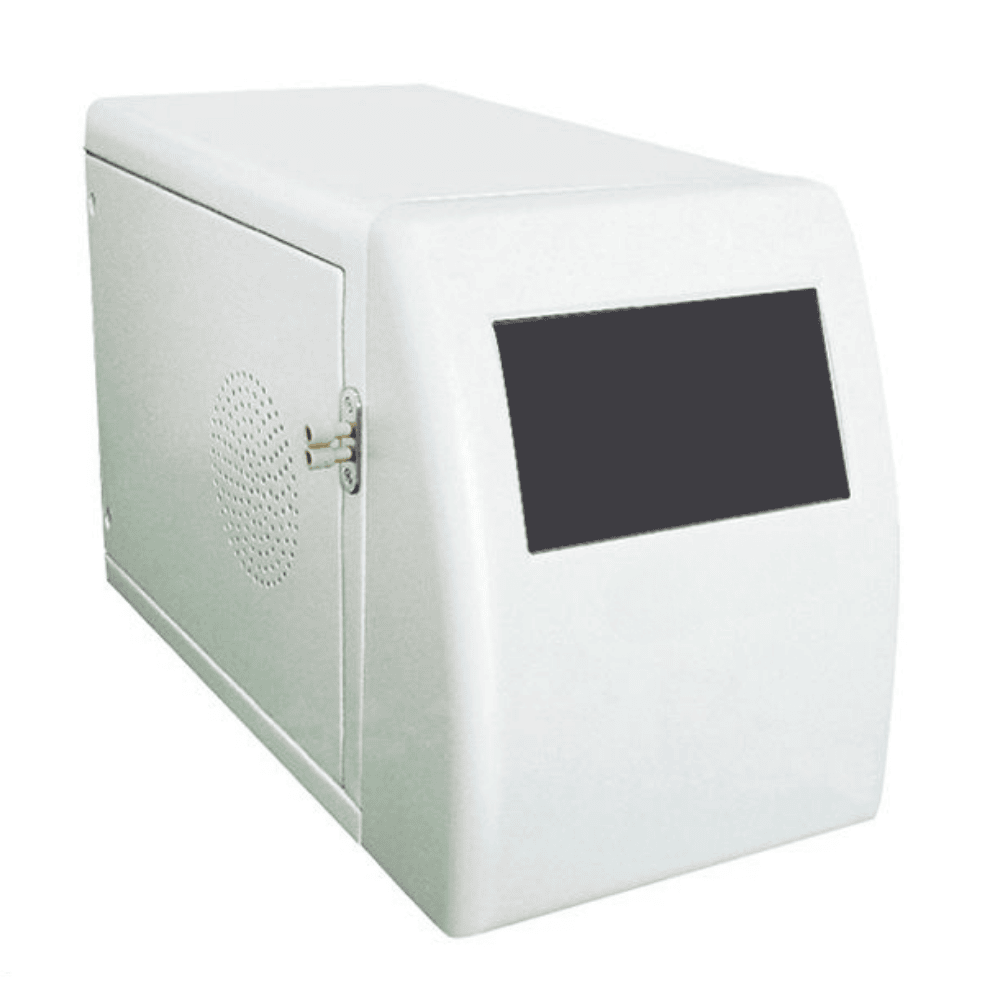

TOC / Total Organic Carbon Analyzer, CA-TOC-M1700
- Conductivity (On-line)
- Parameters: TOC
- Detection Range: 0.001-1.5mg/l(ppm)
- Detection limit: 1 ppb
- Analysis time: 3 min
- Sample flow speed: 1 ml/min
- Continuous sample feed
- For microelectronics water,purified water, water for injection
Description
Total Organic Carbon Analyzer / TOC Analyzer
•Equipped with conductivity detector to quantify TOC concentration .
•TOC-M1700 is able to work under on-line mode to realize real-time monitoring.
•Ideal choice to measure and monitor microelectronics water, purified water, water for injection, etc.
•Automatic sample introduction with one-button setting, no sample contamination, no harm on operator and environment.
•UV oxidation by UV lamp, no need to add acid, gas or catalytic, greatly reduces the experiment and maintenance cost.
•7 inches touch screen with smart Ul, easy to operate and read test data.
•Auto sampler is optional according to different experiment requirements.
•Online and offline mode can be easily switched. (TOC-M1700)
•8GB large storage capacity, no restriction of data and time.
•Quick test, each analysis takes less than 3 minutes.
•All historical records can be traced by searching test date.
•Data can be retrieved and saved to USB directly.
•Equipped with Bluetooth printer for quick and easy data printing.
•Modular design for quick installation and easy maintenance.
Specifications
| Model | CA-TOC-M1700 |
| Detection Range | 0.001-1.5mg/l |
| Detection Limit | 1ppb |
| Max Tolerance | ±5% |
| Analysis Time | 3 min |
| Response Time | Within 10 min |
| Sample Temperature | 1-95°C |
| Environment Temperature | 10-40°C with temperature change ±5 ®C/d |
| Sample Flow Speed | 1 ml/min |
| Relative Humidity | 98.5% |
| Repeatability Tolerance | ≤3% |
| Drifting | ±5% |
| Power Supply | AC 220V, 50/60HZ or AC 110V, 50/50Hz |
| Frequency | 50/60HZ |
| Dimension | 440*220*300mm |
| Rated Power | 100W |
