Description

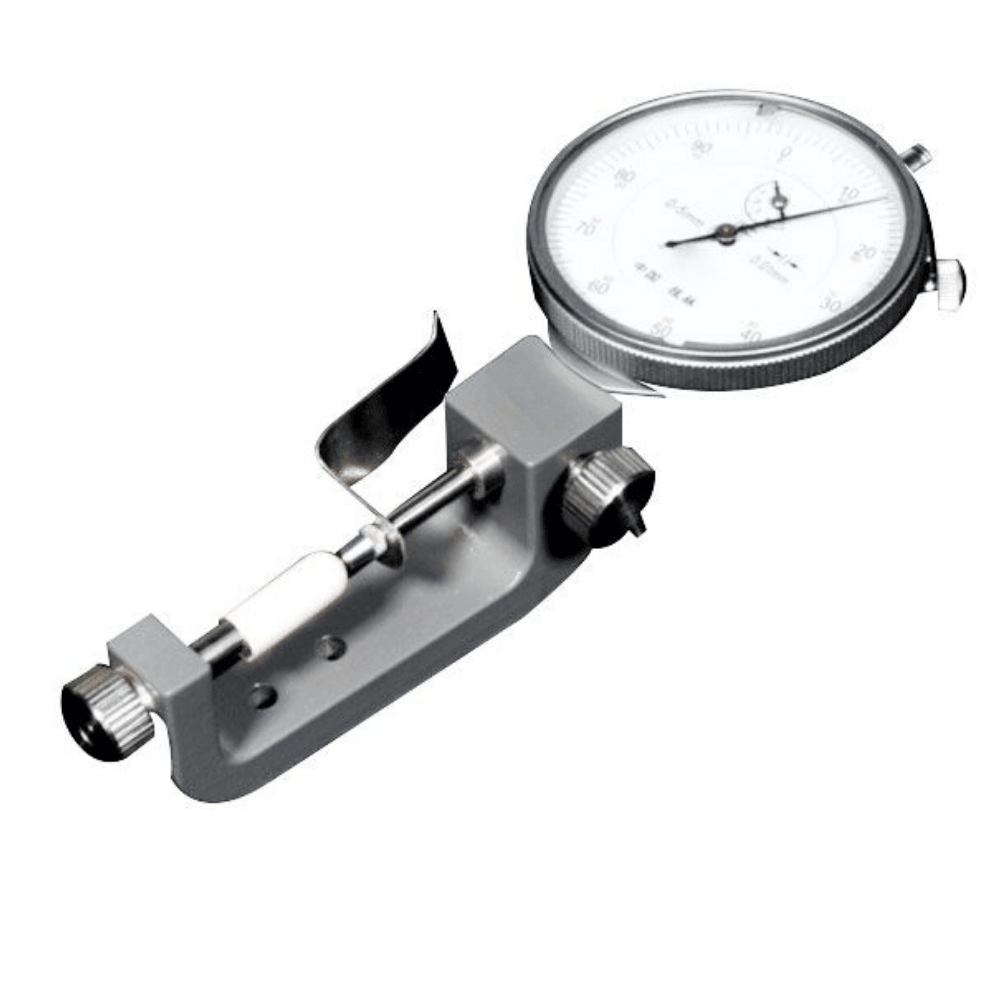

THKT series of instruments are used for detecting thickness of capsule.

Applicable standard
Corporate standard(Thickness tester) Q/12XQ0194-2010

Features:
For measuring the wall thickness and top thickness of capsules.
Domestic high-quality precision dial indicator measurement with high test accuracy.

Specifications

Test range  (0～5)mm
Test accuracy  ±0.01mm
Type of capsule  00,0,1,2,3,4 type capsule
Dimension (160×60×50)mm
