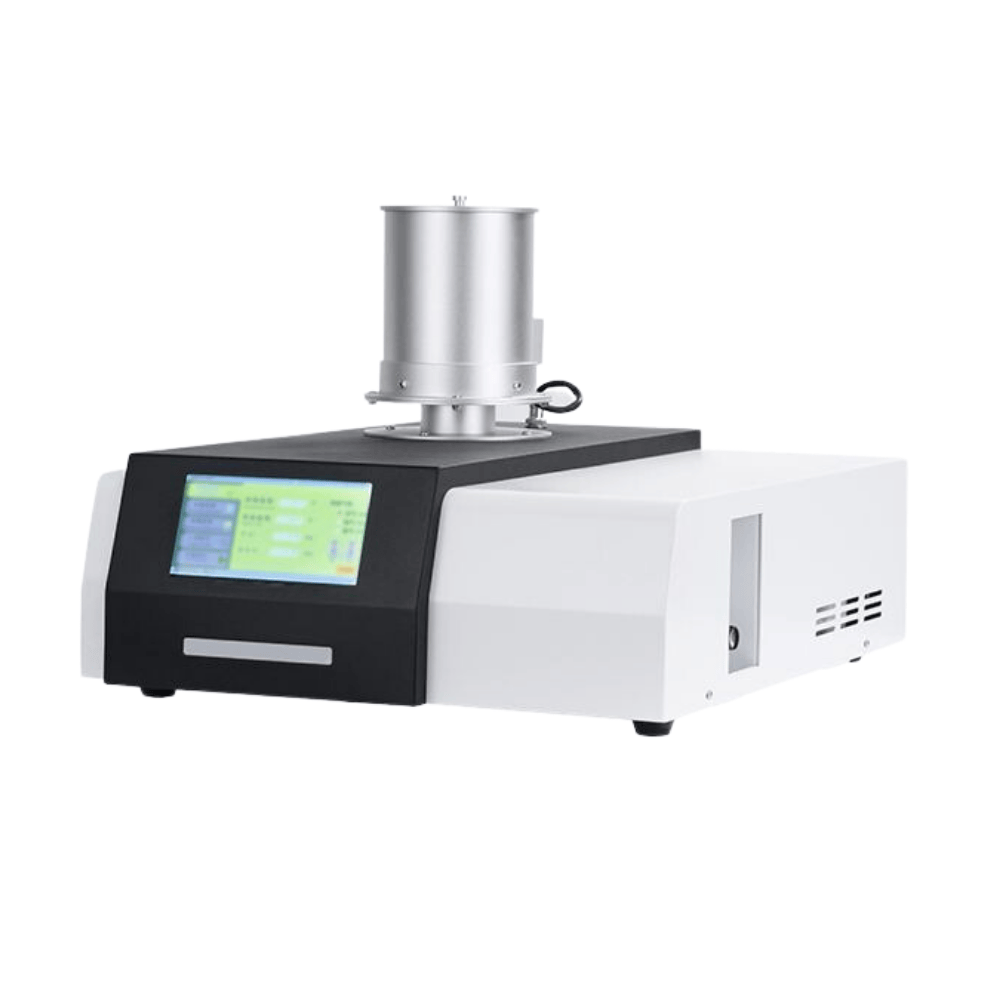

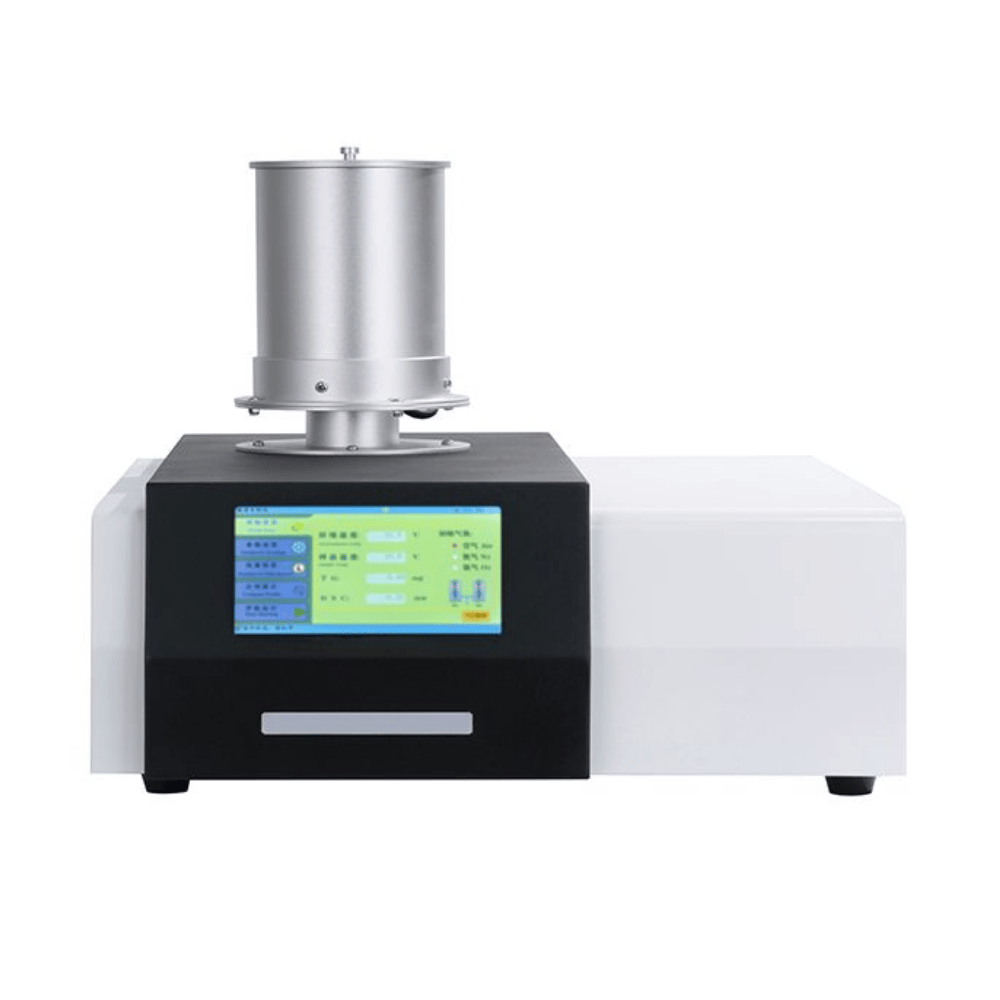

Thermogravimetric Analyzer, CA-TGA-1550

It is widely used in research and development, process optimization and quality control in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials.

Features

• Structural advantages

1. The heating of the furnace body is made of custom-made nickel-chromium wire double-row winding, which reduces interference and is more resistant to high temperature.
2. Tray sensor, made of alloy wire, has the advantages of high temperature resistance, oxidation resistance, corrosion resistance, etc.
3. The power supply and circulation cooling part are separated from the host to reduce the influence of heat and vibration on the micro-thermal balance.
4. The upper-opening structure is adopted, which is easy to operate.
5. The hostadopts water thermostatic device to isolate the thermal influence of the heating furnace body on the chassis and microthermal balance.
6. The furnace body can be replaced according to customer requirements.

• Controller, software advantages

1. Adopts imported ARM processor, faster sampling speed, processing speed.
2. The four-way sampling AD collects TG signal and temperature T signal.
3. Heating control, using PID algorithm, precise control.Can be multi-stage heating, constant temperature.
4. Two-way USB communication is adopted between the software and the instrument to fully realize remote operation, and the parameter setting of the instrument and the operation and stop of the instrument can be performed through the computer software.
5. 7-inch full-color 24bit touch screen, better man-machine interface. TG calibration can be realized on the touch screen
