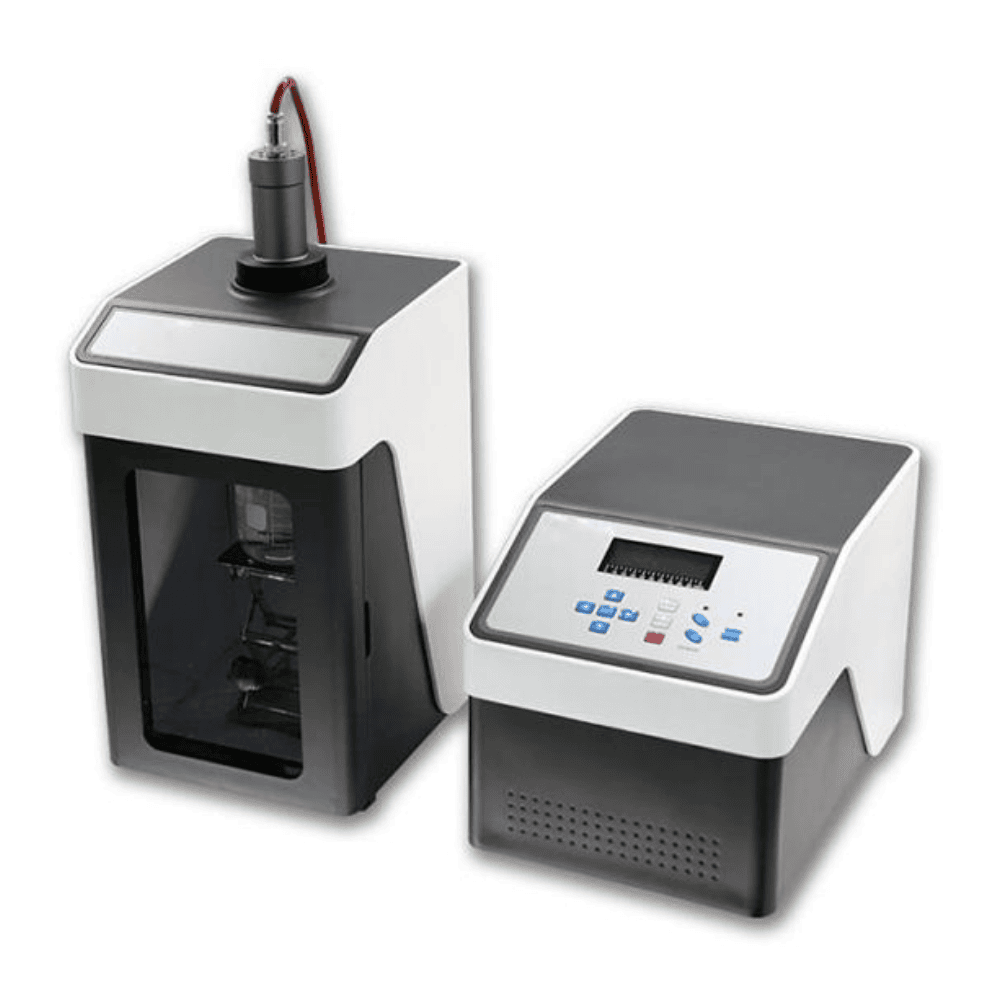

Name: Sonicator, CA-USCG-N Series
SKU: CA-USCG-N Series
Availability: InStock

Description

It is mainly applied in three aspects. First, traditional Chinese medicine extraction, cell, bacterial and viral tissue fragmentation. For example, the extraction of cell contents. Second, dispersion and homogeneity of material particles and emulsification of products. For example, the dispersion of nano materials (silicon dioxide, carbon dioxide, carbon nanotubes, graphene, etc.). Third, accelerate dissolution and chemical reaction. For example, it is used in chemical synthesis.

Advantages
Automatic resonance point and power control, without frequent manual energy adjustment.
The 99 hour process control timer controls the total working time: from 1 second to 99 hours, and pauses the current running task in real time.
The working time is displayed in cumulative status.
On / off pulse timer: ensure high-intensity processing of temperature sensitive samples, and the on and off cycles can be set from 1 second to 99 minutes.
Automatic amplitude compensation ensures that the probe amplitude does not change due to load changes during the ultrasonic process.
Sample overload and over temperature protection device.
Automatic frequency tracking and fault alarm.
Easy to operate, direct typing.

Specifications

Model	CA-USCG-150N	CA-USCG-250N	CA-USCG-300N	CA-USCG-450N	CA-USCG-600N	CA-USCG-900N	CA-USCG-1200N	CA-USCG-1800N
Electricity	220V/50Hz 80W	220V/50Hz 150W	220V/50Hz 300W	220V/50Hz 450W	220V/50Hz 600W	220V/50Hz 900W	220V/50Hz 1200W	220V/50Hz 1800W
Frequency	20KHz	20KHz	20KHz	20KHz	20KHz	20KHz	20KHz	20KHz
Power regulation	0%–100%, 5% increment	0%–100%, 5% increment	0%–100%, 5% increment	0%–100%, 5% increment	0%–100%, 5% increment	0%–100%, 5% increment	0%–100%, 5% increment	0%–100%, 5% increment
Ultrasonic mode	Pulse mode / continuous mode	Pulse mode / continuous mode	Pulse mode / continuous mode	Pulse mode / continuous mode	Pulse mode / continuous mode	Pulse mode / continuous mode	Pulse mode / continuous mode	Pulse mode / continuous mode
Timing function	LCD, 1s~99h adjustable	LCD, 1s~99h adjustable	LCD, 1s~99h adjustable	LCD, 1s~99h adjustable	LCD, 1s~99h adjustable	LCD, 1s~99h adjustable	LCD, 1s~99h adjustable	LCD, 1s~99h adjustable
Piezoelectric frequency conversion energy converter	CV33, PZT lead zirconate titanate piezoelectric ceramics	CV33, PZT lead zirconate titanate piezoelectric ceramics	CV33, PZT lead zirconate titanate piezoelectric ceramics	CV33, PZT lead zirconate titanate piezoelectric ceramics	CV33, PZT lead zirconate titanate piezoelectric ceramics	CV33, PZT lead zirconate titanate piezoelectric ceramics	CV33, PZT lead zirconate titanate piezoelectric ceramics	CV33, PZT lead zirconate titanate piezoelectric ceramics
Diameter	44mm	44mm	44mm	63mm	63mm	63mm	73mm	73mm
Length	152mm	152mm	152mm	154mm	154mm	154mm	160mm	160mm
Luffing lever material	Titanium alloy material, TI-6AL-4V	Titanium alloy material, TI-6AL-4V	Titanium alloy material, TI-6AL-4V	Titanium alloy material, TI-6AL-4V	Titanium alloy material, TI-6AL-4V	Titanium alloy material, TI-6AL-4V	Titanium alloy material, TI-6AL-4V	Titanium alloy material, TI-6AL-4V
Luffing lever length	128mm	125mm	128mm	134mm	134mm	134mm	135mm	130mm
Processing capacity	0.5-50ml (need to select the corresponding horn)	2-100ml (need to select the corresponding horn)	5-200ml (need to select the corresponding horn)	10-300ml (need to select the corresponding horn)	20-1500ml (need to select the corresponding horn)	20-1000ml (need to select the corresponding horn)	50-2000ml (need to select the corresponding horn)	100-3000ml (need to select the corresponding horn)
Standard probe	Φ3mm	Φ6mm	Φ8mm	Φ13mm	Φ16mm	Φ13mm	Φ20mm	Φ25mm
Host size	245365245mm	245365245mm	245365245mm	245365245mm	245365245mm	245365245mm	245365245mm	245365245mm
Soundproof box size	240250390mm	240250390mm	240250390mm	240250390mm	240250390mm	240250390mm	240250390mm	240250390mm
Host weight	8.5Kg	8.5Kg	8.5Kg	10.5Kg	10.5Kg	10.5Kg	13.5Kg	13.5Kg
Soundproof box weight	4.5Kg	4.5Kg	4.5Kg	4.5Kg	4.5Kg	4.5Kg	4.5Kg	4.5Kg
Lifting table	Stainless steel 100*100mm	Stainless steel 100*100mm	Stainless steel 100*100mm	Stainless steel 100*100mm	Stainless steel 100*100mm	Stainless steel 100*100mm	Stainless steel 100*100mm	Stainless steel 100*100mm

Horn selection table

Model	Nominal frequency	Diameter	Capacity	Optional horn size
USCG–150N	20KHz	Φ3mm	200uL~50mL	Φ2（0.2-10ml） Φ6（5-150ml）
USCG-250N	20KHz	Φ6mm	500uL-100mL	Φ2（0.2-10ml） Φ3（0.5-80ml） Φ8（5-200ml）
USCG-300N	20KHz	Φ8mm	5mL-200mL	Φ2（0.2-10ml） Φ3（0.5-80ml） Φ6（5-150ml） Φ10（10-400ml）
USCG-450N	20KHz	Φ13mm	10mL~300mL	Φ3（0.5-80ml） Φ6（5-150ml） Φ8（5-200ml） Φ10（10-400ml） Φ16（20-1500ml）
USCG-600N	20KHz	Φ16mm	20mL~1500mL	Φ3（0.5-80ml） Φ6（5-150ml） Φ8（5-200ml） Φ10（10-400ml） Φ13（10-1200ml） Φ18（20-1800ml）
USCG-900N	20KHz	Φ13mm	20mL~1000mL	Φ3（0.5-80ml） Φ6（5-150ml） Φ8（5-200ml） Φ10（10-400ml） Φ16（20-1500ml） Φ18（20-1800ml）
USCG-1200N	20KHz	Φ20mm	50mL~2000mL	Φ3（0.5-80ml） Φ6（5-150ml） Φ8（5-200ml） Φ10（10-400ml） Φ13（10-1200ml） Φ16（20-1500ml） Φ18（20-1800ml） Φ25（50-3000ml）
USCG-1800N	20KHz	Φ25mm	100mL-3000mL	Φ3（0.5-80ml） Φ6（5-150ml） Φ8（5-200ml） Φ10（10-400ml） Φ13（10-1200ml） Φ16（20-1500ml） Φ18（20-1800ml） Φ20（50-2000ml） Φ30（50-3500ml）
