Description
Application

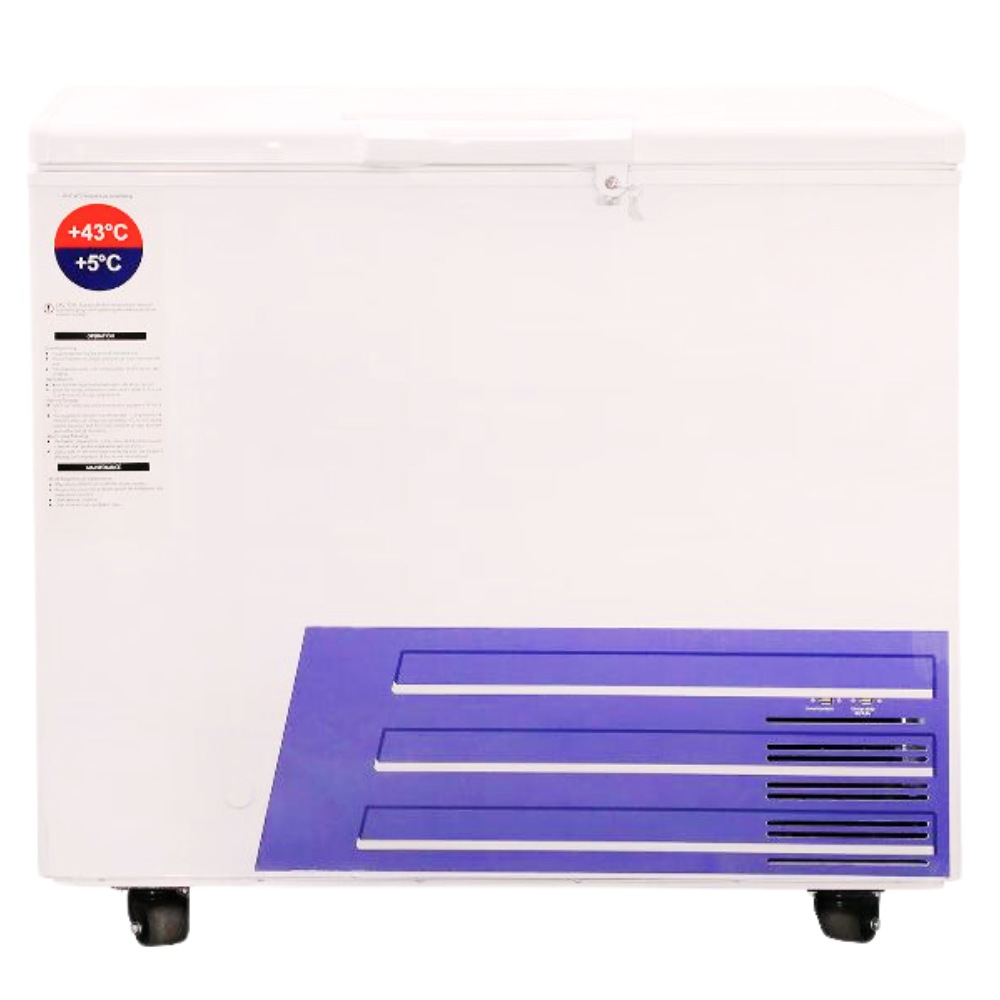

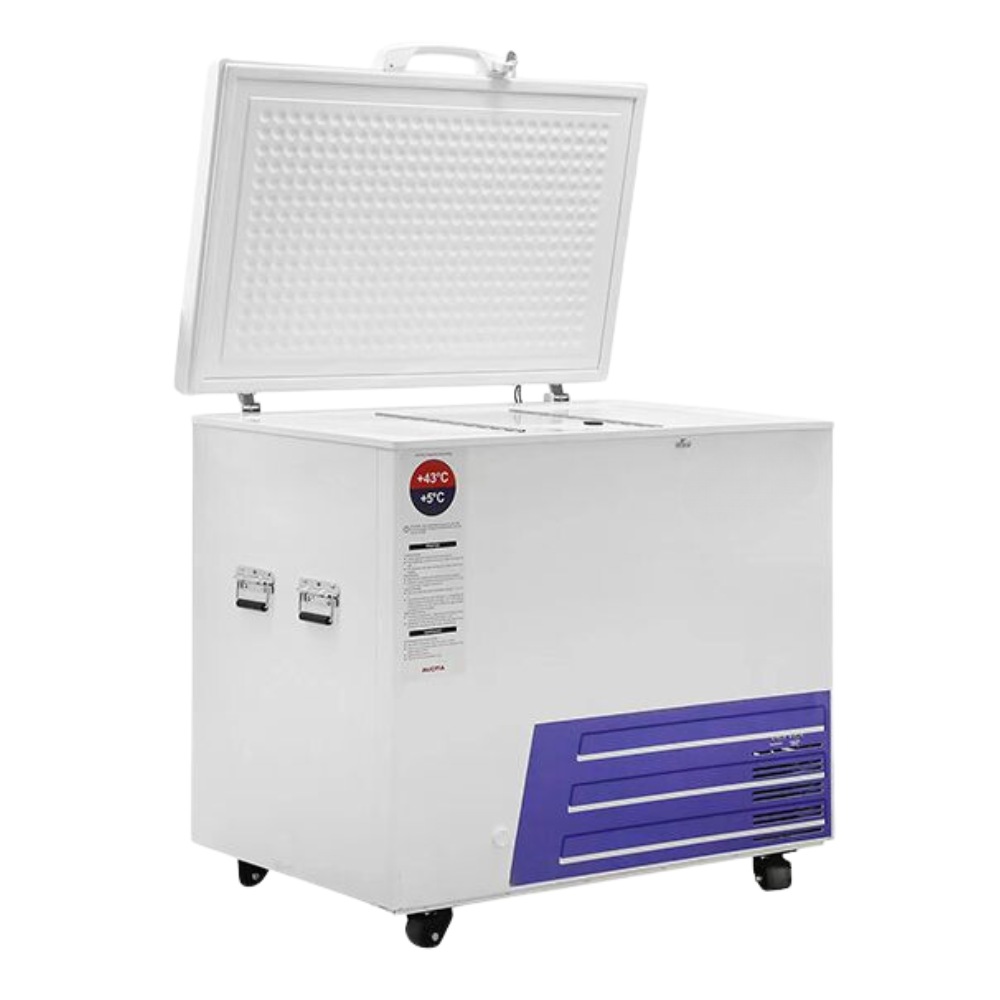

Solar vaccine refrigerator and freezer is used in vaccine storage, medicines and ice packs, suitable for hospitals, CDC, and scientific research institutions, etc.
Advantages
Solar direct drive, green and environmental protection.
Microcomputer control, solar temperature display, resolution is 0.1℃.
30 days temperature record.
Wide climate design, suitable for 5~43℃ ambient temperature.
Over 180 hours of holdover at 43℃ ambient temperature.
Safety control system
Multiple alarm functions: high and low temperature alarm, sensor malfunction alarm , low-battery alarm.
Two alarm modes: Sound buzzer alarm, digital flashing alarm.
Humanized design
Safety door lock design to prevent arbitrary opening.
USB charging function.
Aluminum inner tank design, a drainage hole at the bottom, easy to clean.
With baskets, easy to use.
Low noise.
Product characteristic curve
Specifications
| Model | CRF10-S97 | |
|
Technical Data |
Type | Chest Type |
| Vaccine Gross Capacity | 59L | |
| Vaccine Storage Capacity | 48L | |
| Freezer Gross Capacity | 38L | |
| Holdover Time | 180h | |
| Water-pack Freezing Capacity | 2kg/24h | |
| Water-pack Storage Capacity | 10kg | |
| Cooling Type | Direct Cooling | |
| Door | Foaming Door | |
| Refrigerant | R290 | |
|
Temperature Control |
Vaccine Working Temperature | 2~8℃ |
| Freezer Working Temperature | ≤-10℃ | |
| Ambient Temperature | 5℃~43℃ | |
| Controller | Microprocessor | |
| Temperature setting Accuracy | 0.1 | |
| Display | LED Digital Display | |
|
Electrical Data |
Voltage | DC 18-28V |
| Power | 190W | |
| Current | 8A | |
| Power Consumption (Stable Running) | 1.7kW·h/24h | |
| Power Consumption (Cool Down Test) | 2kW·h/24h | |
| Dimensions | Exterior Dimension(W*D*H) | 1050*750*975mm |
| Package Dimension(W*D*H) | 1127*781*1075mm | |
| Weight | Net Weight | 100kg |
| Gross Weight | 130kg | |
|
Functions |
High /Low Alarm Function | Yes |
| Sensor Error Alarm | Yes | |
| Low Battery Alarm | Yes | |
| Freeze-Protection Classification | A | |
| Data Interface | USB | |
| Charging Interface | 5V | |
| Accessories | Vaccine Basket Qty. | 2 |
