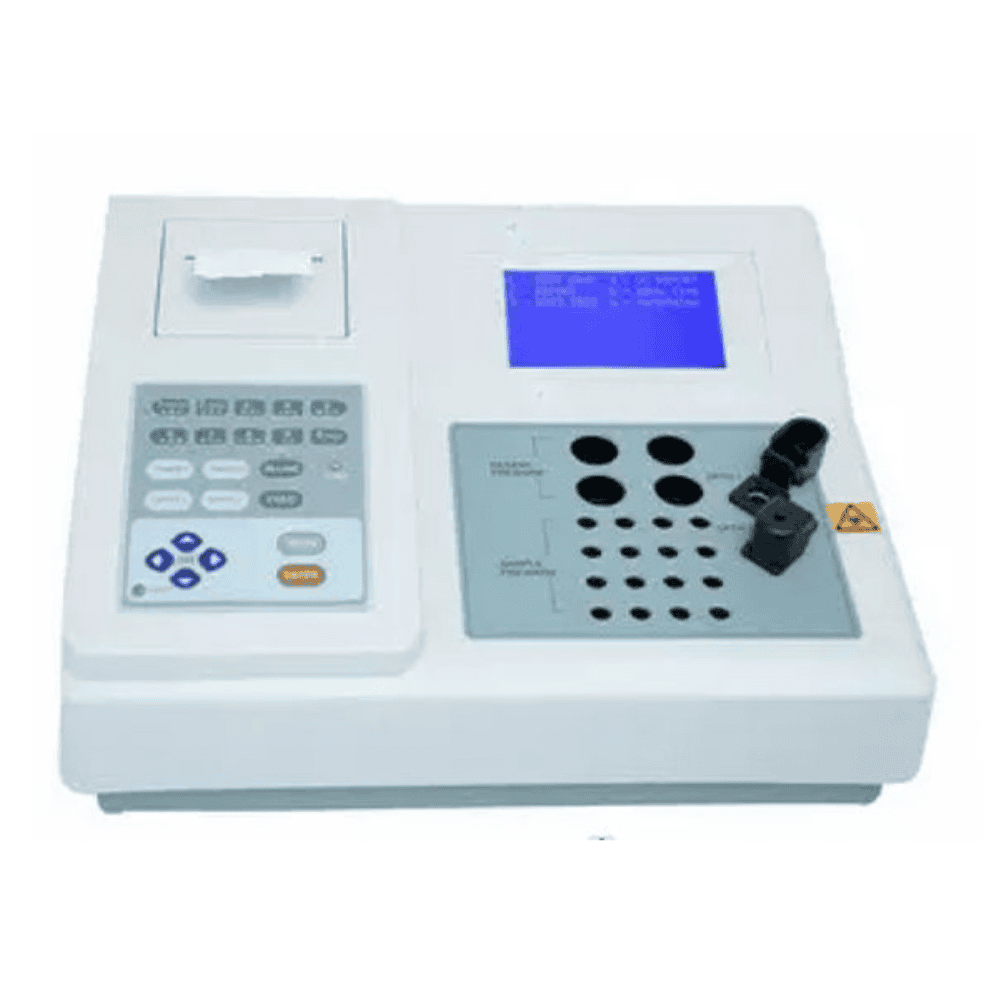

Name: Semi-Auto Coagulation Analyzer, CA-BCA-SA-2-16S
SKU: CA-BCA-SA-2-16S
Availability: InStock

Description

Coagulation analyzer is a routine testing medical device that measures the content of various components in human blood, quantifies the results of biochemical analysis, and provides reliable digital basis for clinical diagnosis of various diseases of patients.

Features

Advanced scattered light principle and percentage analysis ensure accurate results.
Low reagent consumption less than 20μL, open reagent.
Special testing cup location system, adding sample bracket
Optional PT Derived method for testing fibrinogen, decease the dosage of reagent
Advanced optical light matching system ensure precision result.
240*128 large LCD display.
Memory for 10,000 testing result
Internal thermal-sensitive printer

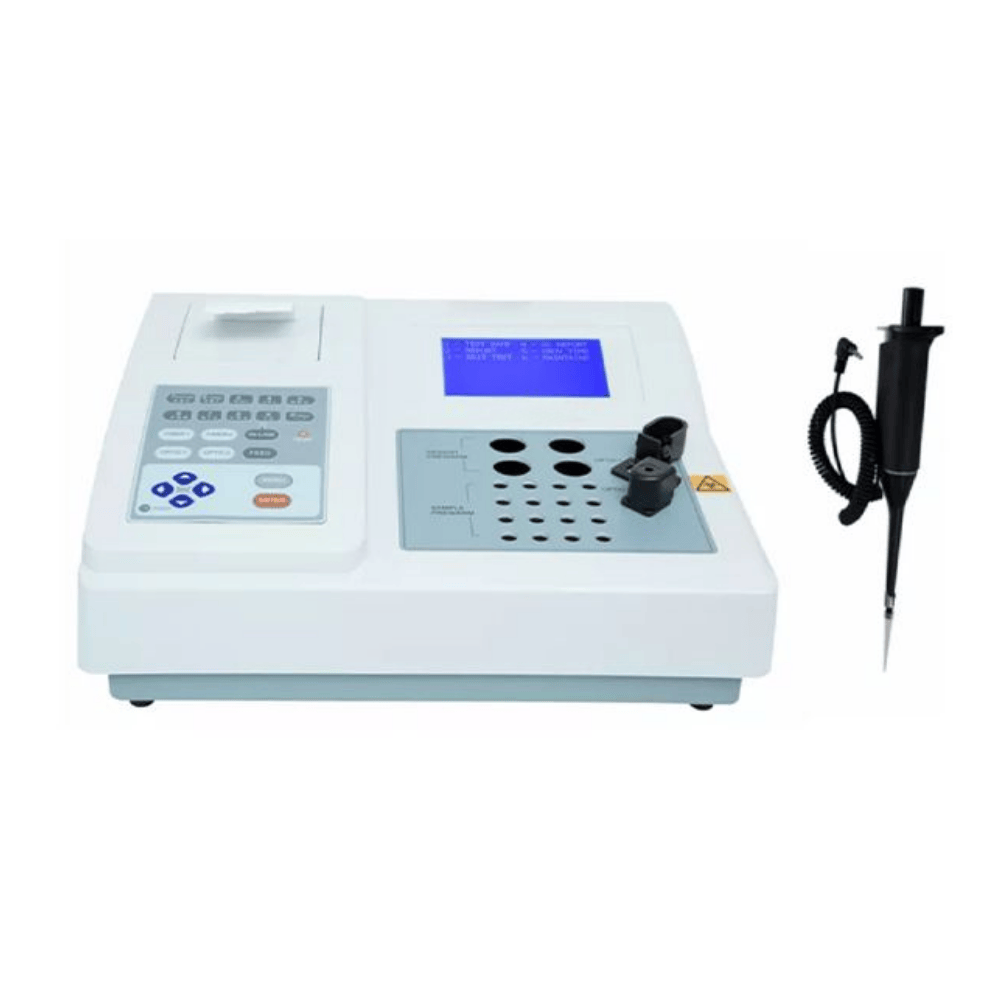

Electronically-linked pipette optional.
Perform all routine tests such as PT. APTT. TT Fibrinogen and clotting factors
RS232 interface, PC connecting for management software

Specifications

Model	CA-BCA-SA-2-16S
Testing channels	2 channel; 2 different parameters analysis in the same time
Sample pre-warming position	16 positions
Reagent pre-warming position	4 positions
Software timer	2
Test wavelength	470nm
Sample consumption	20μL-40μL
Reagent consumption	20μL-40μL
Temp control precision	37±0.3℃
Repeatability	CV < 2%
Coincidence indicator	≤3%
Memory	10000 test result
Notation of Result	S, %, PTR, INR, g/L
Operation language	English
Electricity	220VAC±15% 50-60Hz
Dimensions(LWH)	380320230mm
Packing dimensions(LWH)	500460290mm
Working environment	Temperature: 15℃-30℃; Humidity≤90%
Net weight	6.5kg
Gross weight	8.5kg
