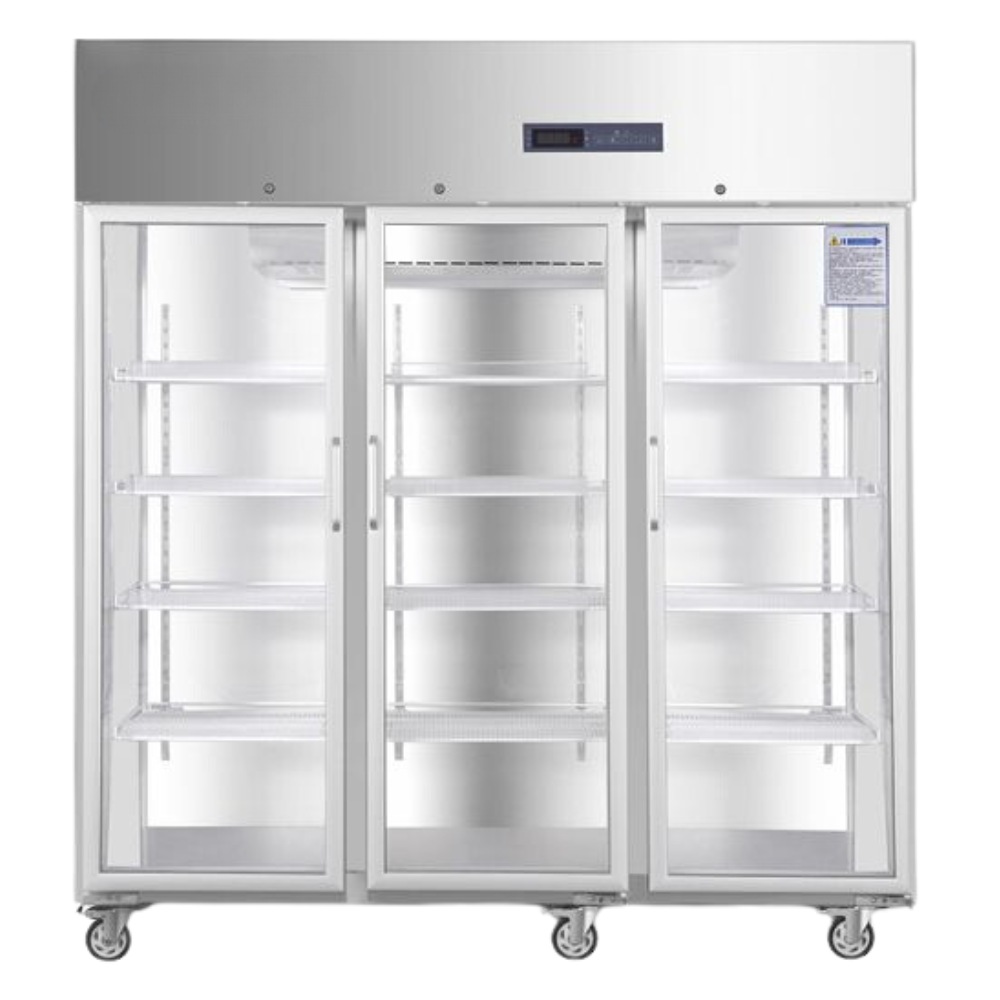

2~8℃ Three Door Laboratory Refrigerator

1 customer review

  1. Capacity: 1500L
  2. Cooling method: Forced Air Cooling System
  3. Defrost: Auto
  4. Refrigerant: R134a
  5. Sensor Type: NTC
  6. Temperature controller: Microprocessor
SKU: CA-LR5-1500 Categories:

Description

Laboratory Refrigerators are designed with special features and options for use in the laboratory, Increase your laboratory storage space and keep special samples in their due temperatures.


Reliability and Key Features

  • High efficiency specially compressor with known field proven reliability.
  • Permanently lubricated cooling fan for safety and longevity.
  • Forced-air cooling with optimized air distribution system designed.
  • To achieve maximum temperature uniformity and stability.
  • Optimized refrigeration system design for more effective cooling and speedy recovery.
  • Temperature variation within ±3ºC.
  • Adjustable temperature range 2-8ºC.
  • Microprocessor control digital display, and temperature adjustment with an increment of 0.1ºC.
  • Large digital display screen.

Characteristic Function

  • Safety door lock design to avoid door ajar.
  • Big digital screen display for easy observation.
  • Optional testing hole.
  • Adjustable shelves.
  • Inner light design for a clear display.

Safety

  • Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
  • Capable of alerting failures due to high and low temperature sensor error, door ajar, power failure and low battery.

Forced Air-cooling System

  • Advanced forced cooing system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced air cooling system to assure no-frost inside.

Ergonomic Design

  • Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
  • Safety lock to prevent unauthorized access.
  • Caster design and leveling legs LED Interior light.

Specifications

 ModelPR5-660
SpecificationsShelf/drawer  Shelves/10
Cooling methodForced Air Cooling System
DefrostAuto
RefrigerantR290
Power consumption(kWh/24h)5.8
Noisedb)52
Ambient temperature(℃)10~32℃
Temperature range(℃)2~8℃
Cooling systemCompressor brand/QTYChina Brand/1
Sensor TypeNTC
Temperature controllerMicroprocessor
DisplayDigital display
PowerVoltage/frequency(V/Hz)220/50Hz
Power(W)403W
Current(A)2.39
MaterialInside materialColor sprayed steel
Outside materialColor sprayed steel
InsulationPURF
SizeCapacity(L/cu.ft)656/23.16
NW./GW.kg)166/184
Exterior size(W×D×H)(mm)1240×630×1895
Interior size(W×D×H)(mm)1100×454×1325
Package size(W×D×H)(mm)1280*670*1950
CBM1.90
20GP/40GP/40HQ12/27/27
AlarmHigh/low temperatureY
Power failureY
Thermostat failureY
Backup battery failure alarm/
Condenser fault alarm/
Ambient temperature/
Voltage abnormality alarm/
Door ajarY
System abnormal alarm/
Power failure backup system(alarm)8h
AccessoriesFoot/
CastorY
Outer door/Type2/Heating glass door with automatic rebound
Door Lock2
Test hole QTY/diameter1/25mm
LampLED
USB portOptional
Temperature recorderOptional chart recoder
Remote alarm portY
RS232/485 portOptional
